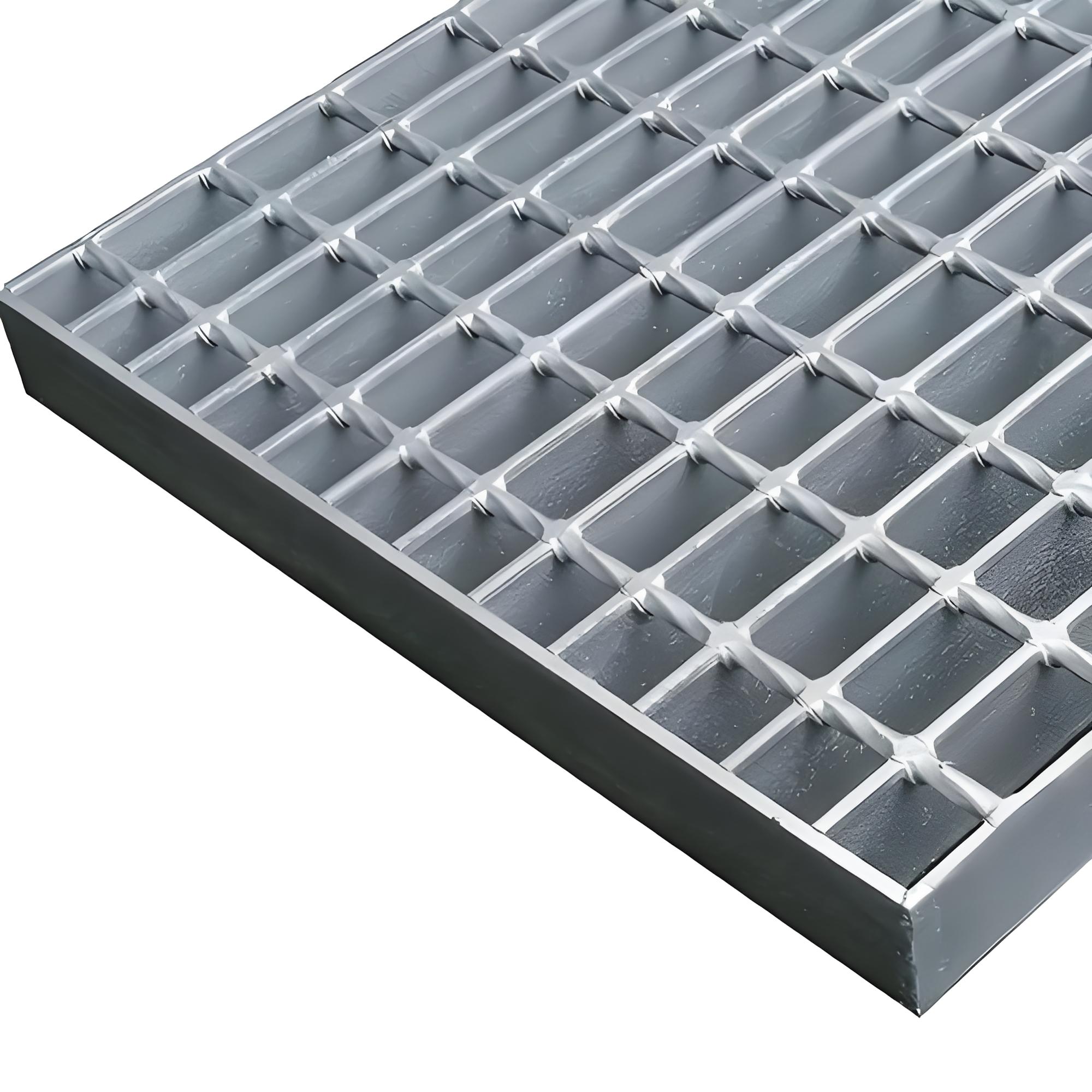

Smooth 19-W-4 steel grating is a plain-surface welded steel bar grating commonly used for industrial flooring, walkways, mezzanines, platforms, catwal…
Smooth 19-W-4 steel grating is a plain-surface welded steel bar grating commonly used for industrial flooring, walkways, mezzanines, platforms, catwalks, drainage covers, trench covers, stair access areas, and general maintenance floors. The 19-W-4 specification means the bearing bars are spaced at 19/16 inch centers, the grating is welded construction, and the cross bars are spaced at 4 inch centers. The word smooth means the bearing bars have a plain top surface instead of serrated notches. This makes smooth 19-W-4 steel grating suitable for many dry or general industrial environments where a stable, economical, easy-to-clean, open flooring surface is required. For outdoor, wet, oily, or high-slip-risk areas, buyers should compare smooth grating with serrated 19-W-4 steel grating before confirming the final specification.
Smooth 19-W-4 steel grating is one of the most widely used welded steel grating types for industrial projects because it provides a practical balance of strength, open area, drainage, ventilation, walking comfort, fabrication flexibility, and cost. It is often selected for factory walkways, equipment platforms, mezzanine floors, maintenance catwalks, drainage covers, trench covers, and general access flooring. Compared with solid steel plate, smooth steel grating is lighter, more open, easier for water and debris to pass through, and often more economical for large flooring areas.
The smooth top surface gives the grating a clean and simple walking surface. It is suitable for many indoor industrial areas, dry platforms, mechanical access zones, warehouse walkways, maintenance floors, and drainage covers where slip risk is not severe. Because the bearing bars do not have serrated notches, smooth 19-W-4 steel grating is also easier to clean than serrated grating in many conditions. Dust, mud, and process residue are less likely to remain trapped on the top of the bearing bar.
However, smooth surface does not mean every project should use it automatically. If the grating will be installed outdoors, on stairs, in wet process areas, near oils, in washing zones, or in areas where workers frequently walk with slippery footwear, serrated grating may be safer. Smooth 19-W-4 steel grating is best selected when the project environment, traffic condition, and safety requirement match the surface design.
| Product Name | Smooth 19-W-4 Steel Grating |
| Grating Type | Plain-surface welded steel bar grating |
| Bearing Bar Spacing | 19/16 inch center-to-center, approximately 1-3/16 inch |
| Cross Bar Spacing | 4 inch center-to-center |
| Surface Type | Smooth plain bearing bar surface |
| Common Materials | Carbon steel, hot-dip galvanized steel, stainless steel |
| Main Applications | Industrial flooring, walkways, mezzanines, platforms, catwalks, trench covers, drainage covers |
The 19-W-4 code is an important specification for steel bar grating. It describes the bearing bar spacing, construction type, and cross bar spacing. When buyers request smooth 19-W-4 steel grating, they are usually asking for a welded steel grating panel with 19/16 inch bearing bar spacing, 4 inch cross bar spacing, and plain top bearing bars.
The number 19 refers to the spacing of the bearing bars. In 19-W-4 steel grating, the bearing bars are spaced at 19/16 inch centers. This is approximately 1-3/16 inch center-to-center. The bearing bars are the main load-carrying bars, so their spacing affects open area, walking support, drainage performance, load distribution, and product weight.
This spacing is commonly used in industrial flooring and walkway applications because it provides enough open area for drainage and ventilation while still offering a practical walking surface. The actual clear opening between bars depends on the bearing bar thickness. Thicker bearing bars reduce the clear gap, while thinner bars increase it.
The letter W means welded construction. In welded steel grating, the cross bars are welded to the bearing bars to form a rigid panel. Welded construction is widely used for industrial steel grating because it is strong, stable, economical, and suitable for repeated panel production. Smooth 19-W-4 steel grating is usually made by welding cross bars to plain-top bearing bars.
The number 4 refers to cross bar spacing. In 19-W-4 grating, the cross bars are spaced at 4 inch centers. Cross bars help hold the bearing bars in position and improve panel stability. They are not the main load-carrying members, but they help maintain the shape, alignment, and handling strength of the grating panel.
19-W-4 describes the spacing and construction, but it does not describe whether the surface is smooth or serrated. This detail must be specified separately. A smooth 19-W-4 steel grating panel has plain bearing bars. A serrated 19-W-4 steel grating panel has notched bearing bars for better slip resistance. Both may have the same spacing, but their surface performance and best applications are different.
| Specification Part | Meaning | Practical Importance |
| 19 | Bearing bars at 19/16 inch centers | Controls main spacing, open area, walking support, and drainage |
| W | Welded construction | Indicates cross bars are welded to bearing bars |
| 4 | Cross bars at 4 inch centers | Provides panel stability and standard welded layout |
| Smooth | Plain top bearing bar surface | Suitable for dry, general, and easy-clean industrial applications |
| Bearing bar size | Height and thickness of the main bars | Determines load capacity, deflection, weight, and price |
The smooth surface design is the main feature that separates smooth 19-W-4 steel grating from serrated 19-W-4 steel grating. In smooth grating, the top edge of the bearing bar is plain and continuous. There are no notches or teeth on the walking surface. This creates a cleaner appearance and a more straightforward grating structure.
The bearing bars in smooth 19-W-4 grating have a flat, plain upper edge. This surface is suitable for many standard industrial walking areas. Workers can walk across the grating comfortably, and the surface is less aggressive than serrated grating. For dry platforms, indoor maintenance walkways, mezzanines, and equipment access floors, smooth bearing bars are often enough.
Smooth steel grating is often easier to clean than serrated grating because there are no notches on the bearing bar top. In dry factories, warehouses, mezzanine floors, and general industrial areas, dust and small debris can pass through the open grating or be cleaned from the surface more easily. This can be useful where regular sweeping, air cleaning, or wash-down is required but slip risk is not high.
Smooth bearing bars are simpler to produce than serrated bearing bars. This can make smooth 19-W-4 steel grating more economical than serrated grating when other specifications are the same. For large industrial flooring orders, the price difference may become important. However, cost should not be the only reason to select smooth surface. The site’s slip condition should always be considered.
Smooth grating provides a stable walking surface in many conditions, but it does not provide the same traction as serrated grating in wet, oily, muddy, or sloped areas. If the grating is used outdoors, near drainage channels, on stair treads, or in process areas with water or oil, serrated surface may be safer. Smooth surface should be selected where the environment supports its use.
| Smooth Surface Feature | Benefit | Selection Note |
| Plain bearing bar top | Simple and clean walking surface | Suitable for general dry industrial areas |
| No serrated notches | Easier cleaning and lower surface residue | May offer less grip in wet or oily conditions |
| Standard welded construction | Economical and widely available | Good for large flooring and walkway projects |
| Open grating structure | Supports drainage and ventilation | Opening size should be checked for small wheels or public access |
Smooth 19-W-4 steel grating is normally produced as welded bar grating. The bearing bars are arranged in one direction, and cross bars are welded across them at 4 inch centers. This welded grid structure creates a strong and stable panel that can be used for many industrial access applications.
Bearing bars are the primary load-carrying members in smooth 19-W-4 steel grating. They must span across the support opening. In a walkway or platform, the bearing bars should span from support beam to support beam. In a trench cover or drainage cover, the bearing bars should span across the trench width. If the bearing bars are installed in the wrong direction, the grating may not support the expected load.
Cross bars are welded to the bearing bars and help maintain spacing and alignment. In 19-W-4 grating, cross bars are spaced at 4 inch centers. Their role is to stabilize the bearing bars, improve panel rigidity, and help maintain the grating shape during handling and installation. Good welding quality is important because weak welds can cause loose bars and reduce service life.
Welded smooth steel grating is widely used in industrial projects because it is strong, predictable, and cost-effective. It can be made in standard panels or custom fabricated into cut-to-size panels, banded panels, stair treads, trench covers, and platform sections. Welded construction is especially practical for carbon steel grating and hot-dip galvanized steel grating.
For painted or hot-dip galvanized smooth 19-W-4 steel grating, cutting, banding, notching, and welding should ideally be completed before final surface treatment. This helps protect fabricated edges and weld areas. If the grating is cut after galvanizing, the exposed cut surfaces may need zinc-rich repair coating to reduce corrosion risk.
| Structural Element | Function | Important Detail |
| Bearing bar | Carries the main load | Must span across the support opening |
| Cross bar | Stabilizes bearing bars | Weld quality affects panel rigidity |
| Welded joint | Connects bearing bars and cross bars | Should be strong and consistent |
| Banding bar | Closes panel edges | Recommended for cut panels and trench covers |
| Surface finish | Protects steel or improves appearance | Should match indoor, outdoor, or corrosive environment |
The spacing of smooth 19-W-4 steel grating is one of the main reasons it is widely used. It provides a standard industrial open-grid pattern that works well for walkways, platforms, catwalks, mezzanines, drainage covers, and general access flooring.
The bearing bars in 19-W-4 steel grating are spaced at 19/16 inch centers. This spacing gives the grating a practical open area for drainage and ventilation. It also creates a walking surface suitable for many industrial areas. Because smooth 19-W-4 grating uses plain bearing bars, the top surface is simple and continuous.
The cross bars are spaced at 4 inch centers. This spacing helps keep the panel stable without making the grating too heavy or expensive. Cross bars maintain bearing bar alignment and support panel handling strength. For standard-duty industrial applications, 4 inch cross bar spacing is a common and economical choice.
The open area of 19-W-4 grating helps water, dust, air, light, and small debris pass through the surface. This is useful for elevated walkways, drainage areas, mezzanines, and industrial platforms. However, opening size should be reviewed if the grating is used in areas with small wheels, public pedestrian traffic, high-heel traffic, or special safety requirements.
Although 19-W-4 describes the spacing pattern, it does not define the full load capacity. Load capacity depends on bearing bar size, material, clear span, support condition, and load type. A smooth 19-W-4 grating panel with small bearing bars cannot carry the same load as one with larger bearing bars, even if the spacing is the same.
| Spacing Detail | Value | Effect |
| Bearing bar spacing | 19/16 inch center-to-center | Controls main opening and walking support |
| Approximate bearing spacing | About 1-3/16 inch center-to-center | Common standard-duty industrial pattern |
| Cross bar spacing | 4 inch center-to-center | Provides panel stability and welded construction layout |
| Smooth top surface | Plain bearing bar top | Provides clean surface for dry or general industrial use |
| Open structure | Depends on bar size and spacing | Supports drainage, ventilation, visibility, and cleaning |
19-W-4 defines the spacing, but bearing bar size determines much of the strength and stiffness. Smooth 19-W-4 steel grating can be made with different bearing bar heights and thicknesses depending on the application. Buyers should not order only by spacing code if the span and load are important.
Bearing bar height affects bending resistance. A taller bearing bar can usually span a longer distance and carry more load than a shorter bearing bar with the same thickness. For short-span walkways and light drainage covers, smaller bearing bars may be enough. For platforms, mezzanines, catwalks, and longer spans, taller bearing bars may be required.
Bearing bar thickness affects durability, strength, weld area, weight, and price. Thicker bars provide more material and stronger load performance, but they also increase cost. For standard-duty smooth 19-W-4 steel grating, common thicknesses include 1/8 inch and 3/16 inch. Heavier thicknesses may be selected for more demanding applications.
Common bearing bar sizes for smooth 19-W-4 steel grating include 1 inch x 1/8 inch, 1 inch x 3/16 inch, 1-1/4 inch x 1/8 inch, 1-1/4 inch x 3/16 inch, 1-1/2 inch x 1/8 inch, and 1-1/2 inch x 3/16 inch. Heavier sizes may be used for longer spans or higher loads. The correct size should be selected according to load, span, support condition, and deflection requirement.
| Bearing Bar Size | Typical Use | Selection Note |
| 1 inch x 1/8 inch | Light-duty walkways, short spans, general drainage covers | Economical option for lighter use |
| 1 inch x 3/16 inch | General industrial access areas | Better durability than 1/8 inch thickness |
| 1-1/4 inch x 1/8 inch | Walkways, catwalks, mezzanine areas | Improved span performance with moderate weight |
| 1-1/4 inch x 3/16 inch | Stronger standard-duty platforms and flooring | Good balance of strength and cost |
| 1-1/2 inch x 1/8 inch | Longer span platforms and access floors | Taller bar helps control deflection |
| 1-1/2 inch x 3/16 inch | Heavier platforms, trench covers, and industrial floors | Suitable when higher strength is required |
| 2 inch or heavier | Long spans or more demanding load conditions | Should be selected after span and load review |
Load capacity selection for smooth 19-W-4 steel grating must be based on the clear span, bearing bar size, material, support condition, and load type. Smooth surface only describes the top bearing bar profile. It does not determine structural capacity. A grating panel can be smooth and still be light-duty, standard-duty, or stronger depending on bearing bar size.
Industrial platforms may carry workers, tools, maintenance parts, and occasional equipment. For platform applications, the grating should be selected according to support beam spacing. Bearing bars must span between supports. If the support span is long, a larger bearing bar is required to reduce deflection and maintain a stable walking surface.
Catwalks are often narrow access paths around equipment, tanks, conveyors, pipe racks, and maintenance areas. Smooth 19-W-4 steel grating is suitable for many dry catwalks. For outdoor or wet catwalks, serrated surface may be safer. Banding and fixing clips are important for catwalk panels because loose panels can create safety risks.
When smooth 19-W-4 steel grating is used as drainage covers or trench covers, the clear trench opening becomes the span. A pedestrian drainage cover may use a smaller bearing bar, while a forklift or vehicle crossing requires stronger bearing bars, frame support, and secure fixing. Smooth surface may be suitable for dry or low-slip drainage areas, but serrated grating should be considered for wet drainage channels.
Wheel loads from carts, pallet jacks, forklifts, and vehicles can be more demanding than walking loads because the pressure is concentrated. If smooth 19-W-4 steel grating is used in areas with wheels, the supplier should check wheel size, wheel load, traffic direction, support span, and panel fixing. In some cases, a different grating spacing or heavier bearing bar may be needed.
| Application | Typical Load | Design Focus | Buyer Should Confirm |
| Walkway | Workers and light tools | Walking surface, span, fixing | Support spacing and indoor or outdoor use |
| Mezzanine floor | Workers, maintenance loads, stored items in some cases | Deflection control and support beam layout | Live load, beam spacing, panel direction |
| Catwalk | Pedestrian access and maintenance traffic | Panel stability, banding, clips | Width, span, surface condition |
| Drainage cover | Water flow plus pedestrian or cart traffic | Open area, support frame, corrosion protection | Trench width, load type, water exposure |
| Trench cover | Pedestrians, carts, forklifts, or vehicles | Bearing bar size and frame support | Clear opening, wheel load, removable or fixed installation |
| Industrial floor | Workers, tools, equipment access | Load capacity, surface finish, safety | Application area and maximum load condition |
Smooth 19-W-4 steel grating and serrated 19-W-4 steel grating may have the same bearing bar spacing and cross bar spacing, but their top surface performance is different. Smooth grating uses plain bearing bars. Serrated grating uses notched bearing bars to improve traction. Buyers should choose between them according to the working environment and safety requirement.
Smooth 19-W-4 steel grating is economical, easy to clean, widely available, and suitable for many general industrial areas. It is often selected for dry indoor platforms, mezzanine floors, walkways, access panels, catwalks, and drainage covers where slip risk is controlled. Its plain surface also gives a neat and simple appearance.
The main limitation of smooth grating is lower slip resistance compared with serrated grating. In wet, oily, muddy, icy, or sloped areas, workers may need better traction. Smooth grating can still be used in many outdoor applications if conditions are controlled, but serrated surface is often safer where slip risk is higher.
Serrated 19-W-4 steel grating has notches along the bearing bar top to improve grip. It is commonly used for outdoor walkways, wet platforms, industrial stairs, drainage zones, washing areas, and oily floors. The additional traction can improve worker safety in difficult environments.
Choose smooth 19-W-4 steel grating for dry indoor areas, general industrial flooring, mezzanines, equipment platforms, and areas where easy cleaning is important. Choose serrated 19-W-4 steel grating for wet, outdoor, oily, sloped, or stair applications. If the project has both dry and wet zones, buyers may use smooth grating in general areas and serrated grating in higher-risk zones.
| Comparison Item | Smooth 19-W-4 Steel Grating | Serrated 19-W-4 Steel Grating |
| Top surface | Plain bearing bar surface | Notched bearing bar surface |
| Slip resistance | Suitable for dry or controlled areas | Better for wet, oily, or outdoor areas |
| Cleaning | Easier to clean | Notches may hold more residue |
| Cost | Usually more economical | Usually slightly higher |
| Best use | Indoor flooring, dry walkways, mezzanines, access panels | Outdoor walkways, stairs, drainage areas, wet industrial floors |
| Safety note | Check slip conditions before use | Recommended when traction is a priority |
Smooth 19-W-4 steel grating can be made from carbon steel, hot-dip galvanized steel, or stainless steel. The best material depends on project environment, corrosion resistance requirement, budget, appearance, and service life expectation.
Carbon steel is strong, economical, and widely used for welded steel grating. Smooth carbon steel 19-W-4 grating is suitable for many indoor industrial applications, dry platforms, mezzanines, equipment access floors, and general walkways. It can be supplied as raw black steel, painted steel, or hot-dip galvanized steel.
Raw carbon steel has the lowest initial cost, but it can rust if exposed to moisture. If the grating is used indoors in dry conditions, raw or painted carbon steel may be acceptable. For outdoor or humid environments, hot-dip galvanizing is usually recommended.
Hot-dip galvanized smooth 19-W-4 grating is made from carbon steel and galvanized after fabrication. The zinc coating improves corrosion resistance and makes the product suitable for many outdoor industrial projects. It is commonly used for outdoor walkways, platforms, catwalks, drainage covers, trench covers, and utility access areas.
Stainless steel smooth 19-W-4 grating is used when corrosion resistance, hygiene, or clean appearance is important. Common grades include 304, 316, and 316L. Stainless steel grating is suitable for food plants, chemical areas, marine sites, wastewater facilities, clean drainage systems, and humid environments where rust contamination is not acceptable.
For dry indoor industrial flooring, carbon steel may be the most economical choice. For outdoor or wet environments, hot-dip galvanized steel provides good value. For corrosive, hygienic, coastal, or chemical environments, stainless steel may be the better long-term choice. Buyers should describe the environment clearly before requesting a quotation.
| Material Option | Main Advantage | Typical Use | Selection Note |
| Raw carbon steel | Lowest initial cost | Dry indoor flooring and temporary use | Not recommended for wet or outdoor use without protection |
| Painted carbon steel | Basic protection and color option | Indoor or low-corrosion environments | Paint may wear under traffic or moisture |
| Hot-dip galvanized steel | Good corrosion resistance with economical strength | Outdoor walkways, platforms, trench covers, drainage covers | Common choice for general outdoor industrial projects |
| Stainless steel 304 | Good general corrosion resistance | Food plants, humid indoor areas, clean drainage | Suitable where chloride exposure is not severe |
| Stainless steel 316 | Better chloride and chemical resistance | Coastal, marine, chemical, wastewater applications | Higher cost but better corrosion performance |
Hot-dip galvanized smooth 19-W-4 grating is commonly used for outdoor industrial projects because it provides a practical combination of strength, drainage, ventilation, and corrosion protection. Outdoor grating is often exposed to rain, humidity, dust, mud, cleaning water, and general industrial air. Hot-dip galvanizing helps protect the carbon steel surface from rust.
Carbon steel is strong and economical, but it needs protection in outdoor or wet environments. Hot-dip galvanizing covers the steel with a zinc coating after fabrication. This helps protect the bearing bars, cross bars, welded joints, banding, and many cut surfaces. For outdoor grating, galvanizing is often more durable than basic painting.
For outdoor walkways and platforms, galvanized smooth 19-W-4 grating allows rainwater to pass through the surface and reduces water accumulation. It is suitable for maintenance platforms, pipe rack walkways, factory access areas, equipment platforms, and catwalks. If the area becomes slippery from rain, mud, or oil, serrated galvanized grating may be a safer alternative.
Galvanized smooth 19-W-4 grating can be used as drainage covers and trench covers in many outdoor areas. The open grating surface allows water to enter the trench, while galvanizing improves corrosion resistance. For pedestrian drainage channels, smooth surface may be suitable. For wet or high-slip-risk drainage areas, serrated surface should be considered.
Good galvanizing quality depends on proper fabrication and surface preparation. Cutting, banding, notching, and welding should ideally be completed before galvanizing. After galvanizing, the supplier should check coating coverage, surface roughness, sharp zinc points, flatness, and dimensions. Poor galvanizing quality can create handling problems and reduce corrosion protection.
| Outdoor Application | Why Galvanized Smooth 19-W-4 Grating Is Used | Important Note |
| Outdoor walkway | Open surface drains rainwater and zinc coating protects steel | Consider serrated surface if slip risk is high |
| Industrial platform | Strong flooring with corrosion resistance | Select bearing bar size by span and load |
| Catwalk | Lightweight access surface for maintenance | Use fixing clips and edge banding |
| Drainage cover | Allows water flow into channel | Confirm trench span and support frame |
| Trench cover | Removable, open, and corrosion-resistant cover | Check load condition and panel flatness |
Smooth 19-W-4 steel grating can be supplied as standard panels or fabricated panels according to drawings. Standard panels are useful for distributors, contractors, and stock supply. Custom fabricated panels are suitable for projects that need ready-to-install walkway panels, platform floors, trench covers, stair treads, or drainage covers.
Standard grating panels are often produced in larger sizes and cut later according to project needs. This option is practical for buyers who have local fabrication capacity or need stock material. Standard panels may offer better availability and lower processing cost, but the buyer must still confirm bearing bar size, surface type, material, finish, and panel direction.
Custom cutting allows the manufacturer to supply panels that match the project drawings. This is useful for platforms, walkways, machine areas, trench covers, and mezzanine floors. Custom panels can be cut to length and width, banded around the edges, notched around obstacles, and prepared with clips or frames.
Industrial projects often include pipes, columns, walls, equipment bases, drains, and structural supports. Smooth 19-W-4 steel grating can be notched or shaped to fit these areas. Drawings should show panel dimensions, bearing bar direction, support beam layout, notches, cut-outs, frames, and installation sequence. Clear drawings reduce site cutting and installation errors.
Panel size should be selected according to support layout and handling method. Large panels may reduce joints but can be difficult to move and install. Smaller panels are easier to handle and remove but create more joints. For trench covers and maintenance access panels, manageable weight is important because panels may need to be lifted frequently.
| Panel Option | Main Benefit | Best Use |
| Standard full panel | Economical for stock and local fabrication | Distributors, contractors, large industrial flooring |
| Cut-to-size panel | Ready for installation | Walkways, platforms, mezzanines, trench covers |
| Banded panel | Safer edges and stronger perimeter | Removable covers, catwalks, walkway panels, stair treads |
| Notched panel | Fits around obstacles | Pipes, columns, posts, machine bases |
| Framed panel | Improves seating and stability | Drainage covers, trench covers, utility channels |
| Stair tread | Prepared with end plates and nosing | Industrial stairs and access platforms |
Fabrication details are important because smooth 19-W-4 steel grating is often used in real construction environments, not only as stock panels. Edge banding, notching, frames, clips, and installation preparation can make the grating easier to install, safer to use, and more durable over time.
Edge banding is the process of welding a flat bar around the grating panel edge. It closes open bearing bar ends, improves panel appearance, strengthens the perimeter, and makes handling safer. Banded smooth 19-W-4 steel grating is commonly used for walkways, catwalks, trench covers, drainage covers, and stair treads.
Notching allows grating panels to fit around pipes, columns, walls, machine bases, structural posts, and other obstacles. Accurate notching helps reduce site cutting and improves final fit. Notched edges should often be banded to reduce sharp exposed ends and restore perimeter strength.
When smooth 19-W-4 steel grating is used as a trench cover or drainage cover, frames may be required to provide stable support. A frame helps protect concrete edges, improves seating, reduces movement, and makes the cover easier to install. For removable trench covers, the frame and panel clearance should be designed carefully so the panel is easy to remove but does not rattle excessively.
Grating panels used on platforms, walkways, mezzanines, and catwalks should often be secured with clips or fasteners. Fixing clips help prevent movement caused by vibration, foot traffic, wind, or maintenance activity. For removable covers, clips can provide security while still allowing maintenance access.
Smooth 19-W-4 steel grating can be fabricated into stair treads, but serrated surface is more commonly selected for industrial stairs where anti-slip performance is important. If smooth grating is used for stair treads, nosing plates and proper installation should be considered carefully. Outdoor or wet stair areas usually require serrated grating for safer use.
| Fabrication Detail | Purpose | Common Application |
| Edge banding | Closes edges and improves strength | Walkways, trench covers, cut panels, stair treads |
| Notching | Fits panels around site obstacles | Pipes, columns, machines, posts |
| Frames | Provides stable support and seating | Drainage covers, trench covers, removable panels |
| Fixing clips | Prevents movement and supports installation | Platforms, catwalks, mezzanines, walkways |
| End plates | Allows stair tread bolting | Industrial stair treads |
| Toe plates | Helps prevent objects from falling from elevated areas | Platforms, walkways, mezzanines |
Smooth 19-W-4 steel grating is used in many industrial applications where an open, stable, economical flooring or covering surface is needed. It is especially suitable for dry or general industrial conditions where extreme anti-slip performance is not the main requirement.
Industrial walkways often use smooth 19-W-4 steel grating because it provides a reliable walking surface while allowing air, light, and small debris to pass through. It can be used around machines, tanks, conveyors, pipe racks, and maintenance areas. For outdoor or wet walkways, galvanized finish and slip-risk review are important.
Mezzanine floors use grating to create elevated working or storage access areas. Smooth 19-W-4 grating can reduce floor weight compared with solid plate and allow light and ventilation between levels. The bearing bar size should be selected according to support beam spacing and load requirement.
Smooth 19-W-4 steel grating is useful for drainage areas because its open structure allows water to pass through. It can be used for drainage covers, floor drains, utility channels, and trench covers. For wet drainage zones where workers frequently walk, serrated grating may be safer. For general drainage covers with low slip risk, smooth grating may be economical and practical.
Industrial floors in factories, workshops, warehouses, and equipment rooms may use smooth grating when drainage, ventilation, visibility, or reduced floor weight is needed. Smooth grating is often selected for access floors around equipment because it is easy to fabricate and maintain.
Catwalks and maintenance platforms benefit from the open structure of smooth 19-W-4 grating. Workers can access equipment while water and debris pass through the surface. Banded edges and fixing clips should be used where panel stability and safety are important.
Smooth 19-W-4 grating can be made into trench covers and removable access panels. The panel should be banded and sized for safe handling. If the cover is exposed to outdoor water, hot-dip galvanizing is recommended. If the trench is in a wet, oily, or high-slip-risk area, serrated grating should be considered.
| Application | Why Smooth 19-W-4 Steel Grating Is Used | Recommended Detail |
| Walkways | Stable open walking surface | Use galvanized finish outdoors |
| Mezzanines | Reduced weight and open floor structure | Select bearing bar size by beam span |
| Drainage areas | Allows water to pass through | Consider serrated surface if wet walking is frequent |
| Industrial floors | Supports access, ventilation, and cleaning | Confirm load and support spacing |
| Catwalks | Open access surface for maintenance | Add banding and fixing clips |
| Trench covers | Removable open cover for channels | Use frame support and correct bearing bar direction |
Quality control is important for smooth 19-W-4 steel grating because it is often used as a walking or load-bearing surface. Poor welding, wrong spacing, warped panels, incorrect dimensions, rough edges, or poor surface treatment can create safety and installation problems. A reliable manufacturer should inspect the grating before shipment.
Welded construction depends on strong and consistent connections between bearing bars and cross bars. Weak welds can cause loose cross bars, unstable panels, or early service problems. Additional welds for banding, frames, stair tread plates, toe plates, and accessories should also be checked.
Flatness is important for walkways, platforms, mezzanines, and trench covers. A warped grating panel can rock on supports, create noise, cause trip hazards, or make installation difficult. Welding and hot-dip galvanizing can both affect flatness, so panels should be checked after fabrication and finishing.
Panel dimensions must match the project drawings or size list. Length, width, diagonal tolerance, bearing bar direction, notching, frame fit, and hole positions should be inspected. For trench covers, incorrect size can create unsafe gaps or prevent installation. For platforms, wrong bearing bar direction can reduce load performance.
Smooth steel grating may be supplied as raw carbon steel, painted steel, hot-dip galvanized steel, or stainless steel. Each finish requires inspection. Raw steel should be free from serious burrs and heavy defects. Painted surfaces should be consistent. Galvanized surfaces should have proper zinc coverage and safe edges. Stainless steel surfaces should be clean and free from contamination.
Steel grating panels are heavy and can be damaged if packed poorly. Export packaging should prevent bending, coating damage, surface scratches, and mixed-size confusion. For custom panels, labels and packing lists are important so installers can find the correct panel quickly on site.
| Quality Control Item | Inspection Focus | Risk if Ignored |
| Welding | Cross bar welds, banding welds, frame welds | Loose bars, weak panels, reduced service life |
| Flatness | Panel levelness after fabrication | Rocking, trip hazard, poor support seating |
| Dimensions | Length, width, diagonal, notches, holes | Incorrect fit and installation delay |
| Spacing | Bearing bar spacing and cross bar spacing | Wrong specification and inconsistent product quality |
| Surface finish | Raw steel, paint, galvanizing, stainless finish | Rust, rough handling, poor appearance, early maintenance |
| Edges | Burrs, sharp corners, banding quality | Handling risk and poor appearance |
| Packaging | Stacking, protection, labels, loading method | Shipping damage and installation confusion |
To get an accurate quotation for smooth 19-W-4 steel grating, buyers should provide complete specification information. A request that only says “smooth 19-W-4 grating price” is usually not enough because the price and suitability depend on material, bearing bar size, panel size, finish, fabrication, load, and quantity.
The buyer should specify smooth 19-W-4 welded steel grating, bearing bar size, material, finish, panel dimensions, and quantity. If the bearing bar size is unknown, the supplier should be given the clear span and load condition so a suitable size can be recommended.
The supplier needs to know whether the grating will be used for walkways, platforms, mezzanines, catwalks, drainage covers, trench covers, stair treads, or industrial floors. The expected load should also be described. Pedestrian traffic, maintenance carts, forklifts, and vehicles require different structural designs.
The buyer should confirm that smooth surface is required. If the area is wet, oily, outdoor, sloped, or used for stairs, the supplier may recommend serrated grating instead. The environment should also be described so the supplier can recommend raw carbon steel, painted steel, hot-dip galvanized steel, or stainless steel.
Custom fabrication requirements should be listed clearly. These may include cutting, banding, notching, frames, toe plates, clips, stair tread end plates, bolt holes, lifting holes, or special packaging. Drawings are the best way to confirm these details.
For export or project orders, the buyer should provide destination, delivery term, packaging requirement, and project schedule. Smooth 19-W-4 steel grating panels may be heavy, so proper packing and loading are important to avoid damage during transportation.
| Quotation Information | Details to Provide |
| Product specification | Smooth 19-W-4 welded steel grating |
| Bearing bar size | For example, 1 inch x 1/8 inch, 1-1/4 inch x 3/16 inch, or selected by span and load |
| Material | Carbon steel, hot-dip galvanized steel, stainless steel 304, stainless steel 316 |
| Finish | Raw black steel, painted, hot-dip galvanized, pickled, passivated, polished |
| Panel size | Width, length, bearing bar direction, and quantity |
| Application | Walkway, platform, mezzanine, drainage cover, trench cover, catwalk, industrial floor |
| Load requirement | Pedestrian, cart, forklift, vehicle, equipment, or special load |
| Clear span | Unsupported distance between supports or trench opening width |
| Fabrication | Cutting, banding, notching, frames, clips, toe plates, stair tread parts |
| Delivery | Quantity, packing method, destination, delivery term, required lead time |
Smooth 19-W-4 steel grating is often ordered for project-based industrial applications, so manufacturing and fabrication support are important. Buyers may need standard panels, cut-to-size walkway panels, mezzanine flooring panels, banded trench covers, framed drainage covers, notched platform panels, or stair tread components. A supplier with fabrication experience can reduce site cutting, improve installation accuracy, and help buyers choose a suitable structure according to span and load.
Anping County Chuansen Silk Screen Products Co., Ltd. supplies smooth 19-W-4 steel grating for industrial flooring, walkways, mezzanines, platforms, catwalks, drainage covers, trench covers, utility access panels, and custom fabrication projects. From a factory perspective, the key is to confirm whether smooth surface is suitable for the working environment before production. If the area is dry and general-duty, smooth grating is often economical and practical. If the area is wet, oily, outdoor, or safety-critical, serrated grating may be recommended.
For carbon steel grating projects, the factory can supply raw, painted, or hot-dip galvanized finish. For stainless steel projects, 304 or 316 material can be selected according to corrosion requirements. For custom projects, panels can be cut, banded, notched, framed, and packed according to drawings. Clear communication about span, load, surface condition, material, finish, and installation method helps reduce mistakes and improves final project performance.
What is smooth 19-W-4 steel grating?
Smooth 19-W-4 steel grating is welded steel bar grating with plain top bearing bars, bearing bars spaced at 19/16 inch centers, and cross bars spaced at 4 inch centers. It is commonly used for industrial flooring, walkways, mezzanines, platforms, catwalks, drainage covers, trench covers, and general access areas. The smooth surface is suitable for many dry or general industrial environments where a simple, economical, and easy-to-clean grating surface is required.
Is smooth grating better than serrated grating?
Smooth grating is better when the project requires easier cleaning, lower cost, and a plain walking surface in dry or controlled environments. Serrated grating is better when slip resistance is more important, such as outdoor walkways, wet floors, oily areas, drainage zones, and stair treads. Smooth 19-W-4 steel grating is suitable for many industrial floors and walkways, but serrated 19-W-4 steel grating should be considered when the surface may become slippery.
Can smooth 19-W-4 grating be galvanized?
Yes, smooth 19-W-4 steel grating can be hot-dip galvanized after fabrication. Hot-dip galvanizing improves corrosion resistance and is commonly used for outdoor walkways, platforms, catwalks, trench covers, drainage covers, and industrial flooring exposed to moisture. Cutting, welding, banding, and notching should ideally be completed before galvanizing so the zinc coating can protect the fabricated surfaces more effectively.
Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.
English English
Arabic
Vietnamese
German
French
