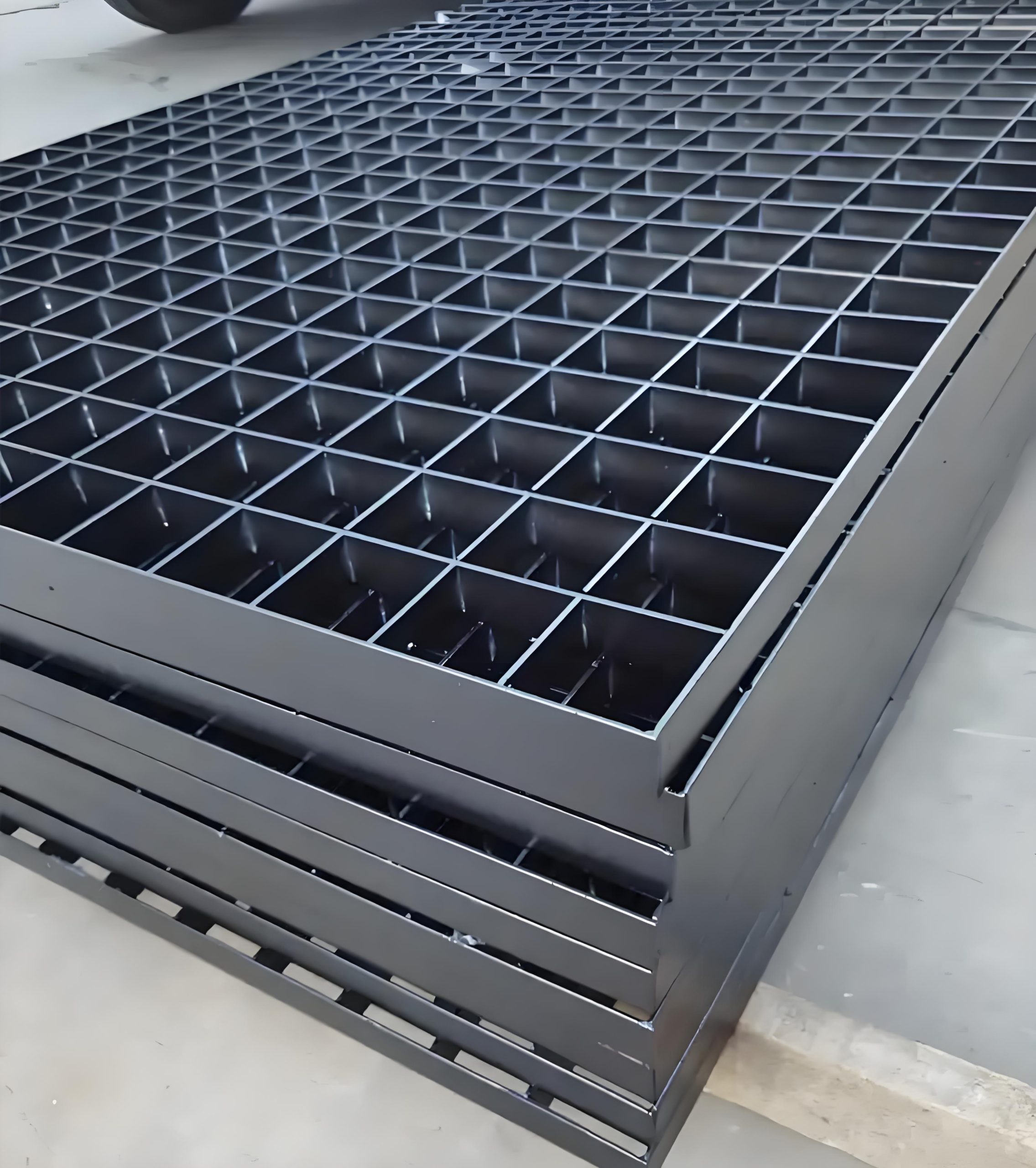

304 stainless steel 19-W-4 grating is a standard-duty welded bar grating made with Type 304 stainless steel bearing bars arranged at 1-3/16 inches on …
304 stainless steel 19-W-4 grating is a standard-duty welded bar grating made with Type 304 stainless steel bearing bars arranged at 1-3/16 inches on center and cross bars positioned at 4 inches on center. It combines the widely recognized 19-W-4 welded grating configuration with the corrosion resistance, clean appearance, and hygienic properties of 304 stainless steel. This grating is commonly selected for industrial walkways, processing platforms, drainage trench covers, stair treads, mezzanine floors, equipment access areas, and other applications where an open-grid walking surface must resist moisture, routine cleaning, and general industrial exposure. Smooth and serrated surfaces are available, while bearing bar height, thickness, panel size, surface finish, edge banding, and fabrication details can be selected according to the required load, support span, installation environment, and project drawings.

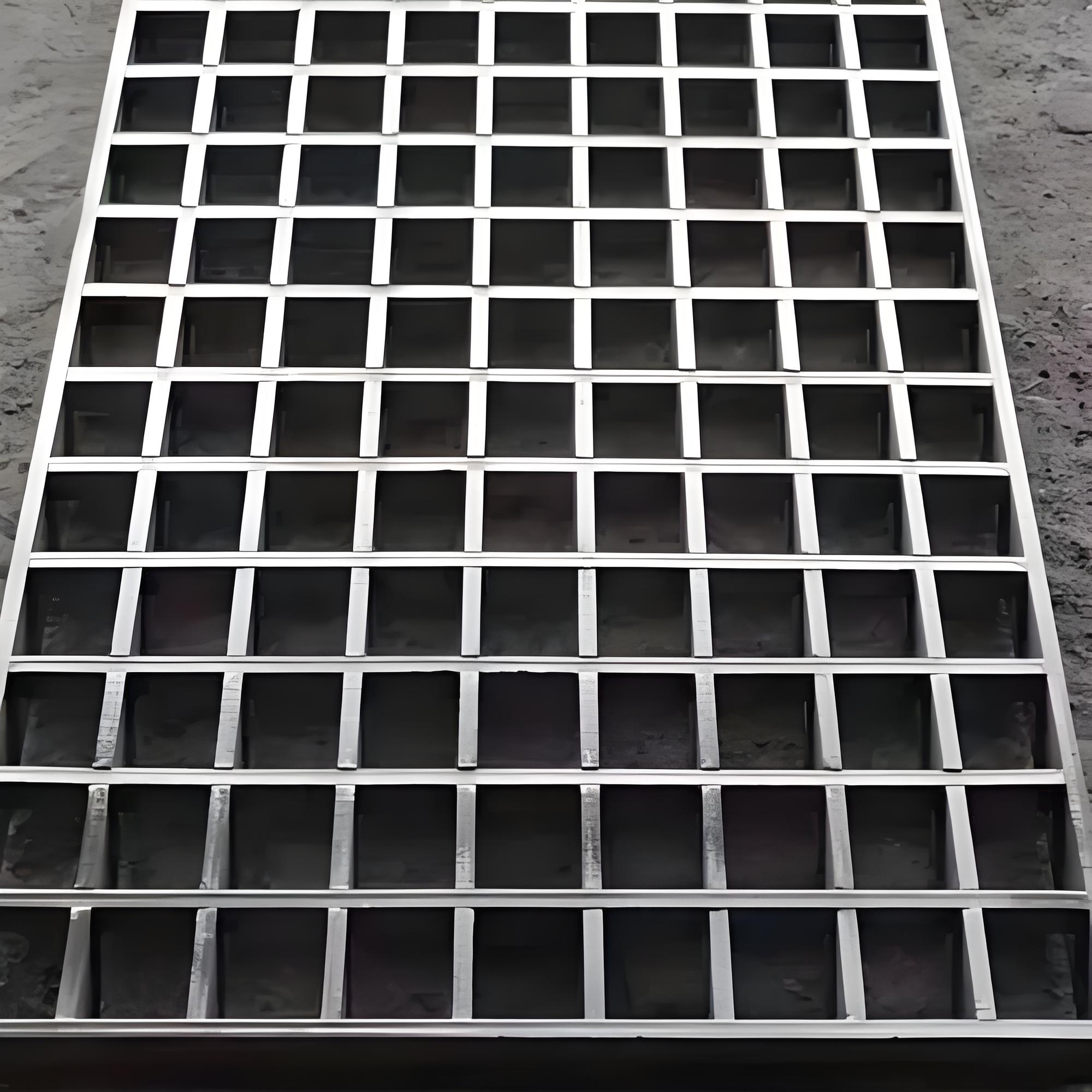

304 stainless steel 19-W-4 grating is an open-grid structural flooring product manufactured from parallel stainless steel bearing bars and welded cross bars. The bearing bars carry the primary load across the supporting structure, while the cross bars maintain the spacing between bearing bars and help stabilize the completed panel.
The 19-W-4 configuration is one of the most widely used welded bar grating arrangements for pedestrian platforms, industrial walkways, stair treads, and drainage applications. It provides a practical balance between open area, drainage, panel weight, load distribution, manufacturing efficiency, and walking performance.
The use of 304 stainless steel gives the grating better resistance to moisture and general atmospheric corrosion than untreated carbon steel. It also provides a cleaner appearance and eliminates the need for a zinc coating. These characteristics make it suitable for projects where routine washdown, hygiene, appearance, or long-term resistance to rust is important.
However, the product name alone does not fully define the finished grating. A complete specification should also state the bearing bar height and thickness, panel dimensions, smooth or serrated surface, banding requirements, surface treatment, cutouts, frame details, support span, and required load capacity.
For example, two panels may both be described as 304 stainless steel 19-W-4 grating, but a panel made with 1 inch by 1/8 inch bearing bars will not provide the same stiffness or load capacity as a panel made with 1-1/2 inch by 3/16 inch bearing bars. The 19-W-4 designation defines the basic spacing and construction pattern, not the entire structural performance of the panel.
The designation 19-W-4 describes the arrangement and manufacturing method of the bar grating. It should be read as three separate parts: “19,” “W,” and “4.” Understanding this code helps buyers compare quotations and avoid ordering a panel with the wrong spacing.
| Code | Meaning | Practical Description |
| 19 | Bearing bars spaced at 19/16 inch on center | The center-to-center distance between adjacent bearing bars is 1-3/16 inches, approximately 30.2 mm. |
| W | Welded construction | The cross bars are resistance welded or forge welded to the bearing bars to form a rigid panel. |
| 4 | Cross bars spaced at 4 inches on center | The center-to-center distance between adjacent cross bars is approximately 101.6 mm. |
The 19-W-4 designation therefore refers to welded grating with bearing bars spaced 1-3/16 inches apart on center and cross bars spaced 4 inches apart on center. In metric project documentation, this arrangement may be described approximately as 30 mm bearing bar spacing by 100 mm cross bar spacing, although the original designation is based on inch dimensions.
The bearing bars normally run parallel to the panel length and form the primary span direction. The cross bars run perpendicular to the bearing bars. During installation, the bearing bars must extend from one structural support to the next. The cross bars should not be treated as the primary load-carrying members.
The 19-W-4 pattern is relatively open. This allows water, air, light, and small debris to pass through the panel. It also reduces panel weight compared with more closely spaced grating. At the same time, its approximately 30 mm bearing bar spacing provides a practical surface for many industrial pedestrian applications.
For projects that require smaller openings, improved heel safety, or reduced passage of small objects, a more closely spaced grating may be necessary. The 19-W-4 pattern should therefore be selected according to the actual users, footwear, drainage requirements, dropped-object risk, and applicable project standards.
Type 304 is an austenitic chromium-nickel stainless steel. It is widely used because it offers a useful combination of corrosion resistance, fabrication performance, weldability, appearance, availability, and cost. In normal indoor, humid, food processing, and mild outdoor environments, 304 stainless steel can provide a long service life when the material is fabricated, cleaned, and maintained correctly.
The following table shows commonly referenced composition limits for Type 304 stainless steel. Actual values should be confirmed through the material certificate supplied with the order.
| Element | Typical Composition Limit | Function in the Alloy |
| Chromium | 18.00–20.00% | Forms the passive chromium oxide layer that gives stainless steel its corrosion resistance. |
| Nickel | 8.00–10.50% | Stabilizes the austenitic structure and supports toughness, corrosion resistance, and fabrication performance. |
| Carbon | 0.08% maximum | Must be controlled because excessive carbon can increase sensitization risk around welded areas. |
| Manganese | 2.00% maximum | Assists steelmaking and contributes to alloy stability. |
| Silicon | 1.00% maximum | Acts mainly as a deoxidizing element during steel production. |
| Phosphorus | 0.045% maximum | Controlled as a residual element. |
| Sulfur | 0.030% maximum | Controlled to maintain corrosion resistance and fabrication quality. |
| Nitrogen | 0.10% maximum | Can contribute to strength and austenitic stability. |
| Iron | Balance | Forms the base of the stainless steel alloy. |
304 stainless steel resists ordinary atmospheric corrosion, fresh water, humidity, many food products, routine cleaning solutions, and a range of mild industrial environments. This makes it suitable for indoor processing platforms, drainage covers, walkways, and service floors where uncoated carbon steel could rust.
Its corrosion resistance comes from a thin passive oxide film that forms naturally on the stainless steel surface. If the surface is clean and exposed to oxygen, this film can reform after minor mechanical damage. However, the passive layer can be weakened by chloride contamination, iron particles, welding scale, aggressive chemicals, or deposits that remain wet for extended periods.
Type 304 can be cut, welded, banded, framed, and fabricated into special grating shapes. Its weldability makes it suitable for welded 19-W-4 construction and secondary fabrication such as edge banding, toe plates, stair tread side plates, and support frames.
Welding produces heat tint and changes the surface condition around the weld. If the grating will be used in a wet, hygienic, or corrosion-sensitive environment, welding discoloration and surface contamination should be removed. Pickling and passivation may be specified after fabrication.
Annealed 304 stainless steel is generally described as non-magnetic or only weakly magnetic. Cold working, forming, grinding, and welding can produce some magnetic response. A slight attraction to a magnet does not automatically mean that the material is not 304 stainless steel. When grade verification is important, material certificates or positive material identification should be used instead of relying only on a magnet test.
304 stainless steel maintains useful strength across a broad temperature range, but the design of elevated-temperature platforms requires more than ordinary room-temperature grating tables. At higher temperatures, strength, thermal expansion, oxidation, support movement, fastening, and allowable deflection should be evaluated specifically for the operating condition.
The regular spacing of the bearing bars and cross bars gives 19-W-4 grating its recognizable rectangular mesh. Bearing bars are spaced at 1-3/16 inches on center, while cross bars are spaced at 4 inches on center.
| Grating Component | Nominal Spacing | Approximate Metric Equivalent | Main Function |
| Bearing Bars | 1-3/16 inches on center | 30.2 mm on center | Carry the primary load between structural supports. |
| Cross Bars | 4 inches on center | 101.6 mm on center | Maintain bearing bar spacing and stabilize the panel. |
The actual clear opening between bearing bars depends on bearing bar thickness. For example, grating made with 3/16 inch thick bearing bars has a smaller clear opening than grating made with 1/8 inch thick bearing bars, even though both products use the same 1-3/16 inch center-to-center spacing.
This difference influences open area, drainage, panel weight, walking feel, and the possibility of small objects passing through the mesh. A buyer should therefore specify both the grating designation and the bearing bar dimensions.
The 4 inch cross bar spacing is suitable for many standard industrial applications. Cross bars help resist lateral movement of the bearing bars, distribute local contact between bars, and give the panel dimensional stability. They do not normally replace the structural function of the bearing bars.
304 stainless steel 19-W-4 grating is normally manufactured by positioning parallel bearing bars at the required spacing and joining perpendicular cross bars through a controlled welding process. Pressure and electrical resistance create a permanent connection between the bars, resulting in a rigid open-grid panel.
Stainless steel bearing bars and cross bars are selected according to the required grade, dimensions, and surface condition. The material should be checked for thickness, width, straightness, contamination, and visible defects before welding.
The bearing bars are placed parallel to each other at 1-3/16 inch center spacing. Accurate alignment is important because irregular spacing affects panel width, appearance, open area, installation fit, and load distribution.
Cross bars are placed perpendicular to the bearing bars at 4 inch centers. During production, the cross bars must remain straight and consistently positioned across the panel.
Controlled pressure and electrical current are applied at the intersection of the bearing bars and cross bars. The process forms a strong welded connection without requiring a large visible fillet weld at every intersection.
After welding, stock panels can be cut into the required dimensions. Cutouts, notches, edge banding, stair tread side plates, toe plates, frames, and lifting details may then be added according to the fabrication drawing.
Welding heat tint, scale, grinding residue, and embedded iron contamination can reduce the quality of the stainless steel surface. Depending on the service environment, the completed grating may be cleaned, pickled, passivated, blasted with suitable non-ferrous media, or polished.
Stainless steel fabrication should be separated from carbon steel work where practical. Tools, worktables, wire brushes, and grinding equipment contaminated with carbon steel particles can transfer iron to the stainless steel surface. These particles may later develop rust-colored staining even though the base material is stainless steel.
304 stainless steel 19-W-4 grating can be supplied with either smooth bearing bars or serrated bearing bars. Both options use the same basic bearing bar and cross bar spacing, but their walking surfaces perform differently.
| Feature | Smooth 304 Stainless Steel 19-W-4 Grating | Serrated 304 Stainless Steel 19-W-4 Grating |
| Top Surface | Flat and non-serrated | Notched or toothed for additional grip |
| Cleaning | Easier to wash and inspect | Requires more attention around serrations |
| Slip Resistance | Suitable for dry or controlled walking areas | Better suited to wet, oily, muddy, or outdoor areas |
| Walking Comfort | Smoother underfoot | More aggressive surface contact |
| Typical Use | Clean platforms, indoor walkways, drainage covers, and mezzanines | Outdoor platforms, stair treads, washdown zones, and slippery industrial floors |
Smooth grating has a flat top edge on the bearing bars. It is suitable for areas where the floor is normally dry, where cleaning is frequent, or where a less aggressive walking surface is preferred. Smooth grating is commonly used for indoor equipment platforms, mezzanine access, drainage covers, and processing areas with controlled floor conditions.
Serrated grating has notches along the upper edge of the bearing bars. These notches create additional contact with footwear and improve grip. Serrated 304 stainless steel 19-W-4 grating is commonly selected for outdoor stairs, wet platforms, washdown floors, marine-adjacent facilities, oily maintenance areas, and drainage covers that workers regularly cross.
Serrated surfaces improve traction but do not make a floor completely slip-proof. Oil, ice, grease, heavy deposits, incorrect footwear, or poor maintenance can still create unsafe conditions. Drainage, housekeeping, lighting, handrails, and appropriate footwear remain important parts of the safety system.
The 19-W-4 designation remains the same across a range of bearing bar sizes. Bearing bar height and thickness are selected according to load, span, panel rigidity, handling, fabrication, and project requirements.
| Bearing Bar Size | General Selection Direction | Typical Application Consideration |
| 1 inch × 1/8 inch | Light-duty option for shorter spans | Light pedestrian panels and small drainage covers, subject to load verification |
| 1 inch × 3/16 inch | Increased thickness and local durability | Walkways and platforms with short support spans |
| 1-1/4 inches × 1/8 inch | Deeper bearing bar with moderate weight | Pedestrian flooring and general industrial access |
| 1-1/4 inches × 3/16 inch | Greater stiffness and impact resistance | Industrial platforms, walkways, and trench covers |
| 1-1/2 inches × 1/8 inch | Deeper section for longer pedestrian spans | Platforms and elevated access flooring |
| 1-1/2 inches × 3/16 inch | Common robust standard-duty configuration | Industrial floors, platforms, stair treads, and drainage covers |
| 1-3/4 inches × 3/16 inch | Higher stiffness for longer spans or heavier loads | Demanding industrial access applications |
| 2 inches × 3/16 inch | Deep bearing bar for higher load or longer span requirements | Heavy pedestrian service and selected equipment-access applications |
The sizes in this table are general examples rather than automatic load recommendations. The final bearing bar must be selected from an applicable load table or engineering calculation using the actual clear span, allowable deflection, concentrated load, uniform load, safety factor, and support condition.
Stock grating panels are often supplied in rectangular sizes suitable for later cutting and fabrication. Custom panels can be produced according to platform layouts, trench dimensions, stair widths, transport limitations, and installation drawings.
| Panel Detail | Available Selection | Ordering Consideration |
| Panel Width | Standard or custom width | Confirm whether the stated width is overall width and how edge banding affects the dimension. |
| Panel Length | Standard stock length or cut-to-length | The bearing bars normally run parallel to the panel length. |
| Mesh Pattern | 19-W-4 | 1-3/16 inch bearing bar centers and 4 inch cross bar centers. |
| Surface | Smooth or serrated | Select according to cleaning and slip-resistance requirements. |
| Edges | Open, banded, framed, or fitted with toe plate | Choose according to safety, appearance, and installation requirements. |
When panels are cut to fit a fixed opening, the fabrication drawing should show the required overall dimensions and installation tolerances. It should also show which direction the bearing bars run. Describing a panel only as “length by width” without indicating the span direction can lead to production or installation errors.
The structural performance of 304 stainless steel 19-W-4 grating depends mainly on the bearing bars. The spacing code does not by itself provide a load rating. Bearing bar height, thickness, clear span, support condition, material properties, and load type must be considered together.
The bearing bars must run from one support to the next. This is the span direction of the grating. Cross bars run across the bearing bars and should not be positioned as the primary spanning members.
For a rectangular panel, the bearing bars frequently run parallel to the longer dimension, but this should never be assumed without checking the drawing. Some short or specially shaped panels may be designed differently.
Clear span is the unsupported distance between structural supports. As the clear span increases, grating deflection and bending stress increase. A bearing bar suitable for a short trench opening may be too flexible for a wider platform bay.
A uniform load is distributed over an area of the panel, while a concentrated load acts over a smaller contact area. Workers, carts, wheels, machine feet, and maintenance equipment can produce different load conditions. A grating design that performs adequately under a distributed pedestrian load may not be suitable for a concentrated wheel load.
Acceptable grating performance is not determined only by whether the bars permanently fail. Excessive elastic deflection can make a platform uncomfortable, cause movement between adjacent panels, damage surrounding finishes, or create a perception of instability. Both stress and deflection limits should be checked.
Increasing bearing bar height normally produces a substantial increase in bending stiffness. Increasing thickness adds material, improves local strength, and can increase resistance to impact and concentrated contact. The most efficient solution depends on the available depth, span, load, and panel weight.
| Design Information | Why It Is Required |
| Clear support span | Determines the unsupported length of the bearing bars. |
| Uniform load | Represents distributed personnel, storage, or operating loads. |
| Concentrated load | Represents tools, equipment feet, wheels, or isolated loading. |
| Allowable deflection | Controls movement and walking comfort. |
| Support width | Provides adequate seating at the bearing bar ends. |
| Panel dimensions | Affect handling, joint locations, supports, and fixing quantity. |
| Service environment | Influences material grade, finish, maintenance, and corrosion allowance. |
Load tables should be used only when the table matches the material, bearing bar dimensions, grating spacing, support condition, and load definition of the project. Carbon steel load data should not automatically be treated as verified stainless steel data without checking the basis of the table.
304 stainless steel is widely selected for grating because it performs well in many general wet and industrial environments. Its clean surface and resistance to ordinary rust make it useful in areas where carbon steel coatings would require maintenance or could contaminate the surrounding process.
304 stainless steel 19-W-4 grating can be used around washing equipment, fresh-water drainage systems, indoor tanks, pumps, utility rooms, and processing areas. The open mesh allows liquid to pass through rather than remaining on a solid floor.
Regular cleaning remains important. Deposits, trapped dirt, and stagnant liquid can create localized conditions that are more aggressive than the surrounding environment. Drainage design should prevent unnecessary pooling around frames and supports.
304 stainless steel is frequently used in food and beverage environments because it has a clean appearance, can tolerate routine washdown, and does not depend on paint or zinc coating for ordinary corrosion protection. Grating may be used for processing walkways, inspection platforms, drainage covers, and equipment access floors.
The exact material and finish should be matched to the cleaning chemicals, product composition, temperature, salt exposure, and hygiene requirements. Food processing is not a single corrosion condition. A dry packaging area and a hot brine processing line may require different stainless steel grades.
In manufacturing plants, 304 stainless steel grating can resist humidity, occasional water exposure, many mild process materials, and ordinary cleaning. It is commonly used where a clean uncoated metal surface is preferred or where rust from carbon steel could affect machinery, products, or appearance.
304 stainless steel is not the preferred choice for every wet environment. Chloride-bearing liquids, salt spray, seawater, brines, and some cleaning chemicals can cause pitting or crevice corrosion. In coastal, marine, salt-processing, swimming pool, or aggressive chemical environments, 316 or 316L stainless steel should be evaluated.
Frames, clips, overlapping joints, and poorly drained contact points can retain moisture and contamination. Even where 304 performs well on an open surface, tight crevices may experience more aggressive corrosion. Installation details should allow drainage, cleaning, and inspection.
Both 304 stainless steel and galvanized carbon steel can be used to manufacture 19-W-4 grating. The mesh pattern may be the same, but the materials differ in corrosion protection, appearance, maintenance, fabrication, and initial cost.
| Comparison Item | 304 Stainless Steel 19-W-4 Grating | Galvanized Carbon Steel 19-W-4 Grating |
| Corrosion Protection | Corrosion resistance is provided by the stainless steel alloy and its passive surface. | Corrosion protection is provided by the external zinc coating. |
| Cut Edges and Damage | The base material remains stainless steel after cutting, although fabrication areas should be cleaned. | Cutting or severe coating damage may expose carbon steel and require repair. |
| Appearance | Clean metallic stainless steel appearance. | Characteristic galvanized zinc appearance that changes with weathering. |
| Initial Cost | Normally higher because of stainless steel material cost and fabrication requirements. | Normally lower for general industrial applications. |
| Maintenance | May require cleaning and contamination control but does not rely on a zinc layer. | May require coating inspection and repair as zinc is consumed or damaged. |
| Weight | Similar general weight range when bar dimensions are equal. | Similar general weight range when bar dimensions are equal. |
| Wet Processing Use | Well suited to many washdown and clean industrial areas. | Suitable for many outdoor and industrial areas, but zinc compatibility with the process should be checked. |
| High Hygiene Areas | Often preferred where an uncoated, cleanable surface is required. | The zinc coating may not be preferred in some hygienic or contamination-sensitive environments. |
Galvanized carbon steel grating is often the economical choice for outdoor walkways, utility platforms, and general industrial structures where the zinc coating provides sufficient service life. It can offer good value in ordinary atmospheric conditions.
304 stainless steel grating is more appropriate when the project requires an uncoated corrosion-resistant surface, frequent cleaning, cleaner appearance, resistance to ordinary washdown, or reduced dependence on coating repair. Its higher purchase price may be offset by lower coating maintenance in a suitable environment.
The least expensive initial option is not necessarily the least expensive over the complete service life. Replacement access, shutdown cost, cleaning, coating repair, and contamination risk should be considered together with the original grating price.
304 and 316 stainless steel gratings have similar appearance and can be manufactured with the same 19-W-4 mesh. Their most important difference is alloy composition. Type 316 contains molybdenum, which improves resistance to chloride-induced pitting and many chemical environments.
| Comparison Item | 304 Stainless Steel Grating | 316 Stainless Steel Grating |
| Main Alloy System | Chromium-nickel stainless steel | Chromium-nickel-molybdenum stainless steel |
| General Atmospheric Resistance | Good | Good to very good |
| Chloride Resistance | Limited in marine, brine, and salt-rich conditions | Better resistance to chloride pitting than 304 |
| Marine and Coastal Use | Requires careful evaluation and maintenance | Usually the preferred starting grade, although severe exposure may require further evaluation |
| Food Processing | Suitable for many ordinary food and beverage areas | Preferred where salt, brine, aggressive cleaners, or more corrosive products are present |
| Cost | Generally lower | Generally higher because of alloy content |
| Availability | Widely available | Widely available but may have fewer stock combinations in some markets |
304 stainless steel is often sufficient for indoor processing, fresh-water exposure, general washdown, and ordinary industrial environments. Selecting 316 simply because it is considered a higher grade may add cost without providing a meaningful advantage in a mild environment.
On the other hand, using 304 in a chloride-rich location can lead to staining, pitting, and premature maintenance. Coastal air, seawater spray, brine, salt-containing products, swimming pool chemicals, and chloride-based cleaning agents are common reasons to consider 316 or 316L.
The “L” versions, such as 304L and 316L, have lower carbon limits and are commonly considered for welded fabrication. Where the order requires a specific low-carbon grade, it should be written clearly in the purchase specification rather than assuming that 304 and 304L are interchangeable.
304 stainless steel 19-W-4 grating is used in applications that benefit from corrosion resistance, open area, drainage, ventilation, and structural efficiency. The correct bearing bar size and surface type should be selected for each location.
The open-grid surface allows water, process liquid, dust, and small debris to pass through rather than collect on the walking level. Smooth grating can be used in controlled indoor areas, while serrated grating is more suitable for wet or slippery walkways.
304 stainless steel grating is used around tanks, pumps, mixing equipment, production lines, and inspection points. It provides maintenance access while allowing ventilation, lighting, and visual inspection through the platform.
19-W-4 panels can be fabricated as removable trench covers for processing plants, utility rooms, commercial facilities, and general industrial drainage systems. Framing and support details should prevent rocking and provide sufficient seating at the bearing bar ends.
Serrated 304 stainless steel 19-W-4 grating is frequently used for stair treads in wet or outdoor areas. Stair treads may be supplied with carrier plates, fixing holes, welded banding, and abrasive or checkered nosing according to the stair design.
Open stainless steel grating can be used around machinery, washing stations, inspection zones, and process equipment. For floors carrying carts or wheeled equipment, concentrated wheel loads and contact area must be checked rather than relying only on pedestrian load data.
304 stainless steel grating may be used for access platforms and drainage covers in dry food production, packaging, beverage production, and general washdown areas. Surface treatment and cleanability should be selected according to the hygiene plan.
Where solid flooring is not required, stainless steel grating can reduce retained liquid and allow air and light to pass between levels. Edge protection, toe plates, handrails, and opening sizes should be addressed separately as part of the complete mezzanine design.
| Application | Recommended Design Focus |
| Pedestrian walkway | Walking comfort, deflection, surface type, and secure fixing |
| Wet platform | Serrated surface, drainage, corrosion resistance, and cleaning access |
| Drainage cover | Concentrated load, frame support, removable fixing, and panel stability |
| Stair tread | Slip resistance, nosing, carrier plates, tread width, and fixing holes |
| Industrial floor | Uniform load, wheel load, span, bar size, and dropped-object risk |
| Food processing area | Surface cleanliness, chemical exposure, washdown, and hygienic detailing |
Most projects require more than full-size rectangular stock panels. 304 stainless steel 19-W-4 grating can be fabricated according to platform layouts, trench dimensions, stair drawings, equipment positions, and structural steel plans.
Panels can be cut to the required length and width before delivery. Factory cutting improves consistency and reduces the need for stainless steel cutting and surface repair at the installation site.
Banding bars close the exposed ends of bearing bars and can improve handling, appearance, edge stiffness, and safety. Banding is commonly applied to removable panels, drainage covers, stair treads, and panels with visible edges.
Where the panel edge must transfer load or receive concentrated contact, the banding design may need to be stronger than ordinary trim banding. Load banding should be specified clearly on the fabrication drawing.
Stainless steel angle frames, flat bar frames, or structural supports can be supplied for trench covers and floor openings. The frame must provide sufficient bearing surface and should be designed to avoid water traps and difficult-to-clean crevices.
Panels can be notched around pipes, columns, equipment legs, walls, and structural members. Cutouts should be dimensioned from fixed reference points. The drawing should also identify whether banding is required around the opening.
Toe plates may be welded to platform edges to help prevent tools and materials from falling. Toe plate height, thickness, welding, and interruption at access points should follow the platform safety design.
Stair treads can be supplied with carrier plates at both ends, predrilled fixing holes, welded front nosing, and smooth or serrated bearing bars. Tread width, depth, bearing bar direction, rise, and attachment method must match the stair stringers.
Grating can be fabricated into trapezoidal, triangular, sector, circular, or irregular panels. Complex shapes should be produced from approved drawings or accurate templates. The bearing bar direction must remain clear on every panel mark.
| Fabrication Detail | Information Needed from the Buyer |
| Cut-to-size panel | Overall length, width, tolerance, and bearing bar direction |
| Edge banding | Which edges require banding and whether it is trim or load banding |
| Cutout | Shape, size, reference dimensions, clearance, and banding requirement |
| Frame | Opening dimensions, support detail, frame section, and anchoring method |
| Stair tread | Tread width, depth, carrier plates, holes, nosing, and surface type |
| Special-shaped panel | Approved fabrication drawing, panel mark, orientation, and installation location |
Correct installation and surface treatment are necessary to obtain the expected performance from 304 stainless steel 19-W-4 grating. A properly manufactured panel can still become unsafe or develop premature surface problems if it is installed with insufficient support, incorrect orientation, incompatible fasteners, or carbon steel contamination.
Mechanical grating clips allow panels to be removed for inspection and cleaning without welding them permanently to the support structure. Clips should engage the bearing bars securely and should be tightened according to the fixing system requirements.
Stainless steel fasteners and clips are generally preferred for stainless steel grating. The compatibility of fastener material, support steel, and surrounding environment should be considered to reduce galvanic corrosion and staining.
Panels may be welded to stainless steel supports where permanent attachment is required. Welding to carbon steel supports requires appropriate welding procedures and corrosion detailing. Welded fixing makes removal more difficult and can create areas that require cleaning and surface restoration.
The bearing bar ends must have adequate seating on the support structure. Panels should not rock or shift under foot traffic. The actual minimum bearing requirement should be defined by the project engineer or applicable installation standard.
Adjacent panels should align without creating excessive gaps, sharp level differences, or unsupported edges. Panel joints should be positioned over suitable supports where required. Removable drainage covers should be arranged so that individual panels can be lifted safely.
Mill finish is the basic stainless steel surface condition and is suitable for many general industrial applications. Fabrication marks, heat tint, and weld discoloration may remain unless additional treatment is specified.
Pickling removes welding scale, heat tint, and certain surface contaminants through controlled chemical treatment. It produces a clean industrial stainless steel surface but is not intended to create a mirror-like appearance.
Passivation removes free iron contamination and supports the formation of a clean passive surface. Passivation should not be used as a substitute for removing heavy welding scale or grease before treatment.
Polishing may be specified for architectural, hygienic, or visible applications. Because bar grating has numerous intersections and edges, the required polishing level and accessible surfaces should be defined clearly before production.
Quality control should begin with confirmation of the stainless steel grade and bearing bar dimensions. Material certificates can be reviewed against the purchase specification. Positive material identification may be requested for critical projects.
Bearing bar and cross bar spacing should be measured at several locations. Irregular spacing may affect panel width, appearance, open area, and installation alignment.
Welded intersections should be checked for secure connection, missing welds, excessive deformation, cracking, and unacceptable surface contamination. Secondary welds at banding bars, frames, and toe plates should also be inspected.
Panel length, width, diagonal dimensions, cutout locations, frame size, banding position, and stair tread hole locations should be checked against approved drawings.
The completed panel should sit properly on a flat support without excessive rocking. Bearing bars should remain reasonably straight, and fabrication should not create severe twisting or distortion.
The surface should be inspected for embedded carbon steel particles, rust-colored contamination, sharp burrs, oil, deep scratches, uncontrolled grinding, weld spatter, and untreated heat tint. The acceptance level should match the intended industrial, hygienic, or architectural use.
| Quality Control Item | Inspection Requirement |
| Material grade | Confirm Type 304 or the specified low-carbon variation through documentation or testing. |
| Bearing bar dimensions | Measure bar height and thickness against the order. |
| 19-W-4 spacing | Verify 1-3/16 inch bearing bar centers and 4 inch cross bar centers. |
| Weld integrity | Check intersections and secondary fabrication welds. |
| Panel dimensions | Confirm length, width, diagonals, cutouts, and frame fit. |
| Flatness | Check for warping, rocking, and twisted bearing bars. |
| Serrations | When specified, check consistency, direction, burrs, and damaged teeth. |
| Surface finish | Confirm mill, pickled, passivated, or polished condition as ordered. |
| Packaging | Protect surfaces from carbon steel contact, moisture traps, and transport damage. |
A clear purchase specification reduces delays and prevents differences between the expected product and the delivered grating. The order should include more than the general product name.
| Ordering Item | Example Information |
| Material | Type 304 stainless steel |
| Grating designation | 19-W-4 welded bar grating |
| Bearing bar size | For example, 1-1/2 inches × 3/16 inch |
| Surface | Smooth or serrated |
| Panel dimensions | Overall width and length for each panel mark |
| Bearing bar direction | Clearly marked on the drawing |
| Surface treatment | Mill finish, pickled, passivated, polished, or other specified finish |
| Fabrication | Banding, frames, cutouts, toe plates, carrier plates, or nosing |
| Loading | Uniform load, concentrated load, wheel load, and allowable deflection |
| Support span | Clear distance between structural supports |
| Fixings | Stainless steel clips, bolts, anchors, or welded attachment |
| Documentation | Material certificate, dimensional report, inspection report, or other project records |
When the grating is based on a construction drawing, each panel should have a unique mark. The panel schedule should identify the quantity, size, bearing bar direction, cutouts, banding, and installation location. This is especially important for platforms containing many irregular panels.
What does 19-W-4 mean in stainless steel grating?
19-W-4 means the bearing bars are spaced at 19/16 inch, or 1-3/16 inches, on center; the letter W identifies welded construction; and the number 4 means the cross bars are spaced at 4 inches on center. The designation defines the mesh and construction pattern, but the bearing bar height and thickness must still be specified separately.
Is 304 stainless steel grating suitable for outdoor use?
304 stainless steel grating can be used outdoors in many mild atmospheric and fresh-water environments. It is less suitable for continuous salt spray, seawater, brine, or aggressive chloride exposure. For coastal, marine, or salt-rich conditions, 316 or 316L stainless steel grating is generally a better material to evaluate.
How do I choose the bearing bar size for 19-W-4 grating?
The bearing bar size should be selected according to the clear support span, uniform load, concentrated load, allowable deflection, support condition, and intended use. The 19-W-4 designation alone does not determine load capacity. The required bearing bar height and thickness should be confirmed through a matching stainless steel grating load table or an engineering calculation.
Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.
English English
Arabic
Vietnamese
German
French
