01 / APPLICATION OVERVIEW
Pipeline Steel Grating Flooring for Strength and Slip Resistance
Pipeline steel grating flooring provides load-bearing access along pipe racks, valve stations, and maintenance platforms, with surface options suited to wet industrial conditions.
Installed on dedicated structural supports, grating panels create inspection routes, valve operating areas, and crossings around pipeline systems. The open floor allows water to drain through, while planned removable sections provide access to pipework, supports, and services beneath the deck.
Selection should consider personnel loads, concentrated maintenance loads, support span, bearing direction, and allowable deflection. Walking surface, corrosion exposure, pipe insulation, thermal movement, drainage collection, and panel removal clearances must also be coordinated with the piping and structural layouts.
Discuss Your Walkway
02 / APPLICATION SCENARIOS & REQUIREMENTS
Application Scenarios & Project Requirements
Review the operating conditions, users, loads, environment and project requirements before selecting the appropriate steel grating specification.
Pipe Rack Inspection Walkways
Grating flooring provides defined inspection routes alongside elevated pipe racks. Panel layouts should maintain access to pipe supports and instruments while allowing clearance for insulation, thermal movement, and any planned removal of adjacent piping components.
Valve Operating Platforms
Platforms around valve groups and manifolds provide standing space for operation, inspection, and servicing. Floor elevations and dimensions should suit operating positions, with adequate clearance for handwheels, actuators, tools, and the specified maintenance loads.
Pipeline Crossing Platforms
Raised grating crossings allow personnel to pass over low-level pipelines without stepping on pipes or insulation. The floor, stairs, and supporting frame should provide the required headroom, access width, edge protection, and separation from the piping.
Pipeline Station Service Decks
Grating decks provide access around metering equipment, strainers, and pig launcher or receiver installations. Layouts should preserve closure-opening clearance, component handling routes, and drainage collection wherever maintenance may release water or process residues.
03 / SPECIFICATIONS & PRODUCT OPTIONS
Common Specifications & Available Options
Compare materials, bearing bar sizes, spacing, surface types, finishes and panel dimensions to match the requirements of the application.
Specifications
| Parameter | Specification / Options |
|---|---|
| Material |
Carbon steel bearing bars, cross bars, and perimeter members in the project-specified grade, such as Q235B, S235JR, or ASTM A36. Material standards are alternatives requiring project approval, not automatically equivalent grades. |
| Surface treatment |
Hot-dip galvanized after fabrication for suitable outdoor and humid environments; a compatible additional coating may be specified for more demanding exposure. Confirm compatibility with process liquids, cleaning chemicals, operating temperatures, and the local atmosphere. |
| Bearing bar size |
Common access-floor sections include 25 × 3, 30 × 3, 30 × 5, 32 × 5, and 40 × 5 mm. Larger options include 50 × 5, 50 × 6, and 60 × 6 mm where calculations require them. Height × thickness. Select for actual loads, clear span, surface profile, and deflection limits; section size alone does not establish capacity. |
| Bearing bar spacing |
Common center-to-center pitches: 30 and 40 mm. Closer pitches, such as 20 mm, may be considered where smaller openings are required. A 30 mm pitch with 5 mm thick bars gives a 25 mm clear gap; a 20 mm pitch with 3 mm thick bars gives a 17 mm clear gap. |
| Cross bar spacing |
Common center-to-center pitches: 50 and 100 mm, giving nominal grid combinations such as 30 × 50, 30 × 100, 40 × 50, and 40 × 100 mm. Bearing bar pitch × cross bar pitch. Verify clear openings separately where object-retention or access requirements apply. |
| Panel size examples |
Typical layout modules include 600 × 1,000, 800 × 1,000, 1,000 × 1,000, and 1,200 × 1,000 mm, with custom panels manufactured to approved drawings. Bearing bar length × panel width. Coordinate dimensions with support locations, required access width, installation gaps, and handling weight. |
| Walking surface |
Plain or serrated bearing bars, with serrated options considered for routes exposed to rainfall or wash water. Use load data for the actual serrated profile. Oil, grease, and process deposits require cleaning regardless of surface type. |
| Bearing direction and support |
Bearing bars span between designated structural beams, with end bearing and restraint positions shown on the approved layout. Panel dimensions are not automatically permissible unsupported spans. Do not support flooring on process pipes or insulation. |
| Edge treatment |
Banding commonly matches the bearing bar depth, with examples including 25 × 3, 30 × 5, and 40 × 5 mm. Toe plate examples include 100 × 5 and 150 × 5 mm. Height × thickness. Verify the required toe plate projection above the floor; ordinary banding does not automatically support interrupted bearing bars. |
| Fixing |
Grating clips or bolted restraints compatible with the selected bar pitch and support flange; M8 or M10 clip-bolt assemblies are common options. Confirm fastener grade, clip capacity, quantity, and location for movement, vibration, and uplift requirements. |
| Custom fabrication |
Framed pipe penetrations, notched panels, removable maintenance sections, and panel identification based on coordinated piping and structural drawings. Dimension openings from the pipe outside diameter, insulation envelope, movement allowance, and required maintenance clearance. |
Need a different size? Send your layout for a custom panel review.
Request Your SpecificationThe sizes above are reference examples, not approved combinations for every span. Confirm the bearing direction, loads, clear span and material before ordering. Panel size does not indicate the allowable unsupported span.
WHY USE STEEL GRATING?
Advantages for Steel Grating Applications
Verified Access Load Capacity
Bearing bar sections and support spacing can be selected for personnel, tools, and defined maintenance loads. Strength and deflection checks establish suitable flooring at inspection routes and valve operating positions.
Serrated Surface Options
Serrated bars provide additional contact edges that can improve footwear traction under suitable conditions. Surface selection should reflect actual moisture and contamination, with cleaning procedures maintained throughout operation.
Reduced Surface Pooling
Open grating allows rainwater and wash water to leave the walking surface. Drainage beneath the deck can be coordinated to collect process contamination and protect lower-level equipment or occupied routes.
Fit Around Pipeline Components
Panels can be fabricated around pipe penetrations, structural columns, and equipment interfaces. Coordinated openings and local supports preserve the intended load path while maintaining clearance for insulation and movement.
Removable Maintenance Access
Mechanically secured panels provide access to pipe supports and services beneath the floor. Panel dimensions and lifting provisions can accommodate the available handling equipment and the required component removal route.
Protection for Exposed Steel
Galvanizing after fabrication protects exposed carbon steel surfaces, including fabricated edges and welded joints. The selected protective system can be matched to outdoor wetting, local atmospheric conditions, and foreseeable chemical contact.

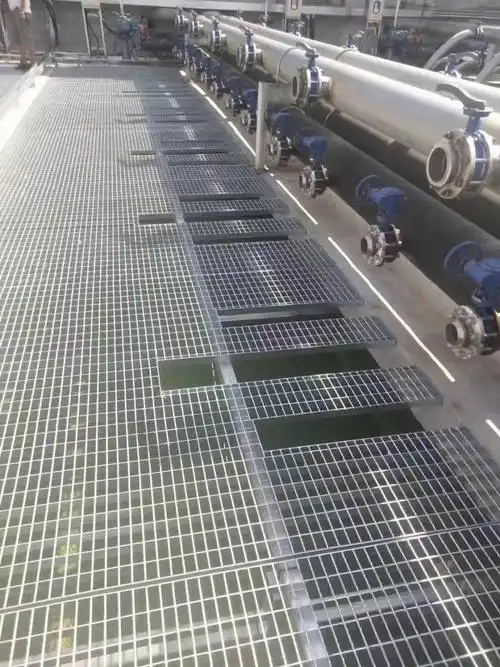

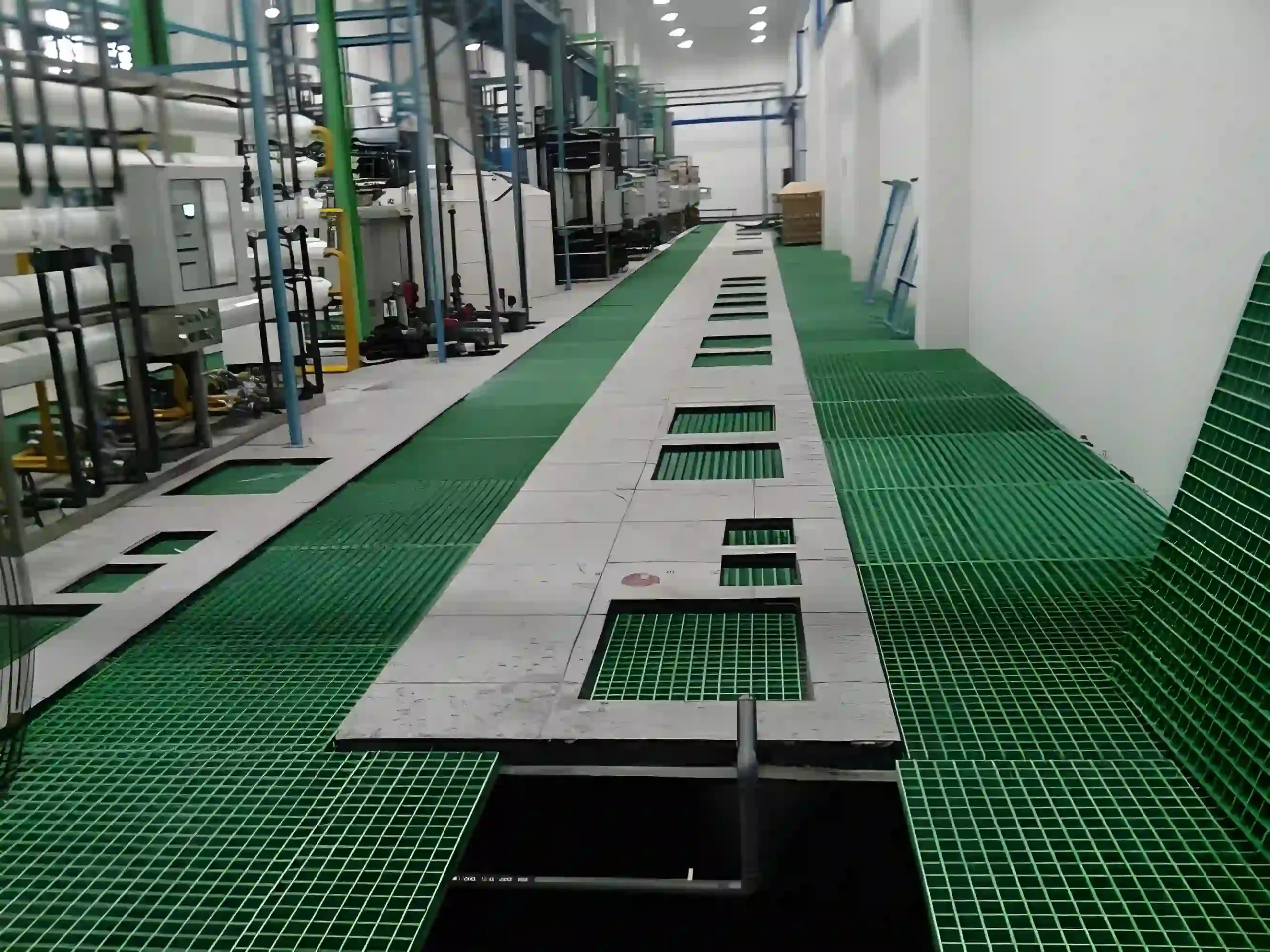

04 / INSTALLATION & PROJECT PHOTOS
Installation Guidance & Application Photos
Review the panel layout, support conditions, fixing methods and fabrication details before installation, and refer to the application photos for practical examples.
-
Verify Supports and Pipe Clearances
Check beam positions, clear spans, elevations, support widths, and specified loads against approved drawings. Confirm the installed pipe and insulation envelopes, thermal movement allowances, valve access, and component removal spaces before positioning the flooring.
-
Set Out the Grating Panels
Match panel marks to the layout and ensure bearing bars span between the designated supports. Check end bearing, joints, and framed openings. Maintain separation from pipes and insulation, and provide approved support wherever penetrations interrupt bearing bars.
-
Secure Panels and Finish Edges
Install the specified clips, bolts, or approved welded connections at the required locations. Complete toe plates and interfaces with stairs and railings. Avoid unapproved site cuts, and repair protective coatings affected by handling or installation.
-
Inspect Before Operational Use
Check panel stability, restraints, edge conditions, drainage paths, and walking-surface cleanliness. Confirm valve operating clearance and safe removal of designated panels. Complete acceptance checks and identify any restrictions on maintenance equipment or temporary component loading.
05 / RELATED REFERENCE & FAQ
Frequently Asked Questions
Which bearing bar sizes are commonly used for pipeline access flooring?
Common starting options include 25 × 3, 30 × 3, 30 × 5, 32 × 5, and 40 × 5 mm. Larger sections may be needed for longer spans or concentrated maintenance loads. Final selection requires verified load data for the actual bar spacing, surface profile, support arrangement, and deflection limit.
Is serrated grating suitable for wet or oily pipeline areas?
Serrated grating can improve traction in suitable wet conditions, but oil, grease, and process deposits can still create slip hazards. Assess the expected contaminants and footwear, and request relevant slip-performance information where required. Leak control, drainage collection, and prompt cleaning remain part of maintaining a usable access route.
What panel dimensions should be used along a pipe rack?
Layout modules may include 600 × 1,000, 800 × 1,000, or 1,000 × 1,000 mm, stated as bearing bar length × panel width. Select the actual dimensions from beam positions and the required clear access width. Panel weight, removal space, and the location of pipe penetrations also affect the layout.
How should openings around pipes and insulation be detailed?
Size each opening for the pipe, insulation, thermal movement, and required clearance. Where an opening cuts bearing bars, provide an engineered frame or additional support to transfer their loads. Banding alone should not be assumed adequate, and grating must not bear against the pipe or restrict its designed movement.
Can valves or removed pipeline components be placed on the grating?
Only where their weight and contact area fall within the verified floor design. A valve resting on a small support or a handling trolley can impose concentrated loads that differ from pedestrian loading. Identify planned maintenance loads before fabrication, and provide designated supported areas where necessary.
What information is required to quote pipeline grating flooring?
Provide the access-floor layout, beam locations, clear spans, panel dimensions, and required loads. Include bearing bar size, grid spacing, surface profile, finish, and fixing requirements. Coordinated drawings should show pipes, insulation envelopes, framed openings, toe plates, and removable sections so fabrication matches the installed pipeline arrangement.
