01 / APPLICATION OVERVIEW
Power Station Steel Grating for Heavy Loads and Corrosion Resistance
Power station steel grating provides load-bearing walkways and platforms for turbine halls, boiler structures, and auxiliary areas exposed to heavy maintenance loads and humid outdoor service.
Typical locations include turbine deck access platforms, boiler house levels, air preheater and precipitator walkways, coal handling galleries, and switchyard equipment platforms. Grating gives personnel access to inspection points, valves, and drives while allowing rainwater and washdown water to drain through the surface and air to move between operating levels.
Selection requires defined pedestrian and maintenance loads, support spans, bearing bar direction, and allowable deflection. Engineers should also assess vibration from rotating equipment, corrosion exposure, temperature near boiler areas, surface profile, panel retention, and coordination with ducts, columns, and cable routes shown on the plant layout drawings.
Discuss Your Walkway
02 / APPLICATION SCENARIOS & REQUIREMENTS
Application Scenarios & Project Requirements
Review the operating conditions, users, loads, environment and project requirements before selecting the appropriate steel grating specification.

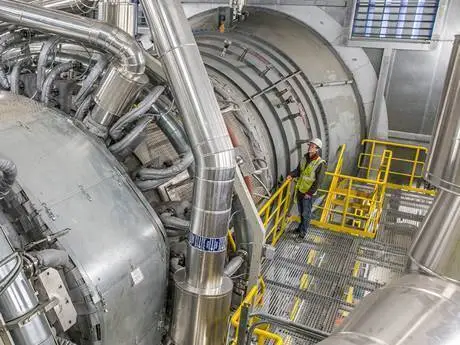

Turbine Hall Access Platforms
Grating platforms around turbines, condensers, and generators provide access for inspection, lubrication, and instrument checks. Panel layout should coordinate with pedestals, piping, and cable trays, and address vibration and oil exposure around the operating machinery.
Boiler House Walkways
Elevated walkways on boiler structures connect burners, sootblowers, and observation points across multiple levels. Design should account for temperature near boiler casings, structural movement, and access routes, with coating suitability assessed for the exposure at each elevation.
Air Preheater and ESP Service Platforms
Grating platforms on air preheaters and electrostatic precipitators allow maintenance access at height in exposed locations. Panels should drain freely, accommodate duct and casing penetrations, and use retention details suitable for wind and equipment vibration.
Coal Handling and Auxiliary Areas
Walkways along conveyors, transfer towers, and water treatment areas support inspection and housekeeping access. Surface selection and cleaning routines should address coal dust and moisture, while panel retention and fixings suit the vibration of conveying equipment.
03 / SPECIFICATIONS & PRODUCT OPTIONS
Common Specifications & Available Options
Compare materials, bearing bar sizes, spacing, surface types, finishes and panel dimensions to match the requirements of the application.
Specifications
| Parameter | Specification / Options |
|---|---|
| Material |
Weldable carbon steel, commonly Q235B, Q355B, ASTM A36, or ASTM A572 Grade 50 where specified and accepted by the project. State the required material standard and grade on the fabrication drawings. Grades are separate specifications and should not be treated as automatically interchangeable. |
| Surface treatment |
Hot-dip galvanized after fabrication for humid outdoor and general plant service; project-specified painted systems for areas with defined temperature or coating requirements. Confirm temperature, chemical exposure, and drainage conditions for each area before selecting the finish. |
| Bearing bar size |
Standard platform options include 30 × 3, 30 × 5, 32 × 5, and 40 × 5 mm. Heavy-load sections can include 50 × 5, 50 × 6, 60 × 6, 65 × 6, and 75 × 8 mm, subject to supplier capability and engineering verification. Bar depth × thickness. Capacity depends on material, clear span, bar spacing, and load distribution. |
| Bearing bar spacing |
Common center-to-center pitches include 30, 34.3, and 40 mm. Closer pitches such as 20 mm may be specified where small-object retention or access criteria require. Clear opening equals pitch minus bar thickness and must satisfy the project’s access criteria for each platform area. |
| Cross bar spacing | Common center-to-center pitches include 50 and 100 mm; supplier series may also use 50.8 or 101.6 mm. Welded or pressure-locked construction should be identified in the specification. |
| Panel dimensions |
Illustrative panel dimensions include 600 × 1,000, 800 × 1,200, 1,000 × 1,000, 1,000 × 1,200, and 1,000 × 3,000 mm, with cut-to-size fabrication from approved platform layouts. State bearing bar length and panel width separately. Panel length does not establish the allowable unsupported span; intermediate supports may be required. |
| Walking surface |
Plain or serrated bearing bars. Serrated profiles are commonly considered for outdoor routes, oil-exposed turbine areas, and stair treads. Verify load data for the selected serrated section. Surface profile does not remove the need to control oil, coal dust, and deposit buildup. |
| Stair tread dimensions |
Common fabrication examples include widths of 600, 800, 900, 1,000, and 1,200 mm, with front-to-back depths around 240, 270, or 300 mm. Bolted end plates and defined anti-slip nosings can be supplied. Final tread depth, rise, width, and connections must match the approved stair design and applicable access requirements. |
| Edges and openings |
Banded panel edges, reinforced duct and equipment cut-outs, and project-specified toe plates. Openings around columns, piping, and cable routes are dimensioned from approved drawings. Cut bearing bars may require additional support. Opening protection follows the platform safety design. |
| Fixings and retention |
Project-specified grating clamps, bolted retaining plates, or welded connections. M8 and M10 bolts are common fixing options where compatible with the selected clamp and support detail. Fixing quantity, location, tightening requirements, and resistance to vibration or uplift must be defined by the connection design. |
| Load and bearing direction |
Bearing bars span between supporting members. Confirm clear span in mm, uniformly distributed load in kN/m², concentrated load in kN, load contact area, and allowable deflection in mm. Check tool trolleys, heavy spare parts, and equipment handling separately. Specify minimum end bearing and support details on the drawings. |
Need a different size? Send your layout for a custom panel review.
Request Your SpecificationThe sizes above are reference examples, not approved combinations for every span. Confirm the bearing direction, loads, clear span and material before ordering. Panel size does not indicate the allowable unsupported span.
WHY USE STEEL GRATING?
Advantages for Steel Grating Applications
Load-Matched Platform Sections
Bearing bar depth, thickness, and spacing can be selected for each area’s span and service loads. Routine access routes and heavy maintenance areas can use different sections appropriate to their duties, confirmed through verified load tables or calculation.
Hot-Dip Galvanized Corrosion Protection
Galvanizing after fabrication protects panels in humid outdoor areas and general plant service. Selecting the finish for local temperature and chemical exposure helps maintain serviceability across different levels of the station.
Drainage Through the Open Grid
Open grating allows rainwater and washdown water to pass through the walking surface, reducing standing water on exposed boiler and precipitator platforms. Oil and dust deposits still require routine removal through the plant’s cleaning program.
Serrated Surface Option
Serrated bearing bars provide additional footwear contact on routes exposed to rain, oil, or coal dust. Their suitability should be assessed with site conditions and the verified load capacity of the selected bar section.
Vibration-Resistant Retention
Specified clamps and retaining plates can secure panels against movement from rotating equipment and conveyor operation. Defined tightening requirements and periodic inspection of fixings help keep panels positioned on their supports.
Coordination With Plant Structures
Drawing-based fabrication accommodates columns, ducts, piping, and cable routes. Coordinated panel joints and reinforced openings help preserve support continuity while maintaining required clearances on congested plant levels.

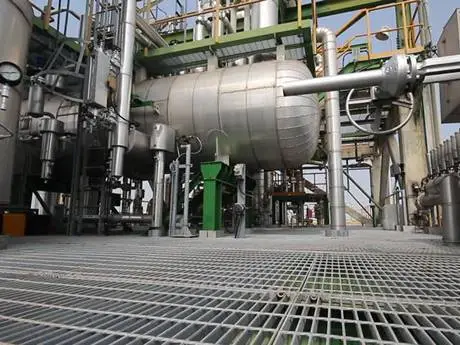

04 / INSTALLATION & PROJECT PHOTOS
Installation Guidance & Application Photos
Review the panel layout, support conditions, fixing methods and fabrication details before installation, and refer to the application photos for practical examples.
-
Verify Supports and Design Loads
Check support locations, elevations, clear spans, and required end bearing against the approved drawings. Confirm the specified pedestrian and maintenance loads, including any designated heavy-load areas. Apply the plant’s access and isolation controls before working near operating equipment.
-
Place Panels in the Approved Direction
Match panel identification to the platform layout and orient bearing bars across the designated supports. Check joints, stair transitions, clearances around ducts and piping, and cut-out reinforcement. Obtain design approval before cutting bearing bars or changing support positions.
-
Secure Panels Against Vibration
Install the specified clamps, retaining plates, or welded connections at the approved locations. Use the required tightening procedure and any specified vibration-resistant details. Repair damaged coatings using the project-approved method and confirm that removable panels remain securely retained.
-
Inspect and Release the Access Route
Check for rocking panels, unsupported edges, loose fixings, sharp projections, and blocked drainage. Verify toe plates, guardrails, and opening protection before use. Establish routine inspections for oil and dust buildup, corrosion, wear, and fixing movement, particularly near rotating equipment.
05 / RELATED REFERENCE & FAQ
Frequently Asked Questions
What loads should power station platform grating be designed for?
Design loads should cover personnel, tools, and any concentrated maintenance loads, along with trolleys, spare parts, or equipment handling where they occur. Each platform area needs a defined uniform load, concentrated load, contact area, clear span, and deflection limit. Heavy component handling or storage requires separate verification rather than selection from standard bar dimensions alone.
Which bearing bar sizes suit heavy-load power station platforms?
Sections such as 40 × 5, 50 × 5, 50 × 6, 60 × 6, or larger bars may be considered, but no size suits every span or load. Provide the concentrated load, contact area, support spacing, and deflection limit. Heavy areas may require closer supports, deeper sections, or a separately designed platform structure.
Is hot-dip galvanized grating suitable for boiler house areas?
Suitability depends on the actual panel temperature and exposure at each elevation. Hot-dip galvanizing serves many general plant and outdoor areas, but locations with elevated temperatures or radiant heat require a specific coating assessment. Provide normal and peak temperatures so the designer can select an appropriate finish and check thermal movement.
Should power station walkways use plain or serrated grating?
Serrated grating is often considered where rain, oil, or coal dust affects footing, including outdoor platforms and turbine hall routes. Plain grating may suit controlled areas after assessment. Neither surface prevents slipping when oil films or deposits remain, so surface selection should be combined with a cleaning routine and the verified load data for the chosen profile.
How should grating be retained near rotating and conveying equipment?
Connections should be designed for the expected vibration, panel movement, and any uplift forces. Specified clamps or retaining plates must engage the supporting steel securely and use suitable fastener retention. Fixing quantity and location depend on the panel and support arrangement. Inspect connections periodically, particularly near turbines, fans, and conveyors.
What information is needed for a power station grating quotation?
Provide the platform layout, quantities, bearing direction, support spans, design loads, material grade, bar sizes and spacing, surface profile, and coating requirements. Include equipment and duct cut-outs, stair treads, toe plates, fixing details, and removable sections. Identify vibration sources, heavy maintenance loads, and temperature exposure so these conditions can be addressed before fabrication.
06 / PROJECT ENQUIRY
Tell Us About Your Walkway
Share your layout and operating requirements so our team can review the grating, fabrication and supply scope.
Send Drawings by Email Discuss on WhatsAppThe email button opens your mail app. Attach your drawings before sending.
Include these details
- Application location and exposure conditions
- Drawings, panel dimensions and quantities
- Support layout, clear span and design loads
- Material, finish and walking-surface requirements
- Cut-outs, fixings and removable access sections
- Destination, required delivery date and project standards
Already have a specification? Send it with your enquiry.
