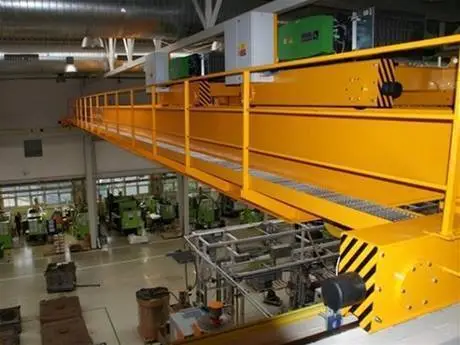

Steel Grating Crane Platforms for Heavy Loads and Safe Access
Steel grating crane platforms provide load-bearing access surfaces around overhead cranes, runways, and maintenance areas where heavy equipment and personnel safety define the design.
Typical locations include crane runway access platforms, end truck and drive maintenance areas, bridge walkways, cab access landings, and hoist service platforms. Grating allows personnel to reach inspection points, lubrication locations, and drive components while staying clear of crane travel paths. Platform layouts should coordinate panel direction with runway beams, rail lines, and equipment removal routes.
Selection must define pedestrian loads, concentrated maintenance loads, trolley or tool traffic, support spans, bearing direction, and allowable deflection. Engineers should also assess vibration from crane operation, corrosion exposure, walking surface, panel retention, and clearances from moving crane parts. Loads from heavy components or temporary storage require separate verification rather than selection by bar size alone.
Discuss Your Walkway
02 / APPLICATION SCENARIOS & REQUIREMENTS
Application Scenarios & Project Requirements
Review the operating conditions, users, loads, environment and project requirements before selecting the appropriate steel grating specification.
Runway Access Platforms
Grating platforms along crane runways provide access for rail, beam, and runway inspection. Panel layout should maintain clear distance from crane travel, coordinate openings around columns and brackets, and support the specified personnel and tool loads on the defined spans.
End Truck and Drive Maintenance Areas
Platforms adjacent to end trucks, gearboxes, and motors allow lubrication, adjustment, and component inspection. Removable grating sections can provide lifting access to drive components, with panel weights and fixing arrangements coordinated for planned maintenance activities.
Bridge and Girder Walkways

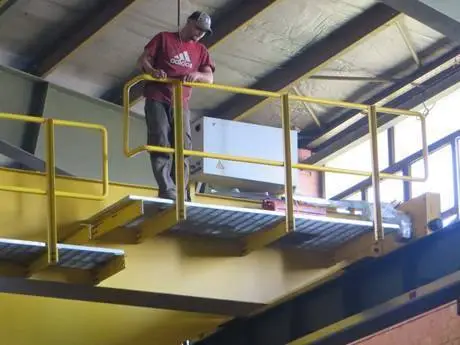

Grating walkways on crane bridges provide access to trolley rails, festoon systems, and mechanical components at height. Design should account for crane-induced vibration, panel retention, surface grip, and guardrail integration with the crane structure.
Cab Access and Landing Platforms
Grating landings and connecting stairways provide safe access to operator cabs and crane-level routes. Tread design, landing dimensions, and fixing details should match the approved access drawings and applicable requirements for work at height around crane structures.
03 / SPECIFICATIONS & PRODUCT OPTIONS
Common Specifications & Available Options
Compare materials, bearing bar sizes, spacing, surface types, finishes and panel dimensions to match the requirements of the application.
Specifications
| Parameter | Specification / Options |
|---|---|
| Material |
Weldable carbon steel, commonly Q235B, Q355B, ASTM A36, or ASTM A572 Grade 50 where specified and accepted by the project. State the required material standard and grade on the fabrication drawings. Grades are separate specifications and should not be treated as automatically interchangeable. |
| Surface treatment |
Hot-dip galvanized after fabrication for suitable indoor and outdoor service; painted systems or uncoated steel where project conditions require an alternative finish. Confirm exposure to industrial air, humidity, temperature, and any process chemicals before selecting the coating. |
| Bearing bar size |
Standard platform options include 25 × 3, 30 × 3, 30 × 5, 32 × 5, and 40 × 5 mm. Heavy-load platform sections can include 50 × 5, 50 × 6, 60 × 6, 65 × 6, and 75 × 8 mm, subject to supplier capability and engineering verification. Bar depth × thickness. Capacity depends on material, clear span, bar spacing, and load distribution. |
| Bearing bar spacing |
Common center-to-center pitches include 30, 34.3, and 40 mm; closer pitches such as 20 mm may be specified where access or small-object retention criteria require. Clear opening equals pitch minus bar thickness and must satisfy the project access criteria for each platform area. |
| Cross bar spacing | Common center-to-center pitches include 50 and 100 mm; supplier series may also use 50.8 or 101.6 mm. Welded or pressure-locked construction should be identified in the specification. |
| Panel dimensions |
Illustrative panel dimensions include 600 × 1,000, 800 × 1,200, 1,000 × 1,000, 1,000 × 1,200, and 1,000 × 3,000 mm, with cut-to-size fabrication from approved platform layouts. State bearing bar length and panel width separately. Panel length does not establish the allowable unsupported span; intermediate supports may be required. |
| Walking surface |
Plain or serrated bearing bars. Serrated profiles are commonly considered for exposed routes, oily areas, or platforms subject to vibration and moisture. Verify load data for the selected serrated section. Surface profile does not remove the need to control oil, grease, and dust deposits. |
| Stair tread dimensions |
Common fabrication examples include widths of 600, 800, 900, 1,000, and 1,200 mm, with front-to-back depths around 240, 270, or 300 mm. Bolted end plates and defined anti-slip nosings can be supplied. Final tread depth, rise, width, and connections must match the approved stair design and applicable access requirements. |
| Edges and openings |
Banded panel edges, reinforced equipment cut-outs, and project-specified toe plates. Openings around columns, rail lines, and service penetrations are dimensioned from approved drawings. Cut bearing bars may require additional support or reinforcement. Opening protection follows the platform safety design. |
| Fixings and retention |
Project-specified grating clamps, bolted retaining plates, or welded connections. M8 and M10 bolts are common fixing options where compatible with the selected clamp and support detail. Fixing quantity, location, tightening requirements, and resistance to vibration or uplift must be defined by the connection design. |
| Load and bearing direction |
Bearing bars span between supporting members. Confirm clear span in mm, uniformly distributed load in kN/m², concentrated load in kN, load contact area, and allowable deflection in mm. Check trolley wheels, heavy spare parts, tool storage, and impact separately. Specify minimum end bearing and support details on the drawings. |
Need a different size? Send your layout for a custom panel review.
Request Your SpecificationThe sizes above are reference examples, not approved combinations for every span. Confirm the bearing direction, loads, clear span and material before ordering. Panel size does not indicate the allowable unsupported span.
WHY USE STEEL GRATING?
Advantages for Steel Grating Applications
Load-Matched Platform Sections
Bearing bar depth, thickness, and spacing can be selected for each platform’s actual span and service loads. Routine access routes and heavy maintenance areas can use different sections appropriate to their duties, verified through load tables or calculation.
Open Surface for Drainage
Open grating allows rainwater, washdown water, and spilled fluids to pass through the walking surface. This reduces standing water on exposed runways and outdoor crane bays, although oil and dust deposits still require routine removal.
Serrated Surface Option
Serrated bearing bars provide additional footwear contact on routes exposed to moisture, oil, or vibration. Their suitability should be assessed with site conditions and the load capacity of the selected bar section.
Vibration-Resistant Retention
Specified clamps and retaining plates can secure panels against movement from crane operation. Connection details, tightening requirements, and periodic inspection of fixings help keep panels positioned on their supports during service.
Removable Maintenance Sections
Individually retained panels provide planned lifting and service access to drives, end trucks, and equipment below or beside the platform. Defined removal points and manageable panel weights support maintenance without disturbing the overall walkway.
Coordination With Crane Structure
Drawing-based fabrication accommodates runway beams, columns, rails, and handrail posts. Coordinated panel joints and reinforced openings help preserve support continuity while maintaining required clearances from moving crane parts.
04 / INSTALLATION & PROJECT PHOTOS
Installation Guidance & Application Photos
Review the panel layout, support conditions, fixing methods and fabrication details before installation, and refer to the application photos for practical examples.
-
Verify Supports and Design Loads
Check support locations, elevations, clear spans, and required end bearing against the approved drawings. Confirm the specified pedestrian and maintenance loads, including any designated heavy-load areas. Apply the site’s crane isolation and access controls before working near the crane structure.
-
Place Panels in the Approved Direction
Match panel identification to the platform layout and orient bearing bars across the designated supports. Check joints, stair transitions, clearances from crane travel, and cut-out reinforcement. Obtain design approval before cutting bearing bars or changing support positions.
-
Secure Panels Against Vibration
Install the specified clamps, retaining plates, or welded connections at the approved locations. Use the required tightening procedure and any specified vibration-resistant details. Repair damaged coatings using the project-approved method and confirm that removable panels remain securely retained.
-
Inspect and Release the Access Route
Check for rocking panels, unsupported edges, loose fixings, sharp projections, and blocked drainage. Verify toe plates, guardrails, and opening protection before use. Establish routine inspections for oil and dust buildup, corrosion, wear, and fixing movement, particularly on crane bridge walkways.
05 / RELATED REFERENCE & FAQ
Frequently Asked Questions
What loads should crane platform grating be designed for?
Design loads should cover personnel, tools, and any concentrated maintenance loads, along with trolley wheels or heavy components where they occur. Each platform area needs a defined uniform load, concentrated load, contact area, clear span, and deflection limit. Heavy component handling or temporary storage requires separate verification rather than selection from standard bar dimensions alone.
Which bearing bar sizes suit heavy-duty crane platforms?
Sections such as 40 × 5, 50 × 5, 50 × 6, 60 × 6, or larger bars may be considered, but no size suits every span or load. Provide the concentrated load, contact area, support spacing, and deflection limit. Heavy-load areas may require closer supports, deeper sections, or a separately designed platform structure.
How does crane vibration affect grating installation?
Crane operation can loosen fixings and shift panels on their supports. Connections should be designed for the expected vibration, panel movement, and any uplift forces. Specified clamps or retaining plates must engage the supporting steel securely, and fixings should be inspected periodically, particularly on bridge walkways and platforms near drives.
Should crane platform walkways use plain or serrated grating?
Serrated grating is often considered where oil, moisture, or vibration affects footing, including outdoor runway platforms and bridge walkways. Plain grating may suit controlled areas after assessment. Neither surface prevents slipping when oil films or deposits remain, so surface selection should be combined with a cleaning routine and the verified load data for the chosen profile.
Can panels be made removable for drive maintenance?
Yes. Removable sections can be retained with clamps or bolted plates and identified on the layout for planned lifting access to end trucks, gearboxes, and motors. Panel weights, lifting points, and fixing arrangements should be coordinated so maintenance crews can remove panels safely without disturbing adjacent sections.
What information is needed for a crane platform grating quotation?
Provide the platform layout, quantities, bearing direction, support spans, design loads, material grade, bar sizes and spacing, surface profile, and coating requirements. Include equipment cut-outs, stair treads, toe plates, fixing details, and removable sections. Identify wheel traffic, heavy maintenance loads, and vibration sources so these conditions can be addressed before fabrication.
