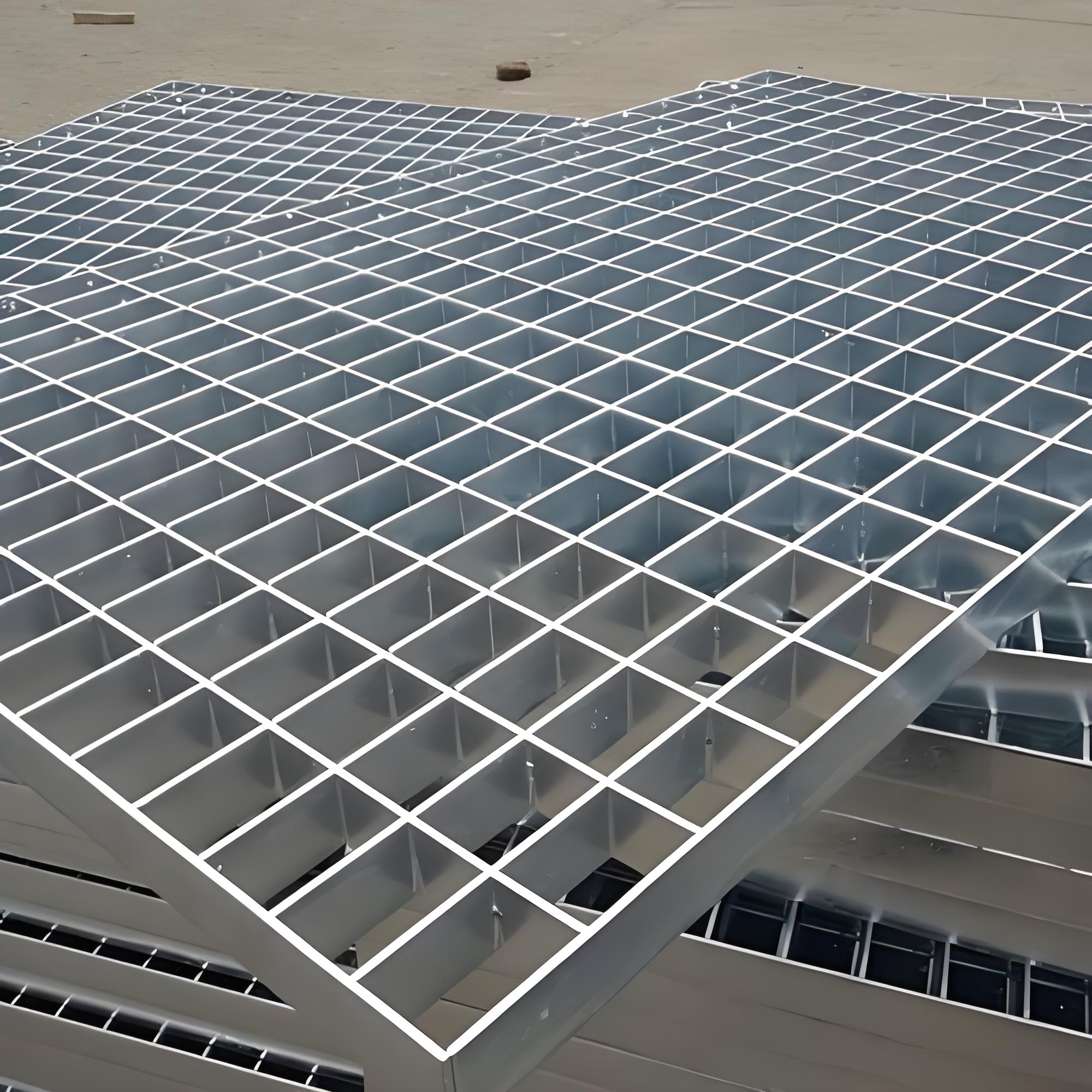

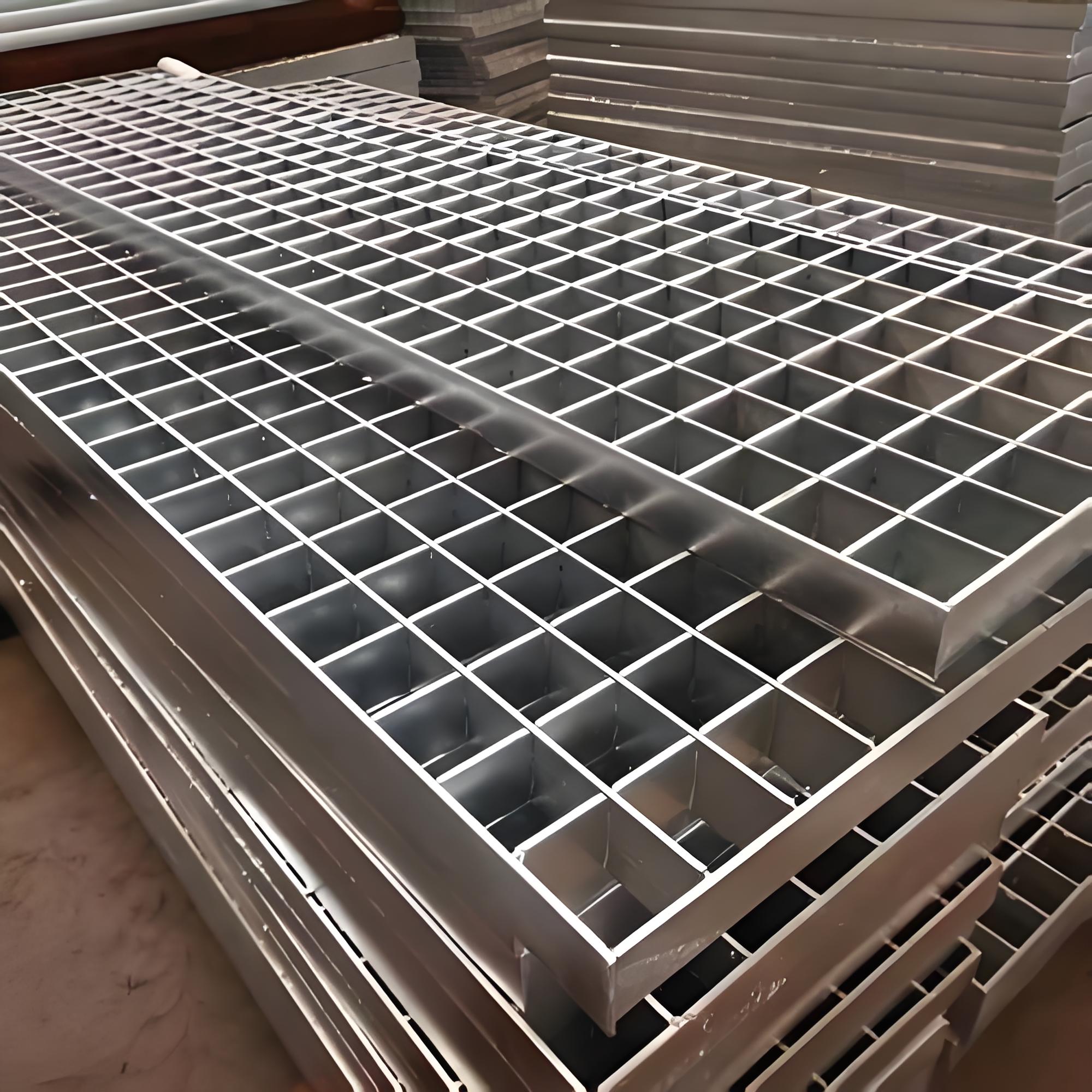

Stainless Steel 19-W-4 Grating

Stainless steel 19-W-4 grating is a corrosion-resistant welded bar grating used for food plants, chemical areas, marine sites, wastewater facilities, drainage systems, clean industrial platforms, walkways, catwalks, trench covers, and stair treads. The 19-W-4 specification means the bearing bars are spaced at 19/16 inch centers, the grating uses welded construction, and the cross bars are spaced at 4 inch centers. Compared with carbon steel or hot-dip galvanized steel grating, stainless steel 19-W-4 grating is selected when the project requires better corrosion resistance, cleaner appearance, longer service life, or hygienic surface performance. To choose the correct stainless steel grating, buyers should confirm the stainless steel grade, bearing bar size, span, load, surface type, fabrication details, and working environment before ordering.

Stainless Steel 19-W-4 Grating for Corrosion-Resistant Projects

Stainless steel 19-W-4 grating is designed for projects where ordinary carbon steel grating or galvanized steel grating may not provide enough corrosion resistance. In many industrial environments, grating panels are exposed to water, cleaning chemicals, salt air, acidic vapor, food residue, wastewater, humidity, or corrosive process liquids. Under these conditions, stainless steel becomes a practical material choice because it can maintain a clean surface and resist rust better than carbon steel.

The 19-W-4 spacing pattern is widely used because it provides a balanced open structure for walking, drainage, ventilation, inspection, and cleaning. The open area allows water and debris to pass through the grating surface, while the bearing bars carry the working load across the support span. This makes stainless steel 19-W-4 grating useful for wet floors, drainage channels, process platforms, service walkways, trench covers, and maintenance access systems.

For corrosion-resistant projects, the stainless steel grade is one of the first decisions. 304 stainless steel is suitable for many indoor wet and hygienic areas. 316 stainless steel offers better resistance to chloride and chemical exposure. 316L stainless steel is often selected where welding and corrosion resistance around weld areas are more important. However, material grade alone is not enough. Bearing bar size, load capacity, welding quality, surface cleaning, passivation, flatness, and installation method also affect final performance.

What 19-W-4 Means in Stainless Steel Grating Specifications

The term 19-W-4 describes the spacing and construction method of the grating. It is a useful specification code, but it does not fully define the product. A complete stainless steel 19-W-4 grating specification should also include stainless steel grade, bearing bar size, surface type, finish, panel size, fabrication requirements, load condition, and quantity.

The Meaning of 19

The number 19 refers to bearing bar spacing. In 19-W-4 stainless steel grating, the bearing bars are spaced at 19/16 inch centers. This is approximately 1-3/16 inch center-to-center. Bearing bars are the main load-carrying members. They should be installed in the correct direction so that they span across the support opening.

This spacing provides a practical open area for drainage and ventilation while still giving a usable walking surface for many industrial applications. The actual clear opening depends on the bearing bar thickness. Thicker bearing bars reduce the clear gap slightly, while thinner bearing bars create a larger opening.

The Meaning of W

The letter W means welded construction. In welded stainless steel grating, the cross bars are welded to the bearing bars to form a rigid panel. Welded stainless steel grating is used where strength, stability, corrosion resistance, and cleanable construction are required. Because stainless steel welding can affect the surface near the weld, proper cleaning, pickling, or passivation may be required after fabrication depending on the project environment.

The Meaning of 4

The number 4 refers to cross bar spacing. In 19-W-4 grating, the cross bars are spaced at 4 inch centers. Cross bars help keep bearing bars aligned and improve panel stability. They are not the main load-carrying bars, but they are important for panel rigidity and handling strength.

Why the Code Must Be Combined with Material Grade

When buyers request 19-W-4 grating, the spacing code only describes the pattern. Stainless steel 304, 316, and 316L may all be produced in 19-W-4 spacing, but their corrosion resistance and cost are different. A buyer should not only ask for “stainless steel 19-W-4 grating” without confirming the grade. The project environment should decide whether 304, 316, or 316L is suitable.

Welded Structure of Stainless Steel 19-W-4 Grating Panels

Stainless steel 19-W-4 grating is made from stainless steel bearing bars and cross bars welded into an open grid panel. The welded structure gives the panel strength and stability while maintaining open space for drainage, ventilation, and cleaning. The same general structure may be used for platform panels, walkway grating, drainage covers, trench covers, stair treads, and custom fabricated access panels.

Bearing Bars Carry the Main Load

The bearing bars are the most important structural members in stainless steel grating. They carry the load across the support span. Bearing bar height, thickness, spacing, material grade, and span direction directly affect load capacity and deflection. In a platform, bearing bars should span between support beams. In a trench cover, bearing bars should usually span across the trench opening.

If the bearing bar direction is wrong, even a high-grade stainless steel grating panel may not perform correctly. For this reason, drawings should clearly show bearing bar direction, support spacing, panel size, and installation position. This is especially important for custom panels, trench covers, and platform flooring.

Cross Bars Stabilize the Grating Panel

Cross bars are welded across the bearing bars at 4 inch centers in the 19-W-4 pattern. Their function is to keep the bearing bars aligned, stabilize the panel, and help maintain the grid shape. Good welding between cross bars and bearing bars is important because loose welds can reduce panel stability and create long-term service problems.

Edge Banding Improves Safety and Appearance

Stainless steel grating panels are often supplied with edge banding. Banding closes the open ends of bearing bars, improves appearance, strengthens the perimeter, and makes the panel safer to handle. For food plants, commercial drainage, and clean industrial areas, banded edges can also provide a neater and more finished appearance.

Fabrication Before Surface Finishing

Cutting, welding, notching, frame fabrication, stair tread fabrication, and handle welding should be completed before final cleaning or passivation. After welding, stainless steel surfaces may need cleaning to remove heat tint, welding discoloration, grinding residue, and contamination. Proper finishing helps maintain corrosion resistance, especially in wet or chemical environments.

Bearing Bar Spacing and Cross Bar Spacing Details

The spacing of stainless steel 19-W-4 grating affects drainage, walking comfort, open area, cleaning performance, and cost. Because stainless steel material is more expensive than carbon steel, choosing a suitable spacing and bearing bar size is important for both performance and budget control.

Bearing Bar Spacing of 19/16 Inch

The bearing bars in 19-W-4 stainless steel grating are spaced at 19/16 inch centers. This spacing is common for standard-duty grating and provides a practical open area for many industrial applications. It allows liquid, air, light, and debris to pass through, which is useful in drainage systems, food processing floors, chemical areas, marine platforms, and utility access zones.

For public pedestrian areas, small-wheel carts, wheelchair access, or high-heel traffic, the opening size should be checked carefully. 19-W-4 is suitable for many industrial areas, but not every public access area has the same safety requirement. If smaller openings are needed, a different spacing pattern may be considered.

Cross Bar Spacing of 4 Inches

The cross bars are spaced at 4 inch centers. This spacing provides a stable welded panel structure while keeping the grating open and economical. In stainless steel grating, cross bar welding must be controlled to avoid weak joints, excessive heat distortion, or surface contamination around welds.

Open Area and Drainage Performance

The open area of stainless steel 19-W-4 grating is one of its key advantages. In drainage channels, it allows water to pass through quickly. In food and beverage plants, it allows wash-down water to drain away. In marine or coastal platforms, it prevents water from collecting on the walking surface. In chemical areas, it supports ventilation and easier cleaning.

304, 316, and 316L Stainless Steel Material Options

Stainless steel 19-W-4 grating is commonly produced from 304, 316, or 316L stainless steel. The correct grade depends on corrosion exposure, hygiene requirement, welding requirement, service life expectation, and budget. Choosing the wrong grade may lead to unnecessary cost or insufficient corrosion resistance.

304 Stainless Steel 19-W-4 Grating

304 stainless steel is a common choice for general corrosion-resistant grating. It performs well in many indoor wet environments, food processing areas, commercial drainage systems, humid workshops, clean platforms, and architectural access areas. It is usually more economical than 316 and 316L.

304 stainless steel is suitable when the environment does not contain high chloride levels or strong chemical exposure. It is often used in food plants, beverage plants, indoor drainage channels, clean rooms, commercial kitchens, and general industrial areas where carbon steel rust would be unacceptable.

316 Stainless Steel 19-W-4 Grating

316 stainless steel contains molybdenum, which improves resistance to chloride and certain chemical environments. It is commonly selected for coastal areas, marine sites, wastewater treatment, chemical processing, salt spray exposure, outdoor wet industrial areas, and drainage systems exposed to more aggressive liquids.

316 stainless steel grating costs more than 304, but in corrosive environments it may reduce long-term maintenance and replacement. For buyers working near seawater, chlorinated cleaning chemicals, chemical drainage, or wastewater, 316 is often a better option than 304.

316L Stainless Steel 19-W-4 Grating

316L stainless steel is the low-carbon version of 316. It is often used where welding is involved and corrosion resistance near welded areas is important. Because stainless steel grating is a welded product, 316L may be considered for projects with stronger corrosion requirements, frequent wash-down, chemical exposure, or strict engineering specifications.

316L does not automatically mean the grating is stronger than 316. Its advantage is related mainly to weld-area corrosion resistance and material specification requirements. Buyers should choose 316L when the project environment or engineering standard calls for it.

How to Choose Between 304, 316, and 316L

For general indoor wet areas, 304 stainless steel is often enough. For coastal, marine, chemical, wastewater, or chloride environments, 316 is usually safer. For welded structures in more demanding corrosive applications, 316L may be preferred. Buyers should describe the liquid exposure, cleaning chemicals, chloride level, indoor or outdoor condition, and expected service life before selecting the grade.

Corrosion Resistance Advantages of Stainless Steel 19-W-4 Grating

The main reason buyers choose stainless steel 19-W-4 grating is corrosion resistance. In many projects, corrosion is not only an appearance issue. Rust can reduce service life, create contamination, increase maintenance, weaken parts over time, and make the facility look poorly maintained. Stainless steel grating helps reduce these risks when the correct grade and finish are selected.

Resistance in Wet Environments

Wet environments are common in drainage systems, food plants, beverage production, washing areas, wastewater facilities, and outdoor access platforms. Stainless steel resists rust better than raw carbon steel and often provides cleaner long-term appearance than galvanized steel in wet indoor environments. This makes it suitable for areas that require regular wash-down or moisture exposure.

Resistance in Chemical Areas

Chemical areas may expose grating to vapor, splash, cleaning agents, or process liquids. Stainless steel 316 or 316L is often preferred over 304 when chemical or chloride exposure is present. However, not all chemicals are compatible with all stainless steel grades. Buyers should identify the chemical type, concentration, temperature, and exposure frequency before selecting material.

Resistance in Marine and Coastal Sites

Marine and coastal environments contain chloride from seawater and salt air. Chloride can attack some stainless steels and can also shorten the service life of galvanized coatings. In these conditions, 316 stainless steel grating is usually preferred over 304. For severe marine exposure, the project may require special stainless grades or additional engineering review.

Clean Appearance and Hygiene

Stainless steel 19-W-4 grating is also chosen for clean appearance and hygiene. Food plants, pharmaceutical facilities, commercial kitchens, and clean drainage systems often avoid carbon steel because rust contamination is unacceptable. Stainless steel surfaces are easier to clean and maintain when properly finished.

Common Bearing Bar Sizes for Stainless Steel 19-W-4 Grating

The 19-W-4 specification defines the spacing pattern, but it does not define the bearing bar size. Stainless steel 19-W-4 grating can be manufactured with different bearing bar heights and thicknesses. The correct size depends on span, load, support condition, deflection requirement, and application.

Bearing Bar Height

Bearing bar height is one of the main factors controlling strength and stiffness. Taller bearing bars can carry higher loads or span longer distances. For short-span drainage covers or light walkways, smaller bearing bars may be suitable. For platforms, catwalks, or longer spans, taller bearing bars may be needed.

Bearing Bar Thickness

Bearing bar thickness affects strength, durability, welding area, and cost. Stainless steel is more expensive than carbon steel, so thickness should be selected carefully. A heavier bar may improve strength, but it also increases price and weight. A lighter bar may reduce cost, but it may not control deflection or load capacity if the span is too long.

Common Stainless Steel Bearing Bar Sizes

Common bearing bar sizes for stainless steel 19-W-4 grating include 1 inch x 1/8 inch, 1 inch x 3/16 inch, 1-1/4 inch x 1/8 inch, 1-1/4 inch x 3/16 inch, 1-1/2 inch x 1/8 inch, and 1-1/2 inch x 3/16 inch. Heavier sizes can be fabricated for longer spans or higher loads. The final choice should be confirmed according to actual load and span rather than selected only by standard catalog size.

Load Capacity Selection for Walkways, Platforms, and Drainage Areas

Load capacity for stainless steel 19-W-4 grating depends on bearing bar size, clear span, support condition, material grade, load type, and panel fixing method. The stainless steel grade improves corrosion resistance, but it does not replace correct structural design. A stainless steel grating panel still needs the right bearing bar size for the expected load.

Walkway Load Selection

For industrial and clean-area walkways, stainless steel 19-W-4 grating can provide a corrosion-resistant walking surface with good drainage. The supplier should confirm support spacing, walking traffic, cleaning conditions, and whether anti-slip surface is needed. If the walkway is wet, oily, or exposed to wash-down water, serrated surface may be recommended.

Platform Load Selection

Platforms may carry workers, maintenance tools, small equipment, and occasional temporary loads. The grating must be selected according to support beam spacing and load requirement. Stainless steel grating is often used in process platforms where corrosion resistance and wash-down cleaning are needed. For equipment loads or concentrated loads, engineering review may be required.

Drainage Area Load Selection

Drainage areas often combine water exposure with foot traffic or wheel traffic. Stainless steel 19-W-4 grating is suitable for drainage channels in food plants, chemical areas, wastewater plants, and marine sites. The clear trench opening determines the span. For pedestrian drainage covers, standard-duty stainless grating may be suitable. For forklifts or vehicles, heavier bearing bars and strong frame support may be needed.

Wheel Loads and Concentrated Loads

Wheel loads require extra attention. Small wheels from carts, pallet jacks, forklifts, or maintenance equipment can apply concentrated pressure. If stainless steel 19-W-4 grating is used where wheels pass over the surface, the buyer should provide wheel load, wheel size, traffic direction, support span, and frequency of use. In some cases, closer spacing or heavier grating may be needed.

Plain Surface vs Serrated Stainless Steel 19-W-4 Grating

Stainless steel 19-W-4 grating can be supplied with plain bearing bars or serrated bearing bars. Surface selection should be based on slip risk, cleaning requirements, application environment, and safety expectations. Both plain and serrated grating can be produced from 304, 316, or 316L stainless steel.

Plain Stainless Steel 19-W-4 Grating

Plain surface stainless steel grating has smooth-top bearing bars. It is suitable for many dry or regularly cleaned areas where slip risk is controlled. Plain grating is often easier to clean than serrated grating because the surface has fewer notches. This can be useful in food plants, clean drainage areas, commercial spaces, and hygienic facilities where cleaning efficiency is important.

Serrated Stainless Steel 19-W-4 Grating

Serrated stainless steel grating has notched bearing bars to improve slip resistance. It is suitable for wet floors, wash-down areas, marine platforms, wastewater treatment areas, outdoor walkways, chemical drainage zones, and industrial stairs. The serrated surface can improve traction, especially when the grating is exposed to water, oil, mud, or process residue.

Balancing Anti-Slip and Cleanability

In some clean industrial projects, buyers need both anti-slip performance and easy cleaning. Serrated surfaces improve traction but may hold more residue than plain surfaces. Plain surfaces are easier to wash but may be slippery in wet conditions. The final choice should consider cleaning method, worker safety, surface contamination, and inspection frequency.

Stair Treads and Wet Walkways

For stainless steel stair treads and wet walkways, serrated surface is often preferred. Stair treads may also include nosing plates and end plates for safer installation. In food or chemical environments, the nosing and welded areas should be cleaned and finished properly to avoid corrosion problems around welds.

Stainless Steel 19-W-4 Grating vs Galvanized 19-W-4 Grating

Stainless steel 19-W-4 grating and hot-dip galvanized 19-W-4 grating may look similar in open-grid structure, but they are selected for different reasons. Galvanized grating is usually made from carbon steel and protected with a zinc coating. Stainless steel grating is made from stainless steel alloy and relies on the corrosion resistance of the stainless steel material itself.

Initial Price Difference

Galvanized 19-W-4 grating usually has a lower initial price than stainless steel 19-W-4 grating. For general outdoor industrial use, galvanized steel is often cost-effective. Stainless steel costs more because the raw material price is higher and fabrication may require more careful handling and finishing.

Corrosion Resistance Difference

Galvanized grating performs well in many outdoor and wet environments, but the zinc coating can be affected by salt, strong chemicals, acidic conditions, and aggressive wastewater. Stainless steel grating, especially 316 or 316L, performs better in many corrosive environments. For food plants, chemical facilities, marine sites, coastal areas, and wastewater systems, stainless steel may provide better long-term value.

Maintenance Difference

Galvanized grating may require inspection for coating wear, damage, or corrosion over time. Stainless steel grating usually requires less rust-related maintenance in suitable environments, but it still needs cleaning to avoid surface contamination and corrosion spots. Stainless steel is not maintenance-free; it must be kept clean and free from carbon steel contamination, chloride buildup, or chemical residue.

Appearance and Hygiene Difference

Stainless steel grating has a cleaner appearance and is often preferred in hygienic or visible areas. Galvanized grating has a more industrial zinc finish. In food plants, clean drainage systems, pharmaceutical areas, and commercial projects, stainless steel often looks more suitable and is easier to maintain aesthetically.

How to Choose Between Them

Choose galvanized 19-W-4 grating for general outdoor industrial platforms, walkways, catwalks, and drainage covers where corrosion is moderate and budget is important. Choose stainless steel 19-W-4 grating for food processing, chemical exposure, coastal environments, marine areas, wastewater systems, clean facilities, and projects where rust contamination is unacceptable.

Standard Panel Sizes, Custom Cutting, and Fabrication Options

Stainless steel 19-W-4 grating can be supplied as standard panels or custom fabricated panels. Because stainless steel is more expensive than carbon steel, accurate cutting and layout planning are especially important. Good fabrication planning reduces material waste, improves installation accuracy, and avoids unnecessary cost.

Standard Panel Supply

Standard stainless steel grating panels may be supplied for stock, resale, or local fabrication. This option can be suitable for distributors, contractors, and workshops that need flexibility. However, buyers should still confirm bearing bar size, stainless steel grade, panel orientation, and finish before ordering standard panels.

Custom Cut-to-Size Panels

Custom cutting is common for platforms, drainage covers, trench covers, catwalks, equipment access panels, and stair treads. The manufacturer can cut the grating to required dimensions, add banding, notch around obstacles, fabricate frames, and prepare installation holes. For stainless steel grating, custom fabrication should be done carefully to avoid contamination and excessive heat distortion.

Drawing-Based Fabrication

Project drawings should show panel dimensions, bearing bar direction, support layout, cut-outs, notches, stair tread details, frames, clips, and installation sequence. For food plants, chemical facilities, and marine projects, drawings should also indicate stainless steel grade and surface finish requirements. If multiple panel sizes are used, each panel should be marked clearly for installation.

Panel Size and Handling

Large stainless steel grating panels can be heavy and difficult to handle. Smaller panels are easier to install and remove, but they create more joints. For drainage covers and maintenance access panels, removable size should be considered carefully. If workers need frequent access, lifting handles or smaller sections may be required.

Edge Banding, Notching, Frames, and Installation Preparation

Fabrication details make stainless steel 19-W-4 grating suitable for real project installation. Standard panels may need edge banding, notching, frames, lifting handles, clips, stair tread parts, or special surface treatment before they can be used on site.

Edge Banding

Edge banding is commonly used on cut stainless steel grating panels. It closes the open bearing bar ends, improves appearance, strengthens the panel perimeter, and makes the panel safer to handle. In clean facilities, banded edges also provide a more finished look and reduce exposed sharp ends.

Notching and Cut-Outs

Notching allows stainless steel grating to fit around pipes, columns, machines, walls, supports, drains, and process equipment. Accurate notching requires drawings or templates. Notched edges should often be banded to protect the panel and reduce sharp exposed areas. For food or chemical projects, notched and welded areas should be cleaned properly after fabrication.

Frames for Trench Covers and Drainage Covers

Stainless steel frames are often used for trench covers and drainage covers. A frame provides stable seating, protects trench edges, reduces panel movement, and improves installation accuracy. For removable covers, the frame should allow proper clearance without creating loose movement. For wet areas, the frame should also be designed for cleaning and drainage.

Installation Clips and Fixing Methods

Stainless steel grating panels may be fixed with clips, clamps, bolts, or welded attachment depending on the project. Clip fixing allows removal for maintenance. Bolting improves security. Welding may be used for permanent installation, but welded areas should be cleaned and finished properly to maintain corrosion resistance.

Stair Tread Preparation

Stainless steel 19-W-4 grating can be fabricated into stair treads with end plates, bolt holes, and nosing plates. Serrated surface is commonly selected for wet or outdoor stair treads. In food plants, chemical sites, and marine environments, stair tread welds should be cleaned carefully because stairs are frequently exposed to water and foot traffic.

Applications in Food Plants, Chemical Areas, Marine Sites, and Drainage Systems

Stainless steel 19-W-4 grating is used where corrosion resistance, cleanliness, drainage, and safe access are important. It is especially suitable for environments that are wet, washed frequently, exposed to chemicals, or located near salt air.

Food Plants

Food processing plants often use stainless steel grating because rust contamination is not acceptable. Stainless steel 19-W-4 grating can be used for wash-down platforms, drainage channels, working walkways, equipment access floors, and inspection covers. 304 stainless steel is common for many food areas, while 316 may be used where cleaning chemicals or chlorides are stronger.

Chemical Areas

Chemical facilities may require 316 or 316L stainless steel grating depending on the chemical exposure. Grating can be used around tanks, process lines, drainage channels, maintenance platforms, and access walkways. Because chemicals vary widely, buyers should provide the chemical type, concentration, temperature, and exposure level before selecting the grade.

Marine and Coastal Sites

Marine and coastal projects use stainless steel grating because salt air and seawater exposure can corrode ordinary steel quickly. 316 stainless steel is usually preferred for these applications. Stainless steel 19-W-4 grating may be used for docks, offshore access areas, marine walkways, coastal platforms, and drainage covers. Serrated surface may be required where surfaces are wet or slippery.

Wastewater and Drainage Systems

Wastewater treatment plants and drainage systems often require grating that can resist moisture, gases, and corrosive liquids. Stainless steel 316 or 316L may be selected depending on water chemistry. The open structure of 19-W-4 grating supports drainage, ventilation, and inspection, while stainless steel improves corrosion resistance.

Commercial and Architectural Drainage

In commercial buildings, shopping areas, public facilities, and architectural drainage systems, stainless steel grating may be selected for appearance and cleanliness. The surface finish can be brushed, polished, or cleaned depending on project requirements. Opening size and surface safety should be checked for public access.

Industrial Platforms and Utility Access

Stainless steel 19-W-4 grating is also used in industrial platforms, pipe racks, pump rooms, clean utility areas, and service corridors. It allows drainage and ventilation while resisting corrosion. For maintenance access, panels can be fabricated with clips, frames, or removable sections.

Quality Control for Material Grade, Welding, Flatness, Dimensions, and Surface Finish

Quality control is especially important for stainless steel 19-W-4 grating because buyers often choose stainless steel for demanding environments. If material grade, welding quality, surface cleaning, or dimensions are poorly controlled, the grating may not deliver the expected corrosion resistance or installation performance.

Material Grade Verification

The supplier should control stainless steel grade according to the order requirement. 304, 316, and 316L have different corrosion resistance and cost. Mixing grades or using the wrong material can create serious project problems. For critical projects, buyers may request material certificates or grade verification.

Welding Quality Control

Welding quality affects strength and corrosion performance. Welds should be strong enough to hold cross bars, banding, frames, end plates, and accessories. Stainless steel welding can create heat tint and surface changes around the weld area. If the environment is corrosive, these areas should be cleaned, pickled, or passivated as required.

Flatness Control

Flatness affects installation safety and appearance. Warped grating panels may rock, create trip hazards, or fail to sit properly in frames. Stainless steel fabrication requires careful control because welding heat can cause distortion. For drainage covers, trench covers, and visible commercial areas, flatness should be checked before shipment.

Dimension Inspection

Custom stainless steel grating panels must match drawings. Length, width, diagonal tolerance, bearing bar direction, notching, frame fit, hole positions, and stair tread dimensions should be inspected. Incorrect dimensions can cause installation delay and may be costly because stainless steel panels are expensive to rework.

Surface Finish Control

Surface finish is important for corrosion resistance and appearance. Stainless steel should be free from carbon steel contamination, heavy burrs, sharp edges, and serious welding discoloration. Pickling and passivation can improve corrosion performance after welding. For food and clean areas, surface smoothness and cleanability should be considered.

Packaging and Handling

Stainless steel grating should be packed carefully to avoid scratches, deformation, and contamination. It should not be packed in a way that allows carbon steel particles or rust to contaminate the stainless surface. For export projects, proper packing, labeling, and separation are important.

What Buyers Should Provide Before Requesting a Quotation

To get an accurate quotation for stainless steel 19-W-4 grating, buyers should provide complete project information. Stainless steel grating price changes significantly according to grade, bearing bar size, panel size, fabrication, finish, and quantity. Clear information helps the supplier recommend the correct specification and avoid unnecessary over-design or under-design.

Stainless Steel Grade

The buyer should specify 304, 316, or 316L if the grade is already known. If not, the working environment should be described clearly. Important details include indoor or outdoor use, coastal exposure, chemical exposure, food processing requirements, cleaning chemicals, wastewater conditions, and expected corrosion resistance.

Bearing Bar Size and Span

If the buyer knows the bearing bar size, it should be included in the inquiry. If not, the clear span and load requirement should be provided. The clear span is the unsupported distance between supports. It is one of the most important factors for selecting bearing bar size.

Surface Type and Finish

The buyer should specify plain or serrated surface. For wet or slippery areas, serrated surface may be recommended. Surface finish requirements should also be stated, such as pickled, passivated, brushed, polished, or cleaned after welding. Food plants and chemical projects may have stricter finish requirements than general industrial projects.

Panel Size and Fabrication

Panel width, length, bearing bar direction, quantity, and fabrication details should be provided. Fabrication may include cutting, banding, notching, frames, lifting handles, stair tread end plates, nosing plates, bolt holes, or installation clips. Drawings are strongly recommended for custom panels.

Application and Load

The supplier should know whether the grating will be used for walkways, platforms, drainage covers, trench covers, stair treads, catwalks, food processing floors, chemical areas, marine access, or wastewater systems. Load information should include pedestrian traffic, carts, forklifts, equipment, or vehicles. If wheel loads are involved, the wheel size and load should be provided if available.

Factory Supply and Custom Fabrication Support

Stainless steel 19-W-4 grating is often ordered for project-specific applications rather than simple stock use. Many buyers need custom panel sizes, banded edges, notches, frames, stair treads, lifting handles, installation clips, and surface finishing. A manufacturer with stainless steel fabrication experience can help reduce installation problems and improve long-term performance.

Anping County Chuansen Silk Screen Products Co., Ltd. supplies stainless steel 19-W-4 grating for food plants, chemical areas, marine sites, drainage systems, walkways, platforms, catwalks, trench covers, and stair treads. From a factory perspective, the key is to confirm stainless steel grade, bearing bar size, span, load, surface type, fabrication details, and finish requirement before production. Stainless steel is a higher-value material, so accurate drawings and clear technical communication are important for cost control.

For food plant projects, the supplier should focus on cleanable surfaces, proper weld cleaning, and suitable grade selection. For chemical areas, material compatibility and surface finishing are important. For marine sites, 316 stainless steel and anti-slip surface may be required. For drainage and trench cover projects, frame support, removable panel size, bearing bar direction, and load capacity should be confirmed carefully before fabrication.

Stainless Steel 19-W-4 Grating Related Questions

What is stainless steel 19-W-4 grating?

Stainless steel 19-W-4 grating is welded stainless steel bar grating with bearing bars spaced at 19/16 inch centers and cross bars spaced at 4 inch centers. It is commonly used for corrosion-resistant walkways, platforms, drainage covers, trench covers, stair treads, food plant floors, chemical areas, marine access, and wastewater facilities. The final performance depends on stainless steel grade, bearing bar size, span, load, surface type, and fabrication quality.

Is 304 or 316 stainless steel better for grating?

304 stainless steel grating is suitable for many indoor wet, food processing, commercial, and general corrosion-resistant applications. 316 stainless steel grating is better for coastal, marine, wastewater, chloride, and chemical environments because it offers stronger corrosion resistance than 304. If the grating is welded and exposed to more demanding corrosion conditions, 316L may be considered. The best choice depends on the actual environment and cleaning chemicals.

Is stainless steel grating better than galvanized grating?

Stainless steel grating is better than galvanized grating when corrosion resistance, hygiene, clean appearance, or long-term performance in aggressive environments is required. Galvanized grating is more economical and suitable for many general outdoor industrial projects. Stainless steel 19-W-4 grating is usually preferred for food plants, chemical areas, marine sites, wastewater systems, and drainage areas where rust contamination or strong corrosion is a concern.
