Road trench cover plates are heavy-duty cover systems used to protect open trenches, drainage channels, utility openings, cable routes, pipe trenches,…
Road trench cover plates are heavy-duty cover systems used to protect open trenches, drainage channels, utility openings, cable routes, pipe trenches, road cuts, construction excavations, and municipal maintenance areas where cars, trucks, forklifts, pedestrians, or construction equipment may pass. A road trench cover plate must provide safe load transfer, stable seating, anti-slip surface performance, proper drainage or inspection access, and enough structural strength for repeated vehicle movement. For buyers and contractors, the correct road trench cover plate should be selected according to trench width, traffic load, plate thickness, steel grade, grating bearing bar size, support frame, edge reinforcement, surface finish, fixing method, corrosion environment, and whether the plate needs to be removable or fixed.
Road trench cover plates are used when a trench or channel crosses a traffic area and must be covered safely. These covers may be required during road construction, utility installation, drainage maintenance, pipeline repair, cable trench construction, industrial yard renovation, or municipal infrastructure work. Unlike ordinary pedestrian trench covers, road trench cover plates must handle wheel loads, impact, vibration, and repeated traffic.
In traffic areas, safety is not only about whether the cover plate can support the load once. It must remain stable when vehicles pass repeatedly. It should not rock, slide, lift, bend excessively, create loud noise, or form a dangerous height difference with the road surface. For drainage trenches, the cover should also allow water flow or be designed with openings, grating structure, or removable access for cleaning.
Road trench cover plates are exposed to concentrated wheel loads. A car, truck, forklift, or service vehicle transfers load through relatively small tire contact areas. This creates higher local stress than pedestrian traffic. If the plate is too thin, if the frame is weak, or if the support ledge is too narrow, the cover may deform or move during use.
| Project Type | Common Cover Requirement | Main Design Focus |
|---|---|---|
| Road construction trench | Temporary traffic passage over open excavation | Plate thickness, anti-slip surface, stable fixing |
| Municipal drainage channel | Water flow and vehicle load support | Drainage opening, heavy-duty frame, corrosion protection |
| Utility trench | Access to cables, pipes, or service lines | Removable design, lifting points, secure seating |
| Industrial road trench | Forklift, truck, or service vehicle movement | Wheel load, frame strength, edge reinforcement |
| Parking area or yard trench | Repeated vehicle crossing and drainage | Noise control, movement prevention, surface traction |
Road trench cover plates are used in public roads, factory roads, construction access routes, industrial yards, warehouse driveways, parking lots, municipal drainage systems, service roads, power plant roads, logistics areas, and temporary work zones. The application determines whether the cover should be a steel grating cover, solid steel plate cover, chequered plate cover, galvanized cover, framed cover, or removable heavy-duty cover.
During road repair or utility construction, temporary trench cover plates allow vehicles and pedestrians to pass over open trenches safely. These covers usually need strong steel plates, anti-slip surface treatment, visible markings, and secure positioning to prevent movement.

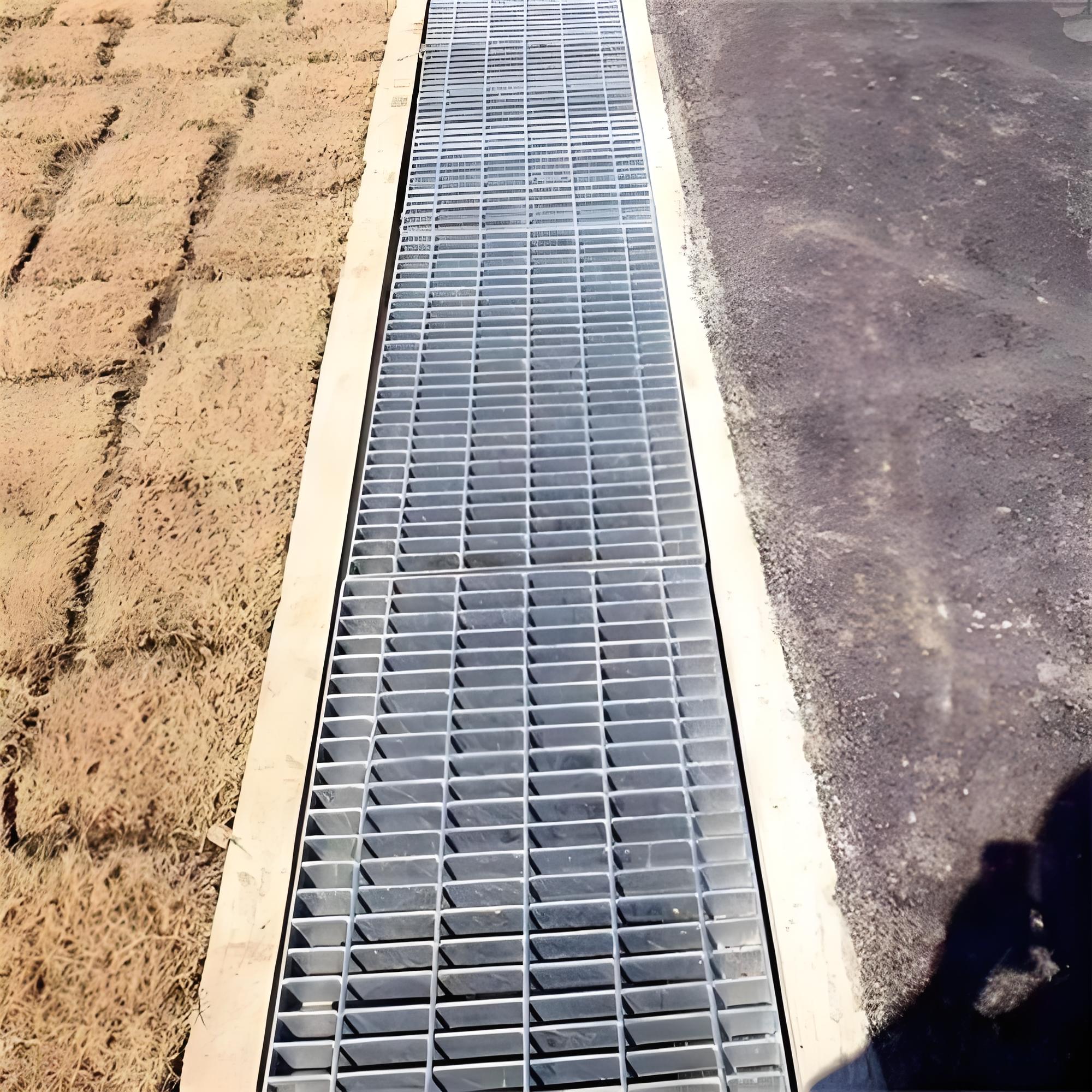

Road drainage trenches often use grating trench covers because water must pass through the cover into the channel. Heavy-duty steel grating or cast-style drainage covers may be selected depending on vehicle load, channel width, drainage requirement, and local project standards.
Industrial yards may have trenches for drainage, cables, pipelines, or utility services. These areas often have forklifts, trucks, carts, and heavy equipment. Covers must be stronger than ordinary walkway trench covers and should sit firmly inside a steel frame or concrete channel edge.
Parking areas and commercial driveways need trench covers that support passenger vehicles and light trucks. Anti-slip surface, noise control, and flush installation are important because the covers are exposed to frequent traffic.
Municipal projects often require removable road trench cover plates for inspection and cleaning. Covers may need lifting holes, anti-theft fixing, hinges, bolt locking, or panel numbering to support maintenance work.
| Application | Recommended Cover Type | Key Requirement |
|---|---|---|
| Temporary roadwork | Solid steel road plate or chequered steel plate | High load support, anti-slip surface, visible marking |
| Road drainage trench | Heavy-duty steel grating trench cover | Drainage flow, wheel load, frame stability |
| Factory vehicle road | Reinforced steel cover plate or heavy grating cover | Forklift load, repeated traffic, edge reinforcement |
| Parking area | Galvanized framed trench cover | Noise control, corrosion resistance, flush installation |
| Utility trench | Removable framed cover plate | Inspection access, lifting holes, secure fixing |
Load capacity is the most important factor for road trench cover plates. A cover plate used for pedestrians or light carts cannot be used directly for cars, trucks, forklifts, or construction vehicles. Vehicle loads are concentrated through wheels and may cause bending, local deformation, movement, or fatigue if the cover is not designed correctly.
Passenger cars create lower loads than trucks, but the trench cover still needs stable support and proper thickness. Parking lots, residential roads, service roads, and light vehicle areas may use medium-duty or heavy-duty trench covers depending on trench span and traffic frequency.
Trucks create higher axle loads and stronger impact when passing over covers. Road trench cover plates for trucks usually require thicker steel plates, reinforced frames, heavy-duty grating, or engineering review. The support frame and surrounding concrete are also critical.
Forklifts can create severe concentrated wheel loads, especially with small hard tires and heavy loads. Forklift trench covers should be selected with wheel load, tire size, traffic direction, trench span, support frame, and repeated use in mind. A cover that supports a car may not be suitable for a loaded forklift.
Road trench covers are exposed to repeated rolling loads. Even if a cover can hold a static load, repeated vehicle movement may cause fatigue, noise, loosening, or deformation. Stable fixing and proper support are important for long-term performance.
| Traffic Type | Load Characteristic | Design Focus |
|---|---|---|
| Pedestrian and bicycle | Low load but frequent contact | Anti-slip surface, small gaps, flush edges |
| Passenger cars | Moderate wheel load | Plate thickness, stable frame, corrosion protection |
| Light trucks | Higher axle load and repeated traffic | Reinforced cover and proper support span |
| Heavy trucks | High wheel load and impact | Project-specific heavy-duty design |
| Forklifts | Concentrated small-wheel load | Wheel load calculation, thick plate or heavy grating, strong frame |
Plate thickness, trench span, and structural strength must be selected together. A thicker plate is usually stronger, but thickness alone does not solve every problem. The clear span, support ledge, steel grade, frame design, reinforcement, and wheel load all affect road trench cover performance.
The clear trench span is the unsupported opening between both sides of the trench. This dimension is more important than the outside cover width. A wider trench requires a stronger cover. Buyers should always provide the actual clear opening and the support ledge width.
Solid steel road plates and chequered plates rely on plate thickness and support condition to resist bending. Thin plates may deflect or create noise when vehicles pass. Very thick plates provide more strength but are heavier, more expensive, and harder to remove.
For grating road trench covers, bearing bar height, thickness, spacing, and direction are more important than overall panel thickness. The bearing bars must span across the trench opening. If the panel is placed in the wrong direction, load capacity is greatly reduced.
For wider trenches or heavier vehicles, reinforcement ribs, welded stiffeners, angle frames, support beams, or heavy-duty grating frames may be required. Reinforcement can improve load capacity without using an excessively thick top plate.
| Design Item | Why It Matters | Buyer Should Provide |
|---|---|---|
| Clear span | Controls bending stress and cover selection | Actual trench opening width |
| Support ledge | Transfers load from cover to trench edge | Ledge width, frame material, support condition |
| Plate thickness | Affects solid cover strength and deflection | Required load and traffic type |
| Steel grade | Affects strength and fabrication performance | S235, S275, S355, or project-specified grade |
| Reinforcement | Improves strength for wide spans or heavy loads | Whether stiffeners, frames, or ribs are allowed |
Anti-slip surface design is important for road trench cover plates because vehicles, pedestrians, bicycles, and workers may pass over them in wet or dusty conditions. Smooth steel plates can become slippery when exposed to rain, mud, oil, or construction dust.
Chequered plate road trench covers have raised patterns that improve traction compared with smooth steel plate. They are commonly used for temporary road plates, workshop trench covers, industrial floors, and vehicle access areas where a solid cover is required.
Serrated grating trench covers use toothed bearing bars for better foot traction. They are useful for drainage channels, wet areas, road edges, outdoor factory yards, and pedestrian crossing zones. For vehicle wheels, the opening size and wheel type should also be considered.
Some road trench cover plates may use anti-slip coating, textured paint, or surface aggregate treatment. These coatings can improve friction but may wear under repeated vehicle traffic. The coating should match the expected traffic and maintenance plan.
Anti-slip surface design should not block drainage or create uneven wheel impact. For road applications, the surface should balance traction, noise control, vehicle comfort, water flow, and cleanability.
| Anti-Slip Option | Main Benefit | Suitable Use |
|---|---|---|
| Chequered plate | Raised pattern improves traction on solid covers | Road plates, workshop covers, vehicle access covers |
| Serrated steel grating | Improves foot traction in wet drainage areas | Road drainage, industrial drains, pedestrian crossing areas |
| Anti-slip coating | Increases surface friction | Temporary road covers and high-risk pedestrian areas |
| Textured composite surface | Provides lightweight anti-slip access | Utility trenches and selected light-duty road areas |

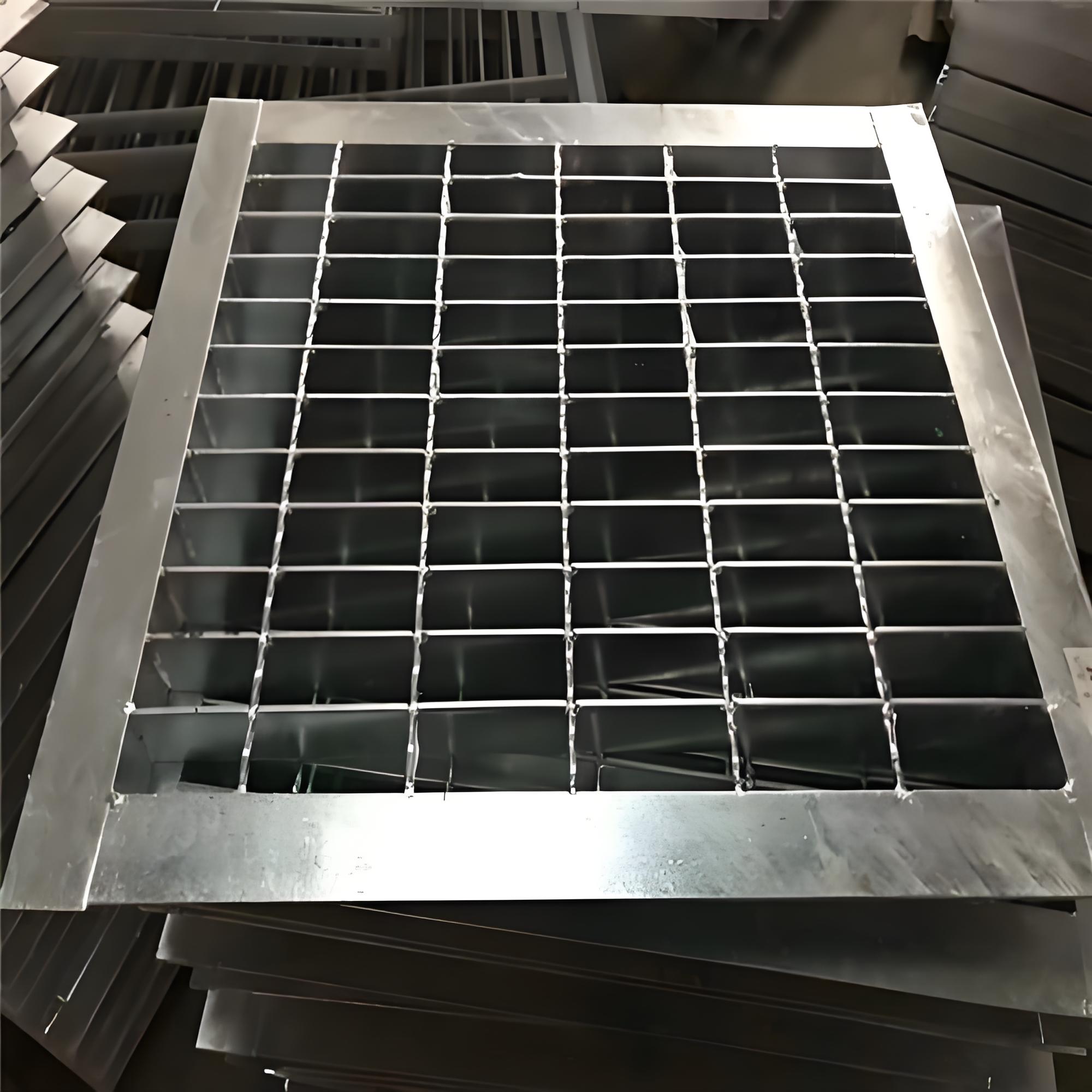

Road trench cover plates can be supplied as steel grating covers, chequered plate covers, solid steel plate covers, reinforced plate covers, framed covers, or custom fabricated road covers. Each option has different advantages.
Steel grating road trench covers are suitable where drainage is required. The open-grid structure allows water to pass through into the trench. Heavy-duty steel grating can be used for vehicle areas if the bearing bars, spacing, frame, and support structure are designed correctly.
Chequered plate covers provide a solid anti-slip surface. They are suitable for temporary access, construction roads, cable trenches, workshops, and areas where small objects should not fall into the trench.
Solid steel road plates are often used for temporary trench covering during construction. They provide full coverage and can carry heavy traffic when properly selected. However, they can be heavy, noisy, and slippery if no surface treatment is added.
Reinforced covers may include welded stiffeners, underside ribs, frames, or additional support bars. They are used for wider trenches, repeated vehicle loads, or situations where a simple flat plate is not enough.
| Cover Option | Main Advantage | Main Limitation | Best Use |
|---|---|---|---|
| Steel grating cover | Excellent drainage and lower weight | Openings may not suit small wheels | Road drains and wet industrial areas |
| Chequered plate cover | Anti-slip solid surface | Limited drainage unless holes or gaps are added | Construction roads, cable trenches, workshops |
| Solid steel plate | Full coverage and strong support | Heavy and can be slippery if smooth | Temporary roadwork and traffic access |
| Reinforced steel cover | Higher strength for wider spans | Higher fabrication cost | Forklift routes, truck areas, wide trenches |
| Framed trench cover | Stable seating and better load transfer | Requires accurate installation | Permanent road drainage and municipal projects |
Road trench cover plates are often used outdoors, where they face rain, road water, mud, salt, dust, and temperature changes. Hot-dip galvanizing is commonly used for carbon steel road trench covers because it protects the steel from corrosion and extends service life.
Untreated carbon steel can rust quickly outdoors. Road trench covers are often exposed to water and dirt, and corrosion can weaken the cover, damage the surface, and make handling more difficult. Hot-dip galvanizing provides a zinc coating over the steel surface.
For better corrosion protection, cutting, welding, drilling, banding, and frame fabrication should usually be completed before hot-dip galvanizing. This allows zinc coating to cover edges, welds, holes, and fabricated areas.
Hot-dip galvanized trench covers are commonly used in road drainage channels, factory yards, municipal roads, outdoor utility trenches, parking lots, water treatment plants, and industrial access roads.
If galvanized road trench cover plates are cut, drilled, or welded after galvanizing, the damaged zinc coating should be repaired. This is important because exposed steel can begin to corrode in outdoor road environments.
| Surface Finish | Corrosion Protection | Price Level | Suitable Use |
|---|---|---|---|
| Black steel | Low | Lower | Temporary dry use or further processing |
| Painted steel | Basic | Medium | Temporary or low-corrosion areas |
| Hot-dip galvanized steel | Good outdoor protection | Medium to high | Outdoor road trenches and drainage covers |
| Stainless steel | High depending on grade | High | Coastal, chemical, or severe corrosion areas |
Edge reinforcement and frame design are very important for road trench cover plates because vehicle loads can cause movement, bending, and edge damage. A strong cover plate without proper support can still be unsafe if the trench edge or frame is weak.
Edge reinforcement helps prevent cover edges from bending or wearing under repeated traffic. Reinforcement may include flat bar edging, angle steel, welded ribs, steel frames, or thicker edge sections depending on the cover type.
A support frame provides a stable seat for the cover plate. It helps distribute load into concrete, steel beams, or the surrounding road structure. Frames are especially important for permanent road trench covers, vehicle drainage channels, and heavy industrial routes.
Frames, locating stops, anti-movement lugs, bolts, or locking devices can prevent the cover from sliding or lifting when vehicles pass. This is important in areas with braking, turning, vibration, or repeated wheel impact.
The cover should be installed as flush as possible with the surrounding road surface. Uneven height can create impact, noise, trip hazards, vehicle discomfort, and faster wear.
| Stability Design | Function | Recommended Use |
|---|---|---|
| Edge banding | Improves cover edge strength and finish | Grating trench covers and removable panels |
| Welded stiffeners | Improves bending resistance | Wide trenches and heavy vehicle areas |
| Angle frame | Provides stable seating and load transfer | Permanent road trench installations |
| Locating lugs | Prevents sliding or shifting | Road plates and removable covers |
| Bolted fixing | Prevents lifting and movement | Traffic areas and public projects |
Road trench cover plates can be installed as fixed or removable covers. The correct method depends on whether the trench needs regular inspection, whether vehicles pass frequently, whether theft prevention is needed, and whether the cover is temporary or permanent.
Removable covers are useful for drainage cleaning, cable maintenance, utility inspection, and temporary trench access. They should include lifting holes, handles, or lifting points if the plates are heavy. Removable covers must sit firmly and should not move under vehicle traffic.
Bolted covers are secure but can still be removed when necessary. This is a good option for public roads, industrial roads, and drainage channels where cover movement must be controlled but maintenance access is still required.
Welded covers are fixed permanently to the frame or support. They are suitable for trenches that do not need regular access. If covers are galvanized, welding after galvanizing requires coating repair around weld points.
Hinged covers are used when frequent inspection is needed and the cover should remain connected to the frame. Hinges must be strong enough for the cover weight and traffic environment.
Temporary road plates used during construction should be placed with proper overlap, anti-slip surface, edge ramping if needed, warning markings, and movement prevention. Temporary covers must still be strong enough for traffic loads.
| Installation Method | Main Advantage | Suitable Application |
|---|---|---|
| Loose removable placement | Easy inspection and cleaning | Light traffic drainage and utility trenches |
| Bolted fixing | Secure but removable | Public roads, parking areas, industrial yards |
| Welded fixing | Permanent and strong | Non-access steel trench covers |
| Hinged cover | Convenient repeated access | Utility pits and inspection trenches |
| Framed installation | Stable seating and better load transfer | Road drains and vehicle-load trenches |
Road trench cover plates must balance traffic safety with drainage, inspection, and maintenance needs. Some trenches are used mainly for water drainage, while others protect cables, pipes, or utility lines. The cover design should match the trench function.
If the trench collects road water or surface runoff, the cover must allow water to enter the channel. Steel grating covers are usually better for drainage. Solid steel plates may need slots, holes, side gaps, or drainage openings if water flow is required.
Utility trenches and drainage channels need inspection. If the trench must be checked regularly, the cover should be removable or hinged. Lifting holes, handles, or marked lifting points can improve maintenance efficiency.
Drainage channels may collect mud, leaves, stones, industrial residue, or road debris. Removable grating covers make cleaning easier. Panel weight should be controlled so workers can remove covers safely.
If covers are opened often, smaller panels or lifting handles may be better. If covers are rarely opened, bolted or fixed installation may improve traffic stability.
| Requirement | Recommended Design | Buyer Note |
|---|---|---|
| Fast water drainage | Steel grating or slotted cover | Confirm open area and channel flow |
| Cable or pipe protection | Solid steel or chequered plate cover | Prevents objects from falling into trench |
| Regular inspection | Removable or hinged cover | Add lifting holes, handles, or panel numbers |
| Road debris control | Proper opening size and cleaning access | Avoid openings that clog too easily |
| Vehicle traffic stability | Bolted, framed, or locating design | Prevents movement during passing |
Noise, movement, and plate lifting are common problems in road trench cover projects. These issues may occur when the cover does not fit properly, the support ledge is uneven, the frame is weak, the plate is too thin, or no fixing method is used. Repeated vehicle passing can make these problems worse.
The cover should match the trench frame or support opening accurately. If the cover is too small, it can shift. If it is too large, it may not sit flat. Proper tolerance control reduces movement and noise.
The cover must sit on a flat and strong support ledge. Uneven seating causes rocking and impact noise. For permanent road trench covers, a steel frame is often used to provide stable support.
Bolts, locating pins, lugs, clips, locking bars, or welded stops can reduce sliding and lifting. These details are useful in traffic areas where vehicles brake, turn, or pass repeatedly.
In some applications, rubber pads or noise-reducing strips can be added between the cover and frame. These can reduce rattling, but the material must be suitable for the load, weather, and maintenance conditions.
Thin plates may flex under vehicles and create noise. Reinforcement ribs or thicker plates can reduce deflection. For steel grating covers, proper bearing bar size and frame support are important.
| Problem | Common Cause | Recommended Solution |
|---|---|---|
| Rattling noise | Loose fit or uneven support | Improve frame accuracy, add pads, or use bolted fixing |
| Cover sliding | No locating device or too much clearance | Add locating lugs, stops, bolts, or clips |
| Plate lifting | Vehicle impact or poor seating | Use secure fixing and stronger frame support |
| Excessive bending | Insufficient thickness or weak grating bars | Increase plate thickness, bearing bar size, or add reinforcement |
| Uneven road transition | Cover not flush with road surface | Adjust frame height and cover level |
Road trench cover plates are often custom fabricated because trench sizes, road conditions, load requirements, and installation methods vary by project. Custom fabrication helps improve fit, safety, and long-term performance.
Custom covers can be made according to the exact trench width, length, support ledge, and frame dimension. Accurate cutting helps prevent unsafe gaps, rocking, and installation delays.
Welding may be used for frames, stiffeners, lifting parts, handles, hinges, locating lugs, and edge reinforcement. Heavy-duty road covers require strong welding because they face repeated traffic impact.
Removable covers may need lifting holes, handles, recessed lifting points, or tool lifting slots. These features help workers remove the covers for cleaning, inspection, or repair. For traffic areas, lifting details should not create trip hazards or wheel impact problems.
Surface treatment options include black steel, painted finish, hot-dip galvanizing, anti-slip coating, stainless steel finish, or special warning paint. Outdoor road covers usually need corrosion protection.
For large projects, panels may need numbering, size marks, load marks, or installation location marks. This helps workers install each cover in the correct position.
| Custom Option | Purpose | Recommended Use |
|---|---|---|
| Cut-to-size panel | Matches trench opening and frame | All project-based road trench covers |
| Welded stiffeners | Improves strength and reduces deflection | Wide spans and vehicle load areas |
| Lifting holes | Allows tool-assisted removal | Heavy removable covers |
| Handles | Supports easier maintenance access | Inspection and utility trench covers |
| Hot-dip galvanizing | Protects against outdoor corrosion | Road drainage and industrial outdoor use |
| Warning marking | Improves visibility and site safety | Temporary roadwork and public areas |
Quality control is essential for road trench cover plates because these covers are used in traffic areas where failure can create serious safety risks. A reliable manufacturer should check material, dimensions, welding, load design, flatness, edge condition, surface finish, packing, and accessories before delivery.
The steel grade, plate thickness, grating bearing bar size, frame material, and reinforcement parts should be checked according to order requirements. If the project specifies S235, S275, S355, stainless steel, or galvanized finish, the material should match the quotation and drawings.
Welded frames, stiffeners, handles, hinges, grating banding, and locating lugs should be inspected. Weak welding can cause cover failure, loose parts, or movement during vehicle passing.
Length, width, diagonal difference, frame fit, hole position, support seating, cover clearance, and panel flatness should be checked. Accurate dimensions help prevent noise, rocking, unsafe gaps, and installation problems.
Road trench covers should sit flat on the support frame. Warped covers may rock under traffic and create noise or safety hazards. Flatness is especially important for solid steel road plates and framed trench covers.
Hot-dip galvanized covers should be checked for zinc coverage, bare spots, sharp zinc points, zinc buildup, and coating damage. Chequered plates should be checked for pattern condition and sharp edges. Painted or coated covers should be checked for coverage and adhesion.
| Quality Control Item | What to Check | Why It Matters |
|---|---|---|
| Material | Steel grade, thickness, bearing bar size, frame material | Ensures correct load capacity and durability |
| Welding | Frames, stiffeners, handles, hinges, grating banding | Prevents structural weakness and loose parts |
| Dimensions | Length, width, diagonal, holes, seating clearance | Improves fit and reduces movement |
| Flatness | Warping, rocking, uneven surface | Improves road safety and noise control |
| Surface finish | Galvanizing, paint, coating, anti-slip pattern, burrs | Improves corrosion resistance and handling safety |
| Accessories | Bolts, lifting handles, locking parts, labels | Supports installation and maintenance |
What are road trench cover plates used for?
Road trench cover plates are used to cover trenches, road cuts, drainage channels, utility trenches, cable routes, and construction openings where cars, trucks, forklifts, pedestrians, or maintenance vehicles may pass. They provide a safe traffic surface while protecting the trench and allowing drainage, inspection, or maintenance access when required.
How thick should a road trench cover plate be?
The required thickness depends on trench width, clear span, traffic type, wheel load, steel grade, support ledge, and whether reinforcement or a frame is used. Pedestrian and light vehicle areas may use lighter covers, while forklift, truck, and road traffic areas require thicker plates, heavy-duty grating, reinforced designs, or engineered frames. Buyers should provide trench dimensions and load requirements before selecting thickness.
Which is better for road trenches, steel grating or solid steel plate?
Steel grating is better when drainage and ventilation are required because water can pass through the openings. Solid steel plate or chequered plate is better when a closed surface is needed for temporary road access, cable protection, or continuous wheel movement. For road traffic, both options must be designed according to load, trench span, support frame, anti-slip requirement, and corrosion environment.
