Stainless steel trench cover

Stainless steel trench cover is a premium drainage solution manufactured from high-grade 304 or 316L stainless steel, engineered to provide exceptional corrosion resistance, structural integrity, and aesthetic appeal for modern drainage systems. Unlike traditional carbon steel or cast iron alternatives, this specialized trench cover offers superior performance in humid, chemical-exposed, or high-salt environments while maintaining a sleek, clean appearance that complements contemporary architectural designs. Combining efficient water drainage, reliable load-bearing capacity, and long-term durability, stainless steel trench cover has become the preferred choice for critical applications in food processing, pharmaceuticals, marine facilities, commercial complexes, and municipal infrastructure projects demanding hygiene, corrosion resistance, and longevity. Manufactured through precision cutting, welding, and surface treatment processes, it meets stringent international quality standards and can be fully customized to meet specific project requirements, offering a maintenance-free, cost-effective drainage solution for both residential and industrial applications.

Definition and Manufacturing Process of Stainless Steel Trench Cover

Stainless steel trench cover is a specialized drainage component designed to safely cover trenches, channels, and drainage ditches while facilitating efficient water passage, constructed exclusively from austenitic stainless steel alloys—primarily 304 (18-8) and 316L (marine-grade) materials. This product is defined by its chromium-nickel content, which forms a passive protective oxide layer on the surface, delivering inherent corrosion resistance without requiring additional coatings or treatments. The manufacturing process begins with high-quality stainless steel sheets or flat bars, precisely cut using laser or plasma cutting technology to ensure dimensional accuracy and clean edges.

For grating-style covers, load-bearing flat bars and cross bars are assembled through precision TIG or MIG welding, creating a rigid, uniform grid structure with consistent spacing and structural stability. Solid plate covers undergo precision stamping, perforating, or pressing to form various drainage patterns, including slots, holes, or decorative designs. After fabrication, all covers undergo comprehensive surface treatment—either brushed, polished, or passivated—to enhance appearance, improve corrosion resistance, and remove contaminants from the welding process.

Quality control measures include material composition verification, dimensional accuracy inspection, load-bearing testing, and corrosion resistance assessment, ensuring compliance with EN 124, ASTM E91, and other relevant international standards. Each stainless steel trench cover is individually inspected before packaging, guaranteeing consistent quality, performance, and aesthetic appeal for even the most demanding applications.

Main Types of Stainless Steel Trench Cover

Stainless steel trench cover is available in diverse configurations classified by structure, design, drainage pattern, and application, each engineered for specific performance requirements and installation scenarios.

Stainless steel grating trench cover represents the most common type, featuring an open grid construction of bearing bars and cross bars. Available in welded, press-locked, or plug-in constructions, this type offers excellent drainage efficiency (up to 83.3% open area) and high load-bearing capacity. Standard specifications include G253, G303, G325, and G405, with various bar heights, thicknesses, and spacing options to meet different load and drainage requirements. Ideal for industrial, municipal, and commercial applications requiring both drainage and strength.

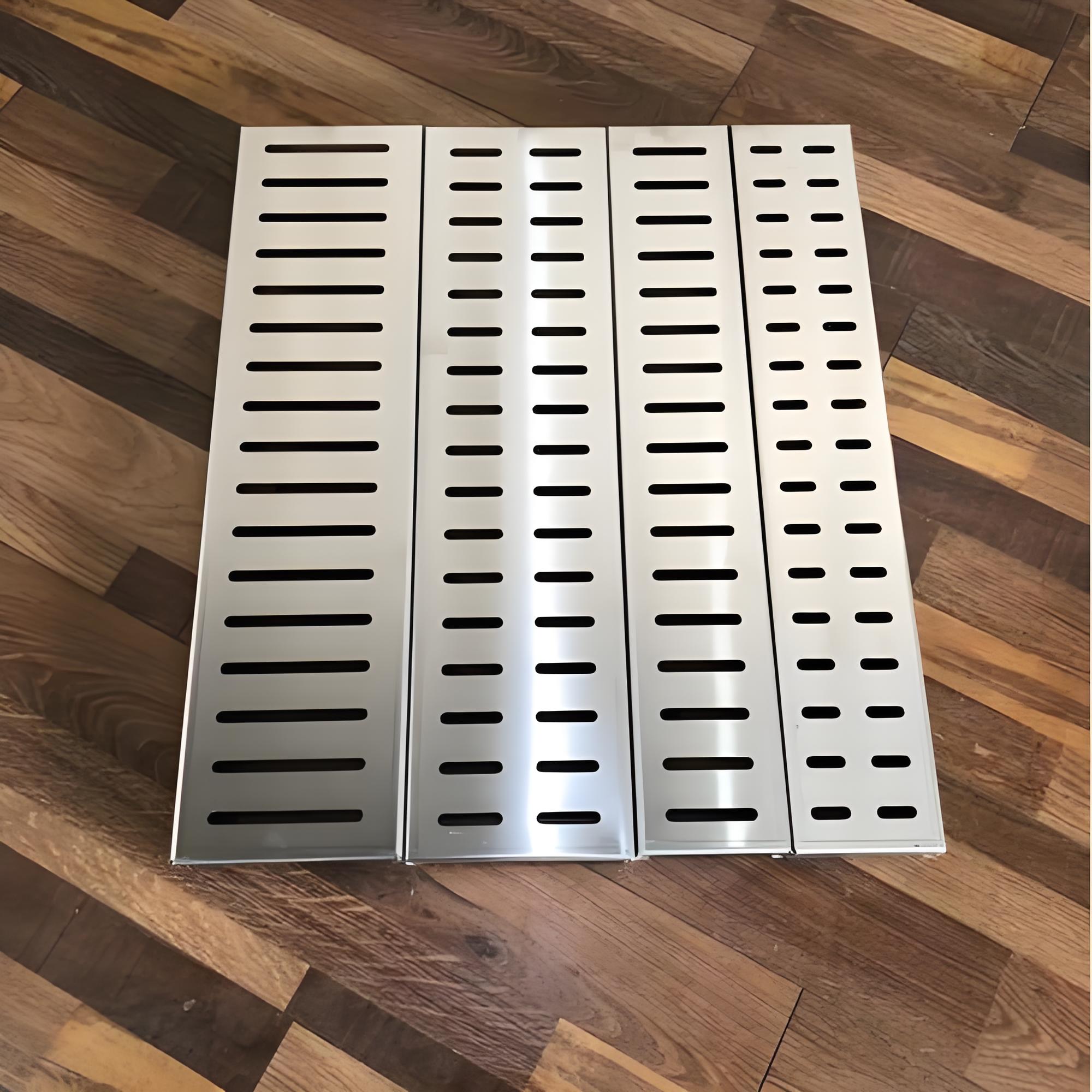

Slotted stainless steel trench cover features parallel linear slots precision-cut into solid stainless steel plates, providing efficient drainage while preventing debris and small objects from entering trenches. Available with straight or angled slots of varying widths (typically 5-15mm), this type offers a sleek, modern appearance suitable for architectural applications, commercial spaces, and areas with high aesthetic requirements. The solid plate construction provides enhanced load capacity compared to grating designs.

Linear slot stainless steel trench cover (also known as invisible trench cover) features a narrow central or side slot (15-30mm wide) that creates a seamless, minimalist appearance when installed. This type integrates almost invisibly with surrounding paving materials, making it perfect for high-end commercial plazas, luxury landscapes, and architectural projects where visual appeal is paramount. Despite its narrow profile, it delivers exceptional drainage capacity through continuous linear water capture.

Perforated stainless steel trench cover is manufactured with a regular pattern of round or square holes, offering balanced drainage performance and debris filtration. The hole pattern can be customized for specific drainage rates and aesthetic preferences, with various diameters and spacing configurations. This versatile type works well in both industrial and commercial settings, providing reliable drainage while maintaining a clean, uniform appearance.

Anti-slip stainless steel trench cover features textured surfaces—including serrated edges, raised buttons, or embossed patterns—that enhance traction in wet conditions. With friction coefficients reaching 0.6-0.8, this type minimizes slip risks in commercial kitchens, food processing areas, industrial platforms, and outdoor walkways where moisture or grease creates hazards. Available in both grating and solid plate configurations with integrated anti-slip features.

Heavy-duty stainless steel trench cover is engineered for extreme load conditions, utilizing thick stainless steel plates (5-10mm) or reinforced grating structures. Designed to meet EN 124 load classes D400, E600, and F900, it withstands heavy vehicle traffic, forklifts, and industrial equipment in ports, airports, industrial zones, and logistics facilities. Manufactured from 316L stainless steel for maximum corrosion resistance in demanding environments.

Specialized variants include U-shaped curved covers for radial drainage systems, recessed covers for tile or paver infill, lockable covers with security features, and custom-fabricated covers for irregular trench dimensions. Each type can be produced in 304 or 316L stainless steel with various surface finishes to meet specific environmental and aesthetic requirements.

Primary Application Fields of Stainless Steel Trench Cover

Stainless steel trench cover’s unique combination of corrosion resistance, hygiene, durability, and aesthetics makes it indispensable across diverse industries and environments where standard materials fail to perform.

Food and beverage processing facilities represent the largest application area, relying on stainless steel trench cover for production floors, washdown areas, cold storage rooms, and packaging zones. The non-porous, corrosion-resistant surface withstands frequent cleaning with sanitizing chemicals, prevents bacterial growth, and meets strict food safety standards (HACCP, FDA). 304 stainless steel is standard for most food processing, while 316L is preferred for seafood, dairy, and meat processing with high salt or acid exposure.

Pharmaceutical and chemical industries utilize stainless steel trench cover in cleanrooms, laboratories, chemical processing areas, and manufacturing facilities. Its corrosion resistance withstands exposure to acids, alkalis, solvents, and pharmaceutical compounds, while the smooth, seamless surface prevents particle accumulation and facilitates sterile conditions. Critical for maintaining regulatory compliance in controlled environments.

Marine and coastal applications depend on 316L stainless steel trench cover for port facilities, docks, ship decks, coastal walkways, and offshore installations. The molybdenum content in 316L provides exceptional resistance to saltwater corrosion and chloride penetration, far exceeding the performance of 304 stainless steel in marine environments. Performs reliably in constant salt spray, tidal water exposure, and harsh coastal conditions.

Municipal and urban infrastructure projects increasingly specify stainless steel trench cover for high-profile locations including subway stations, airport terminals, commercial plazas, pedestrian walkways, and luxury residential developments. Its sleek appearance enhances architectural aesthetics, while durability withstands heavy public foot traffic. The corrosion resistance eliminates unsightly rust staining common with carbon steel products.

Commercial kitchens and hospitality establishments rely on stainless steel trench cover in restaurant kitchens, hotel food preparation areas, catering facilities, and commercial laundries. The anti-slip surfaces ensure safety in wet conditions, while the corrosion-resistant material withstands constant exposure to water, detergents, and food waste. Easy to clean and maintain, meeting strict health code requirements.

Swimming pools and aquatic centers use stainless steel trench cover around pool decks, spa areas, water parks, and aquatic facilities. The corrosion resistance withstands constant chlorinated water exposure, while anti-slip surfaces ensure safety in wet environments. The clean, modern appearance complements aquatic facility design while providing efficient drainage.

Industrial manufacturing facilities employ stainless steel trench cover in electronics manufacturing, automotive plants, metalworking shops, and chemical processing units. It safely covers wastewater channels, coolant trenches, chemical drainage, and utility ducts, resisting corrosion from industrial fluids and maintaining structural integrity under heavy equipment loads.

Additional key applications include water treatment plants, breweries, distilleries, cold storage warehouses, commercial aquaculture facilities, luxury landscape projects, and medical facilities. In every sector, stainless steel trench cover delivers reliable performance that combines functionality, safety, and longevity.

Core Advantages of Stainless Steel Trench Cover

Stainless steel trench cover offers a comprehensive range of advantages that establish it as the premium choice for demanding drainage applications, far exceeding the performance of traditional materials.

Exceptional corrosion resistance is the primary benefit, with 304 stainless steel providing excellent protection against atmospheric, water, and mild chemical corrosion. 316L stainless steel offers superior resistance to chlorides, saltwater, and industrial chemicals, making it ideal for marine and harsh industrial environments. The passive chromium oxide layer self-repairs when scratched, providing lifelong corrosion protection without maintenance.

Superior hygiene and cleanability make it perfect for food, pharmaceutical, and medical applications. The smooth, non-porous surface prevents bacterial growth, mold, and mildew, while resisting staining from organic materials and chemicals. Easy to clean and sanitize with standard cleaning agents, maintaining hygienic conditions with minimal effort.

Long service life and minimal maintenance deliver exceptional long-term value. Stainless steel trench cover provides 20-40 years of maintenance-free service—2-4 times longer than galvanized steel and 4-8 times longer than cast iron. No painting, coating, or rust prevention treatments are required throughout its lifespan, significantly reducing lifecycle costs.

High structural strength and load-bearing capacity ensure reliable performance. Despite being 30-50% lighter than cast iron equivalents, stainless steel trench cover offers equivalent or superior load capacity, meeting EN 124 standards from pedestrian A15 to heavy-duty F900 classifications. The rigid construction resists bending, warping, and deformation under heavy loads.

Excellent aesthetic appeal enhances architectural designs with a modern, clean, professional appearance. Available in brushed, polished, or satin finishes, stainless steel trench cover complements contemporary building materials and designs. Unlike coated materials, it maintains its attractive appearance without fading, chipping, or discoloration.

Outstanding weather resistance performs reliably across extreme temperatures (-30°C to 120°C) and weather conditions. It withstands UV radiation, freeze-thaw cycles, rain, snow, and ice without degradation, maintaining structural integrity and appearance in all climates.

Environmental sustainability aligns with green building principles. Manufactured from 100% recyclable materials with up to 85% recycled content, stainless steel trench cover minimizes environmental impact. Long service life reduces resource consumption, while complete recyclability eliminates waste at the end of its lifecycle.

Versatility and customization adapt to diverse requirements. Available in various types, sizes, load ratings, and finishes, with complete customization options for unique projects. Can be fabricated to precise dimensions, load specifications, and aesthetic preferences for virtually any application.

Safety features include optional anti-slip surfaces, smooth edges, and secure fitting designs that minimize accident risks. The durable construction eliminates breakage risks common with brittle materials, ensuring long-term safety performance.

Specifications and Selection Guidelines for Stainless Steel Trench Cover

Selecting the appropriate stainless steel trench cover requires careful evaluation of material grade, load requirements, environmental conditions, and functional specifications to ensure optimal performance.

Material grade selection is critical: 304 stainless steel (18% chromium, 8% nickel) is suitable for general indoor, urban, and mild industrial applications with moderate corrosion exposure. 316L stainless steel (18% chromium, 10% nickel, 2% molybdenum) is recommended for marine environments, coastal areas, chemical processing, food processing with high salt content, and swimming pool applications requiring maximum corrosion resistance.

Load class classification follows EN 124 standards: Class A15 (15kN) for pedestrian-only areas; Class B125 (125kN) for sidewalks and light vehicle areas; Class C250 (250kN) for car parks and driveways; Class D400 (400kN) for roads and industrial areas; Classes E600/F900 for ports, airports, and extreme heavy-duty use. Always select a load class equal to or exceeding the maximum expected load.

Type selection matches functional requirements: Grating covers offer maximum drainage efficiency for industrial applications; slotted covers balance drainage and aesthetics for commercial use; linear slot covers provide architectural invisibility for high-end projects; perforated covers offer versatile performance; anti-slip covers prioritize safety in wet environments.

Dimension specifications include standard sizes (1000×500mm, 1000×600mm, 1000×1000mm) and custom dimensions. Accurate measurement of trench width, length, and depth ensures proper fitting. Bearing bar specifications for grating covers typically range from 25×3mm to 50×5mm, with spacing options of 30mm, 40mm, or 60mm.

Surface finish selection: Brushed (satin) finish offers an attractive, fingerprint-resistant surface ideal for most applications; polished (mirror) finish provides maximum reflectivity for architectural applications; passivated finish enhances corrosion resistance for industrial use; anti-slip textured finish prioritizes safety in wet conditions.

Drainage efficiency considerations: Grating covers provide up to 83.3% open area for maximum drainage; slotted covers offer 40-60% open area; perforated covers provide 30-50% open area; linear slot covers offer 10-25% open area with continuous drainage capture. Select based on expected water flow volume.

Installation environment factors: Chemical exposure requires 316L stainless steel; coastal/marine environments mandate 316L; temperature extremes demand material stability; hygiene-critical areas need smooth, easy-to-clean surfaces; high-traffic locations require durable construction.

Additional features: Frame options (angle iron, embedded), anti-theft devices, custom cutting, and special edge treatments enhance functionality for specific installations. Proper specification ensures stainless steel trench cover delivers decades of optimal performance.

Reference Price Influencing Factors of Stainless Steel Trench Cover

The reference price of stainless steel trench cover varies significantly based on multiple technical and market factors, with pricing primarily determined by material costs and manufacturing complexity.

Raw material costs represent the largest pricing component, accounting for 60-70% of total costs. Stainless steel prices fluctuate with global nickel and chromium market trends. 316L stainless steel costs 30-50% more than 304 due to higher nickel and molybdenum content. Material thickness directly impacts costs—prices increase 5-10% for each additional millimeter of thickness.

Product type and design complexity significantly affect pricing. Grating covers involve complex welding processes and higher material usage, costing more than simple slotted covers. Linear slot and custom-designed covers require specialized manufacturing, increasing costs 20-40% over standard designs. Anti-slip and perforated covers add processing costs compared to basic smooth covers.

Specifications and dimensions influence material requirements and production time. Larger panels, thicker materials, and custom sizes increase costs. Heavy-duty specifications meeting D400/E600 load classes require enhanced construction, adding 25-60% to standard pricing.

Surface finish quality affects costs: Standard brushed finish is most economical; polished/mirror finish requires additional processing, increasing costs 15-25%; specialized anti-slip textures add 10-30% to base prices.

Production technology and precision impact costs. Automated laser cutting and precision TIG welding ensure quality but involve higher equipment costs. Custom fabrication and small-batch production carry higher unit costs than mass-produced standard sizes.

Order quantity significantly influences unit pricing. Bulk orders (over 500 square meters) reduce costs through economies of scale, typically 15-25% lower than small orders. Minimum orders may incur setup charges that affect unit pricing.

Quality certifications and testing add value and cost. Products with EN 124, ISO 9001, and material test certificates command premium pricing compared to uncertified alternatives. Third-party testing for load capacity and corrosion resistance increases production costs.

Market factors including supply-demand dynamics, production capacity, and transportation costs influence reference pricing. Global stainless steel price fluctuations directly impact final costs, while specialized manufacturers may charge premiums for technical expertise.

All prices mentioned are reference values only. Final quotations depend on specific material grade, specifications, order quantity, and current market conditions at the time of purchase.

Professional Supplier: Anping County Chuansen Silk Screen Products Co., Ltd.

Anping County Chuansen Silk Screen Products Co., Ltd. stands as a leading professional manufacturer and global supplier of high-quality stainless steel trench cover, specializing in premium stainless steel drainage solutions for industrial, commercial, and municipal applications. With advanced manufacturing facilities and extensive expertise in stainless steel fabrication, the company delivers superior products that meet the most stringent international quality and performance standards.

Strategically located in Anping, China’s Wire Mesh Industrial Base, the company operates specialized stainless steel production lines equipped with laser cutting machines, precision welding equipment, and automated surface treatment systems. This advanced infrastructure enables efficient manufacturing of diverse stainless steel trench cover products—including grating, slotted, linear slot, perforated, and anti-slip types—using both 304 and 316L stainless steel materials.

The company maintains strict material sourcing standards, using only certified 304 and 316L stainless steel from reputable mills, with complete material test reports available for every production batch. Advanced manufacturing processes ensure precise dimensions, smooth welds, and consistent quality across all products, with each unit undergoing rigorous quality inspections before shipment.

A team of experienced engineers provides comprehensive technical support, including product selection guidance, custom design services, and specification optimization. Working closely with customers, the technical team recommends optimal material grades, load classes, and designs based on specific environmental conditions, load requirements, and aesthetic preferences.

Comprehensive quality control protocols cover every production stage—from incoming material inspection to final packaging. Each stainless steel trench cover undergoes dimensional verification, load testing, surface finish inspection, and corrosion resistance assessment to ensure compliance with EN 124, ASTM, and other international standards.

The company offers complete customization capabilities, producing standard and tailor-made solutions to exact specifications. Flexible order quantities, competitive pricing, prompt delivery (15-25 days lead time), and professional export packaging ensure reliable supply for global customers. With an extensive distribution network, products are exported to Europe, North America, Southeast Asia, the Middle East, and Oceania.

With years of specialized experience in stainless steel drainage solutions, Anping County Chuansen Silk Screen Products Co., Ltd. has established a strong global reputation for product quality, technical expertise, and customer service. The company remains committed to innovation, quality excellence, and providing premium stainless steel trench cover solutions that deliver exceptional value and performance for projects worldwide.

Frequently Asked Questions About Stainless Steel Trench Cover

What is the difference between 304 and 316L stainless steel trench cover?

304 stainless steel trench cover contains 18% chromium and 8% nickel, offering excellent corrosion resistance for most indoor, urban, and mild industrial applications at a more economical price point. It performs well in normal atmospheric conditions, freshwater environments, and general food processing facilities. 316L stainless steel trench cover includes 2% molybdenum in addition to 18% chromium and 10% nickel, providing significantly enhanced resistance to chlorides, saltwater, and industrial chemicals. The “L” designation indicates low carbon content, reducing sensitization and intergranular corrosion risk after welding. 316L is 30-50% more expensive than 304 but essential for marine environments, coastal areas, swimming pools, chemical processing, and high-salt food processing applications where 304 may eventually corrode.

How long does stainless steel trench cover last compared to galvanized steel?

Stainless steel trench cover provides 20-40 years of service life depending on environment—304 stainless steel lasts 20-30 years in normal conditions, while 316L stainless steel offers 30-40 years even in harsh environments. Galvanized steel trench cover typically lasts only 10-15 years before rust begins to degrade performance, with coastal or industrial environments reducing lifespan to 5-10 years. Stainless steel maintains complete structural integrity and appearance throughout its life, while galvanized steel gradually loses its zinc coating and develops rust. Stainless steel requires zero maintenance over its lifespan, whereas galvanized steel may need periodic re-coating. The longer service life and maintenance-free nature of stainless steel deliver significantly lower lifecycle costs despite higher initial investment.

Can stainless steel trench cover support heavy vehicle traffic?

Yes, heavy-duty stainless steel trench cover can support heavy vehicle traffic when properly specified. Manufactured with thick 316L stainless steel materials and reinforced construction, heavy-duty models meet EN 124 load classes D400 (40 tonnes), E600 (60 tonnes), and F900 (90 tonnes), suitable for highways, industrial areas, ports, and airports. Standard specifications include 50×5mm or 65×6mm bearing bars with close spacing (30mm) for maximum strength. While stainless steel is lighter than cast iron, engineered designs provide equivalent or superior load capacity with better corrosion resistance. Always verify load class specifications and consult engineering guidelines to ensure proper selection based on specific traffic requirements.
