Stainless steel channel grating prices generally range from approximately US$30 to US$180 per square meter for common factory-made panels, while cut-to-size, framed, close-mesh, polished, or heavy-duty products may cost US$120 to US$350 per square meter. Engineered channel grating designed for forklifts, vehicles, chemical plants, marine facilities, or special hygienic systems can exceed US$200 to US$500 per square meter. When calculated by linear meter, a narrow 304 stainless steel channel grating may cost approximately US$25 to US$70 per meter, while a wider 316L framed cover may cost US$100 to US$280 per meter or more. The final price depends on the stainless steel grade, channel width, grating length, bearing bar dimensions, bar spacing, grating weight, load capacity, manufacturing method, surface finish, frame design, order quantity, packaging, and shipping terms.
Stainless steel channel grating is an open-grid cover installed over drainage channels, floor trenches, utility channels, food processing drains, production line drainage systems, and industrial floor openings. It allows water and process liquid to enter the channel while providing a walking or load-bearing surface above the opening.
The term “stainless steel channel grating” may refer only to the removable grating cover, or it may refer to a complete drainage assembly containing the grating, support frame, stainless steel channel body, outlet, end plates, anchors, and installation accessories. Buyers should confirm the quotation scope before comparing prices.
A low price may cover only a large unfinished grating panel. A higher quotation may include cutting, edge banding, a matching support frame, passivation, polishing, removable handles, panel marking, inspection documents, export packaging, and delivery. These quotations are not directly comparable unless the included products and services are the same.
| Quotation Type | Normally Included | Common Exclusions |
| Raw grating panel | Standard welded, press-locked, or swage-locked stainless steel grating | Cutting, banding, frame, finish, clips, and transport |
| Cut-to-size channel grating | Rectangular panels cut to the required width and length | Support frame, special cutouts, polishing, and installation hardware |
| Fabricated removable cover | Cutting, edge banding, panel identification, and selected surface treatment | Drain channel body, outlet, anchors, and installation labor |
| Grating with frame | Removable grating panels and matching stainless steel support frame | Channel body, concrete work, and local installation |
| Complete channel system | Channel body, cover grating, frame, outlet, and specified accessories | Freight, import tax, duty, and installation unless stated |
Channel grating may be quoted by square meter, linear meter, panel, set, kilogram, or total project. Square meter pricing is useful for comparing grating specifications. Linear meter pricing is convenient for continuous drainage channels, but it is meaningful only when the channel width is stated.
For example, one linear meter of 150 mm wide channel grating contains only 0.15 square meter of grating area. One linear meter of 500 mm wide grating contains 0.50 square meter. The wider cover uses more than three times the grating area before any difference in bearing bar size or load capacity is considered.
For preliminary budgeting, standard stainless steel channel grating can be divided into several practical price levels. These figures are general factory and international purchasing references rather than fixed offers. Stainless steel markets, exchange rates, order quantity, production location, and delivery terms can change the final price.
| Channel Grating Type | Approximate Reference Price | General Description |
| Basic standard stainless steel grating panel | US$30–80 per m² | Common mesh, standard panel size, mill finish, and limited fabrication |
| Light-duty 304 channel grating | US$45–85 per m² | Pedestrian drainage and short support spans |
| Standard-duty 304 channel grating | US$55–130 per m² | Factories, kitchens, food plants, walkways, and general drainage channels |
| Close-mesh or heavier 304 grating | US$85–180 per m² | Closer spacing, thicker bearing bars, or higher walking and cart loads |
| Standard 316 channel grating | US$65–165 per m² | Coastal, salt-containing, wastewater, and chemical environments |
| Standard 316L channel grating | US$70–180 per m² | Welded drainage covers used in corrosive or hygienic environments |
| Framed and passivated stainless grating | US$120–300 per m² | Custom panels with edge banding, support frame, and surface treatment |
| Heavy-duty engineered channel grating | US$180–500+ per m² | Forklift, vehicle, impact, wide-span, or special industrial loading |
A common 304 stainless steel channel grating for pedestrian or standard industrial use may be budgeted at approximately US$55 to US$130 per square meter. A similar product made from 316L stainless steel and supplied with welded banding, a matching frame, and pickled and passivated surfaces may cost approximately US$110 to US$240 per square meter.
When priced by linear meter, the channel width must be included in the calculation. The following ranges provide a preliminary reference for common finished covers.
| Finished Grating Width | Typical 304 Price per Meter | Typical 316 or 316L Price per Meter |
| 100–150 mm | US$25–55 per meter | US$35–75 per meter |
| 151–250 mm | US$40–90 per meter | US$55–125 per meter |
| 251–350 mm | US$60–140 per meter | US$80–180 per meter |
| 351–500 mm | US$90–220 per meter | US$120–280 per meter |
| Heavy-duty framed cover | US$160–400+ per meter | US$200–500+ per meter |
The lower part of each range generally represents standard dimensions, common mesh sizes, larger order quantities, simple mill or pickled finishes, and pedestrian loads. The upper part generally represents heavier bars, close spacing, multiple short panels, frames, serrations, polishing, special fabrication, or higher loads.

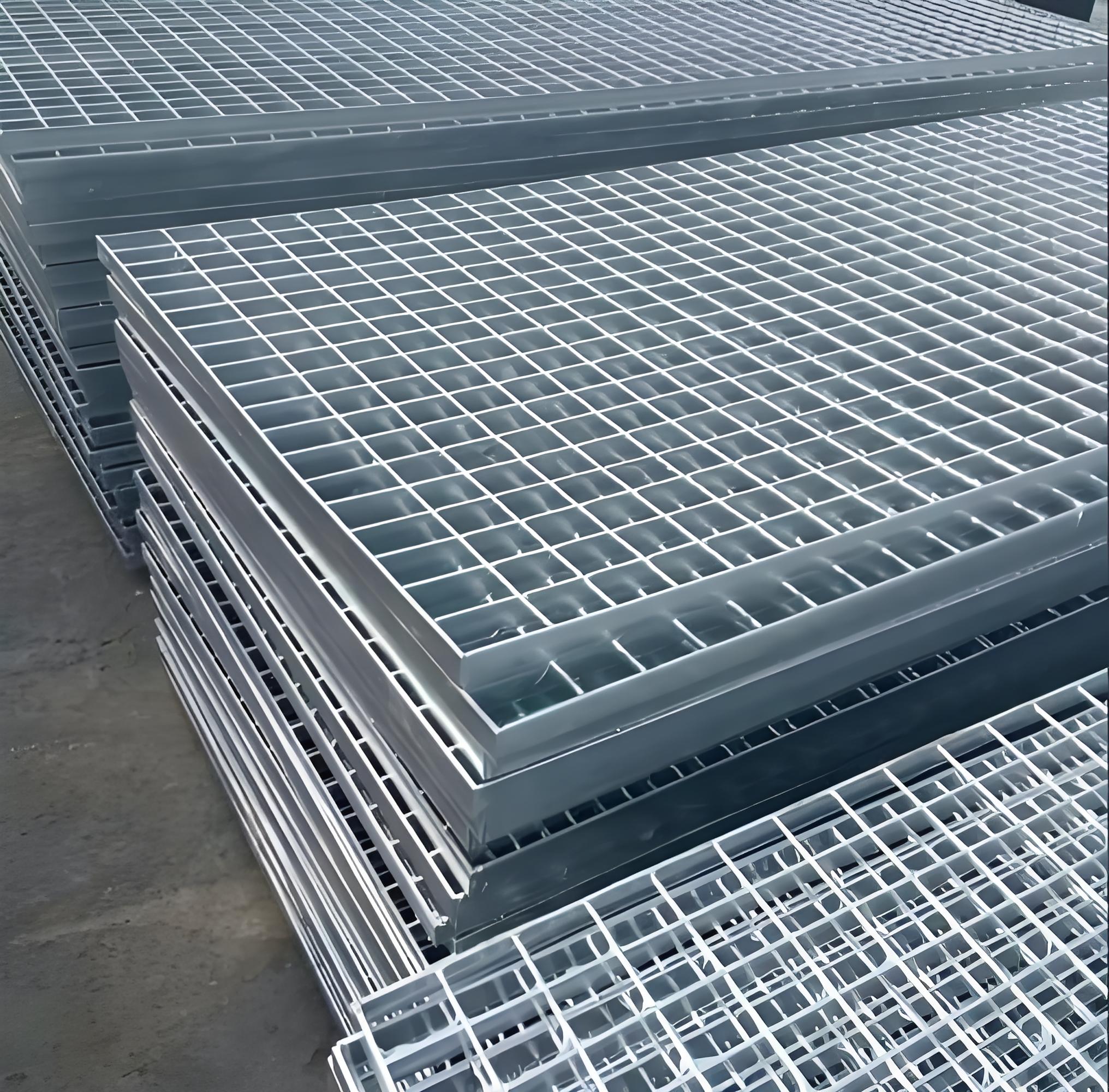

A raw panel price normally covers a standard factory grating sheet before final fabrication. It may not include the cost of cutting the panel into individual channel covers, closing the cut edges, cleaning weld discoloration, identifying each panel, or packaging it for direct installation.
A finished channel cover is normally cut to the required width and length and may include edge banding on two or four sides. It can also include a support frame, lifting slots, fixing clips, a serrated surface, and a specified stainless steel finish.
A complete stainless steel drainage channel is more expensive because the quotation may include a formed sheet metal channel body, internal slope, outlet connections, end plates, anchors, support frame, removable grating, and fabrication drawings. The price should not be compared directly with a grating-only quotation.
The stainless steel grade affects raw material cost, corrosion performance, welding behavior, and long-term suitability. The most common grades used for channel grating are 304, 316, and 316L.
304 stainless steel is the most common economical choice for general channel grating. It provides good resistance to ordinary moisture, fresh water, food residue, humidity, mild detergents, and many indoor industrial conditions.
It is commonly used in commercial kitchens, food packaging areas, factories, utility rooms, indoor drainage systems, processing walkways, and general washdown zones where chloride exposure is limited.
316 stainless steel contains molybdenum, which improves resistance to chloride pitting and many chemical environments. It is more suitable than 304 for coastal locations, marine facilities, salt-processing areas, swimming pool drainage, wastewater systems, and some chemical production facilities.
The additional nickel and molybdenum content normally makes 316 more expensive than 304.
316L is the low-carbon version of 316 stainless steel. Its lower carbon content reduces the risk of chromium carbide precipitation during welding. This helps preserve corrosion resistance around properly fabricated welded areas.
Channel grating often contains many welds at the bearing bar and cross bar intersections. Additional welding may also be required for edge banding, frames, lifting handles, toe plates, and special cutouts. For this reason, 316L is frequently selected for welded channel grating used in chemical, marine, food processing, pharmaceutical, and hygienic facilities.
| Material Grade | Relative Price Level | Typical Application |
| 304 | Base reference price | General indoor drainage, kitchens, factories, fresh-water washdown, and food processing |
| 316 | Normally higher than 304 | Coastal areas, salt exposure, wastewater, pool drainage, and chemical environments |
| 316L | Similar to or slightly above 316 depending on availability | Welded marine, chemical, pharmaceutical, hygienic, and corrosion-sensitive drainage |
For otherwise identical grating, 316 may cost approximately 15 to 30 percent more than 304. Comparable 316L grating may cost approximately 18 to 35 percent more than 304. These percentages are only preliminary references because alloy prices and regional stock availability change.
| Grade | Illustrative Price Relationship |
| 304 | 100% baseline |
| 316 | Approximately 115–130% of comparable 304 pricing |
| 316L | Approximately 118–135% of comparable 304 pricing |
The grade premium has a larger effect on heavy-duty grating because heavy grating contains more kilograms of stainless steel per square meter. On narrow light-duty covers, cutting, welding, and banding may form a large part of the final price, so the percentage difference between grades may appear smaller.
304 is usually suitable for indoor commercial kitchens, ordinary food processing, fresh-water drains, warehouses, factories, and covered walkways. Choosing 316L for a mild environment can increase the purchase cost without delivering a significant service-life advantage.
In coastal, marine, brine, seafood, chemical, swimming pool, or aggressive cleaning environments, 304 can develop staining, pitting, and localized corrosion. A higher initial investment in 316 or 316L may reduce maintenance, replacement, shutdown, and hygiene risks.
Channel width has a direct effect on price because it determines how much grating area is required for every linear meter. A supplier cannot calculate a reliable per-meter price without knowing the finished cover width.
The basic area calculation is:
Grating area per linear meter = finished grating width in meters × 1 meter
A 200 mm wide cover has an area of 0.20 square meter per linear meter. A 500 mm wide cover has an area of 0.50 square meter per linear meter. If both covers use the same grating specification, the wider cover requires two and a half times the grating area.
| Finished Grating Width | Grating Area per Linear Meter | Relative Material Requirement |
| 100 mm | 0.10 m² | Very low |
| 150 mm | 0.15 m² | Low |
| 200 mm | 0.20 m² | Low to moderate |
| 300 mm | 0.30 m² | Moderate |
| 400 mm | 0.40 m² | High |
| 500 mm | 0.50 m² | Very high |
| 600 mm | 0.60 m² | Heavy and structurally demanding |
The clear opening of the channel is not always the same as the finished grating width. The grating normally extends beyond the clear opening so that the bearing bars can rest on support angles or ledges.
For example, a channel with a 250 mm clear opening may require a 290 mm wide cover if the grating rests on 20 mm support ledges on both sides. The quotation should be based on the finished grating width rather than only the clear channel width.
Continuous channels are normally divided into removable panels. Common panel lengths include 500 mm, 600 mm, 1,000 mm, or another project-specific dimension.
Short panels are easier to lift, but they require more cutting and banding. A ten-meter channel divided into twenty 500 mm covers has twice as many panel ends as the same channel divided into ten 1,000 mm covers.
Because every panel may require edge finishing, welding, inspection, identification, and packaging, shorter panels usually increase the price per meter and per square meter.
For bar grating, the term thickness can refer to the bearing bar thickness or the total grating depth. For plate-type channel covers, it refers to the sheet or plate thickness. Increasing either dimension increases material weight.
Thin covers may be economical for short pedestrian spans. Wider channels, concentrated loads, or vehicle traffic require deeper bearing bars, thicker bars, or reinforced plate construction.

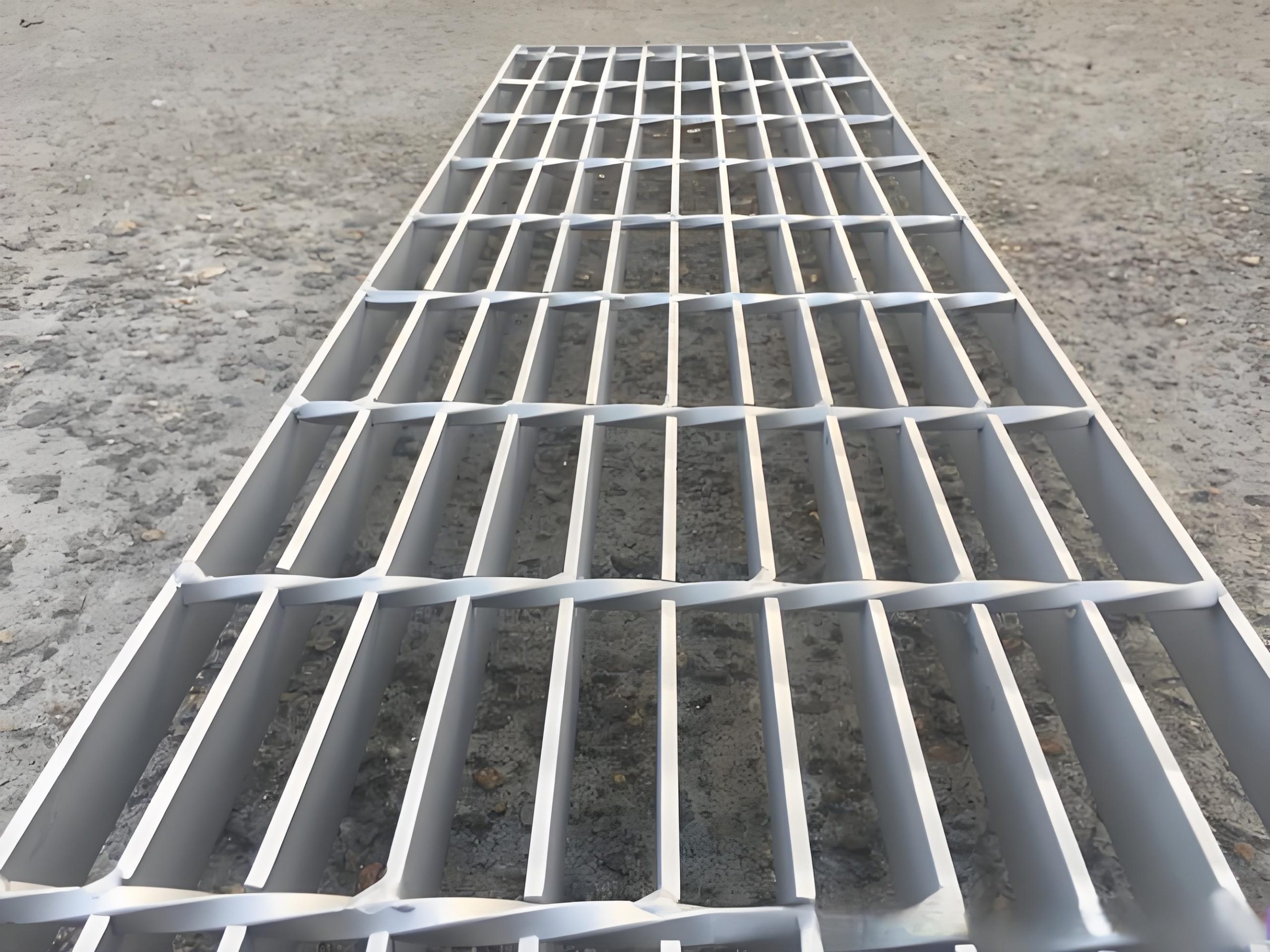

The bearing bars are the main structural components of channel grating. Their height, thickness, spacing, and unsupported span determine much of the product’s load capacity and material weight.
Bearing bar height is measured vertically. Increasing the height generally improves bending stiffness and allows the grating to carry a greater load or span a wider opening.
Common bearing bar heights include 20 mm, 25 mm, 30 mm, 32 mm, 40 mm, 50 mm, and larger sizes for heavy-duty applications. A deeper bearing bar uses more stainless steel and increases the price.
Bearing bar thickness affects material weight, local strength, impact resistance, and durability. Common thicknesses include 2 mm, 3 mm, 4 mm, 5 mm, and 6 mm.
Changing from a 3 mm thick bearing bar to a 5 mm thick bar can produce a substantial weight increase. The change should be evaluated through load requirements rather than chosen only by appearance.
Closer bearing bar spacing means more bars are installed across each meter of grating width. This improves walking support, load distribution, and small-object retention, but it also increases weight and welding time.
Common spacing options may include approximately 15 mm, 20 mm, 25 mm, 30 mm, 35 mm, and 40 mm on center. Close spacing is often used for heel-resistant surfaces, small wheels, food processing, public access, and narrow drainage slots.
Cross bars hold the bearing bars in position and stabilize the panel. Common cross bar spacing may include approximately 50 mm, 76 mm, or 100 mm.
Reducing the spacing from 100 mm to 50 mm approximately doubles the number of cross bars and welded intersections along the panel length. This increases material and production cost.
| Specification Change | Effect on Product | Price Effect |
| Increase bearing bar height | Improves stiffness and span capacity | Moderate to significant increase |
| Increase bearing bar thickness | Improves strength and impact resistance | Significant material increase |
| Reduce bearing bar spacing | Improves walking support and load distribution | Significant increase |
| Reduce cross bar spacing | Improves panel stability | Small to moderate increase |
| Add serrations | Improves traction | Small to moderate increase |
| Increase frame section | Improves seating and system capacity | Moderate to significant increase |
Weight per square meter is one of the most useful values when comparing stainless steel channel grating quotations. Two products with the same external dimensions may contain very different quantities of stainless steel.
A light grating may weigh less than 25 kg per square meter, while a deeper or close-spaced industrial grating may weigh more than 50 kg per square meter. Heavy-duty vehicle grating can weigh considerably more when frames and reinforcement are included.
| General Construction | Weight Direction | Typical Price Direction |
| Shallow bars with wide spacing | Low kg/m² | Lowest |
| Standard pedestrian grating | Moderate kg/m² | Moderate |
| Deep bars or close spacing | High kg/m² | High |
| Heavy-duty grating with frame | Very high kg/m² | Highest |
When one quotation is much lower than another, buyers should compare the theoretical or actual weight, bearing bar dimensions, bar spacing, frame weight, and included fabrication. A lower price may simply represent a lighter product.
The required loading level has a major effect on the stainless steel channel grating price. A kitchen drain crossed only by workers does not need the same grating structure as a channel crossed by pallet trucks or forklifts.
Light-duty grating is normally used for pedestrians, cleaning staff, light maintenance access, and narrow indoor drainage channels. It may use smaller bearing bars and relatively short spans.
A light-duty 304 product may cost approximately US$45 to US$85 per square meter before extensive framing or polishing.
Medium-duty grating may carry frequent pedestrian traffic, loaded carts, small trolleys, or maintenance equipment. It normally requires deeper or thicker bearing bars and a stronger support frame.
Medium-duty 304, 316, or 316L grating may cost approximately US$85 to US$200 per square meter, depending on grade and fabrication.
Heavy-duty grating may be designed for pallet trucks, forklifts, cars, service vehicles, or high industrial loads. The design may include deep bearing bars, close spacing, thick banding, reinforced frames, locking devices, shorter panel spans, and structural verification.
Heavy-duty stainless steel channel grating may cost approximately US$180 to US$500 per square meter or more.
| Duty Level | Typical Traffic | General Reference Price |
| Light duty | Pedestrians and light indoor use | US$45–85 per m² |
| Standard duty | Regular pedestrian and industrial access | US$55–150 per m² |
| Medium duty | Carts, maintenance equipment, and repeated industrial traffic | US$85–200 per m² |
| Heavy duty | Pallet trucks, forklifts, cars, or high concentrated loads | US$180–400 per m² |
| Engineered vehicle duty | Service vehicles, road traffic, or specialized industrial loads | US$250–500+ per m² |
The description “heavy duty” does not define a load. Different manufacturers may use the term for different bar sizes and applications. An accurate quotation should state the uniform load, concentrated load, wheel load, clear span, contact area, and allowable deflection.
The support span is the unsupported distance between the channel ledges or frame supports. As the span increases, the grating normally requires deeper or thicker bearing bars.
A 300 mm wide channel may be covered with a lighter grating than a 700 mm wide channel under the same load. Adding an intermediate support can sometimes reduce the required grating weight, but the added support also has a fabrication and installation cost.
Plain stainless steel grating has smooth bearing bar tops. Serrated grating has teeth or notches formed along the upper edges of the bearing bars to improve traction.
| Surface Type | Typical Price Relationship | Suitable Application |
| Plain grating | Base price | Kitchens, hygienic areas, controlled indoor floors, and easy-clean channels |
| Serrated grating | Often approximately 5–15% above comparable plain grating | Wet factories, outdoor drains, oily areas, marine walkways, and slippery floors |
Plain grating is generally easier to clean because the upper edge of the bearing bar is smooth. Food residue, grease, and cleaning deposits are less likely to remain inside serrations.
For commercial kitchens, beverage plants, pharmaceutical areas, and hygienic processing floors, easy cleaning may be more important than aggressive anti-slip performance.
Serrated grating provides additional contact with footwear and can improve traction in wet, oily, muddy, or outdoor areas. It is commonly used in industrial washdown zones, chemical plants, wastewater facilities, marine areas, and exterior walkways.
Serrations add production work and may slightly increase the price. They can also make cleaning more difficult, so the surface should be selected according to both safety and hygiene requirements.
Serrated grating does not make a surface completely slip-proof. Oil, biological growth, grease, ice, and chemical residue can still create dangerous conditions. Effective drainage, regular cleaning, suitable footwear, lighting, and safe work procedures remain necessary.
The manufacturing method affects product appearance, available mesh, structural behavior, production speed, and cost. The three common options are welded, press-locked, and swage-locked stainless steel grating.
Welded grating is produced by joining cross bars to bearing bars through resistance welding or another controlled welding method. It is widely used for industrial drainage because it provides a strong and practical structure.
For standard patterns and larger quantities, welded grating is often the most economical option. Additional costs may include cutting, edge banding, post-weld cleaning, pickling, and passivation.
Press-locked grating is made by pressing cross bars into slots formed in the bearing bars. It normally has clean intersections, precise rectangular openings, and a uniform architectural appearance.
The slotting and pressing process may make press-locked grating more expensive than standard welded grating. It is commonly selected for public spaces, architectural drainage, visible entrances, hotels, and high-finish projects.
Swage-locked grating uses mechanically locked cross bars. It provides a stable structure and clean appearance and is available in stainless steel for platforms, walkways, and drainage systems.
Its price depends on the cross bar profile, bearing bar dimensions, quantity, and required fabrication. Standard swage-locked products may be competitively priced, while unusual spacing or custom panel sizes can increase cost.
| Manufacturing Method | Relative Cost | Main Advantages |
| Welded | Low to moderate | Strong, practical, widely available, and economical for industrial use |
| Press-locked | Moderate to high | Clean appearance, accurate spacing, and architectural finish |
| Swage-locked | Moderate | Mechanically locked structure and neat stainless steel appearance |
| Fully custom fabricated | High | Special bar layouts, hand welding, unusual shapes, and project-specific details |
Welded grating creates heat tint at welded areas. In corrosive or hygienic service, pickling and passivation may be required after production. Press-locked and swage-locked products may have fewer visible weld marks in the main panel, but secondary fabrication can still involve welding.
Standard sizes are generally less expensive because they use established bar sizes, panel widths, mesh patterns, production fixtures, and packaging methods.
Standard factory panels have the lowest price per square meter because they require limited secondary fabrication. They are suitable for distributors, local fabricators, and projects that can cut the panels on site.
A factory can cut standard grating into repeated channel cover lengths. The additional price normally includes cutting, edge banding, straightening, panel marking, and packaging.
Custom widths can create material waste or require special bar positioning. The factory may need to adjust fixtures, cut a larger panel, or accept an uneven edge spacing. These factors increase the price.
Curved, tapered, triangular, corner, circular, and multi-cutout panels require detailed drawings and individual fabrication. The production cost per square meter is higher because each panel needs more cutting, fitting, welding, and inspection.
| Panel Type | Relative Price | Main Cost Reason |
| Standard full panel | Lowest | Minimal fabrication and efficient production |
| Standard rectangular cut panel | Low to moderate | Cutting, banding, identification, and packaging |
| Custom rectangular panel | Moderate | Special width, setup, and material waste |
| Irregular panel | High | Drawing, programming, complex cutting, welding, and inspection |
| Small custom cover | High per square meter | Fabrication cost is divided over a small surface area |
A small cover may contain little stainless steel but still require cutting, four-sided banding, welding, cleaning, inspection, and individual packing. These operations are charged per panel rather than only by material area.
For example, ten square meters divided into ten large panels normally cost less to fabricate than ten square meters divided into one hundred small removable covers.

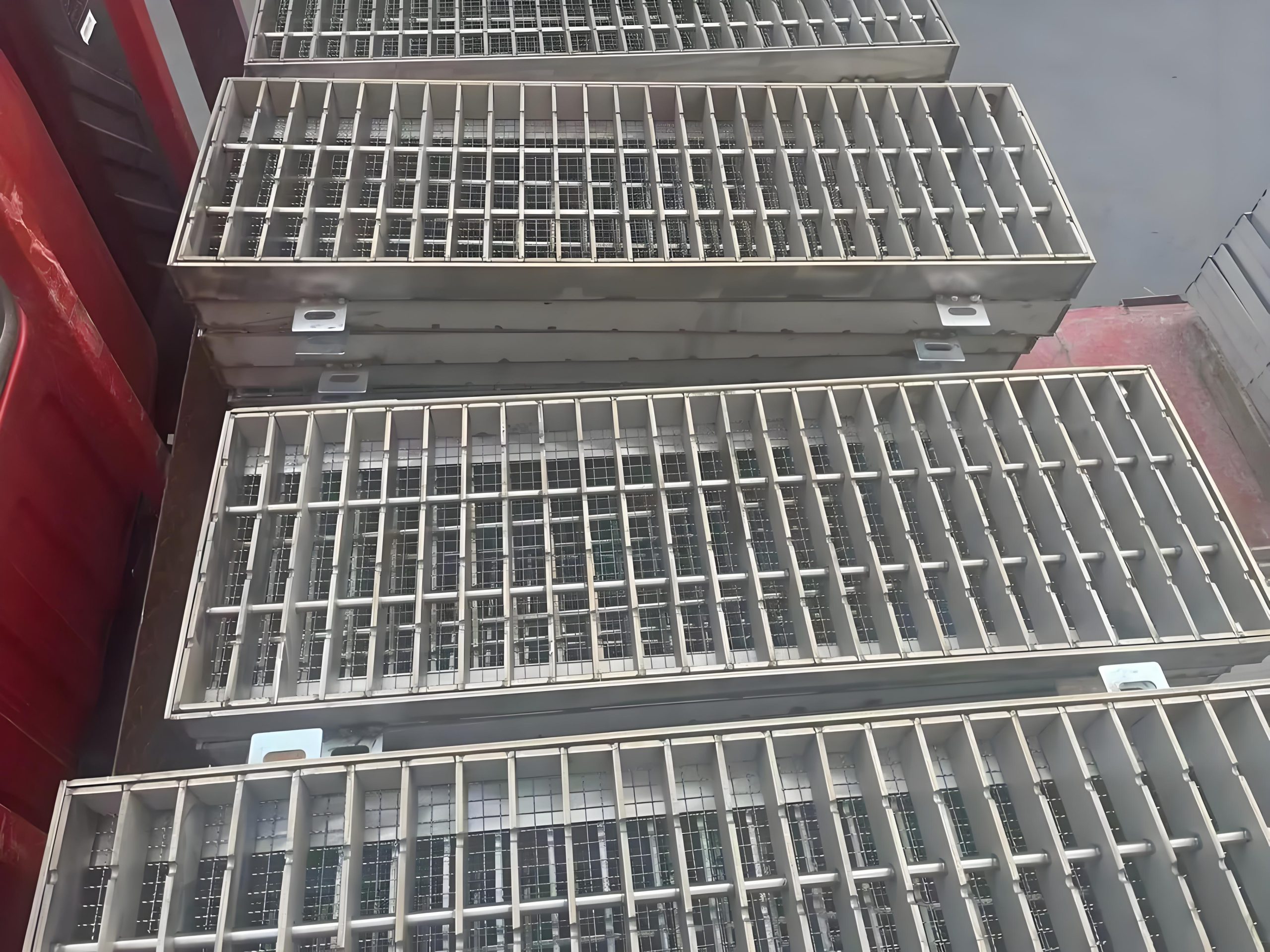

A channel grating system includes more than the open grating panel. Frames, support angles, edge banding, lifting details, and fixing devices can represent a substantial part of the finished price.
Banding closes the exposed ends of the bearing bars. It improves handling, appearance, edge safety, and panel stiffness. Removable channel covers are commonly banded on all sides.
Banding cost depends on the total panel perimeter. Small covers have more perimeter per square meter and therefore have a higher banding cost per square meter.
Trim banding closes the panel edge but is not necessarily designed to carry major loads. Load banding uses a heavier section and stronger welding so the edge can transfer load or support concentrated contact.
The quotation should identify which type is included, especially where carts or wheels cross panel joints.
Support angles provide a seating ledge along the sides of the channel. Their price depends on angle dimensions, stainless steel grade, thickness, anchors, welding, straightness, and finish.
A light pedestrian channel may use a relatively small support angle. A wide or vehicle-loaded channel may require a larger reinforced frame.
Removable covers allow access for cleaning, inspection, and maintenance. They may include lifting slots, recessed handles, keyholes, or removable lifting tools.
These features improve maintenance but add cutting and fabrication cost. Handles should be designed so they do not create a trip hazard.
Clips prevent the grating from moving or lifting. Public, exterior, vibrating, or vehicle-access areas may require bolts, locks, anti-theft fixings, or concealed fastening systems.
| Additional Feature | Typical Price Effect |
| Simple edge banding | Small to moderate increase |
| Heavy load banding | Moderate increase |
| Light stainless support angle | Moderate increase |
| Reinforced channel frame | Significant increase |
| Lifting slot or keyhole | Small increase per panel |
| Folding or recessed handle | Small to moderate increase per panel |
| Fixing clips | Small increase |
| Locking or anti-theft system | Moderate increase |
The frame and grating must be produced with enough clearance for removal but not so much clearance that the panel moves or creates large gaps. Tight tolerance fabrication requires more accurate cutting, welding, straightening, and trial fitting.
The stainless steel surface finish affects corrosion performance, appearance, hygiene, cleaning, and price. The finish should be specified clearly because general terms such as “stainless finish” or “polished” can be interpreted differently.
Mill finish is normally the lowest-cost option. It is suitable for general industrial channels where appearance is not critical. Fabrication scratches, weld discoloration, and heat tint may remain unless additional cleaning is specified.
Pickling removes welding oxide, heat tint, and certain metallic contaminants through controlled chemical treatment. It is commonly specified for welded channel grating used in wet, marine, chemical, and food processing environments.
A pickled surface normally has a clean matte industrial appearance rather than a bright decorative finish.
Passivation removes free iron contamination and supports formation of the natural chromium-rich passive layer. The surface must be properly cleaned before passivation.
Passivation does not replace the removal of thick welding scale, oil, grease, or heavy heat tint.
Polishing improves appearance and can make visible surfaces easier to clean. It is commonly requested for commercial kitchens, hotels, food plants, pharmaceutical areas, swimming pools, and architectural drainage systems.
Polishing bar grating is labor-intensive because the panel contains numerous intersections, edges, and narrow internal surfaces. The buyer should define whether polishing applies only to the top surface or to all accessible faces.
Electropolishing removes a thin layer from the stainless steel surface through an electrochemical process. It can improve smoothness, cleanliness, and surface corrosion performance.
This is usually one of the most expensive finish options and is mainly used for pharmaceutical, high-purity, laboratory, and specialized hygienic applications.
| Surface Finish | Relative Price | Common Application |
| Mill finish | Lowest | General factories, utilities, and non-visible drainage |
| Pickled | Low to moderate | Welded industrial, chemical, marine, and wet-area grating |
| Passivated | Moderate | Food, pharmaceutical, hygienic, and corrosion-sensitive drainage |
| Brushed | Moderate to high | Commercial kitchens and visible architectural channels |
| Polished | High | Hotels, food plants, public facilities, and decorative applications |
| Electropolished | Very high | High-purity and specialized hygienic environments |
| Surface Treatment | Possible Addition to Base Price |
| Basic fabrication cleaning | Approximately 2–5% |
| Pickling | Approximately 5–12% |
| Pickling and passivation | Approximately 8–18% |
| Brushed finish | Approximately 10–25% |
| Detailed polishing | Approximately 20–50% or more |
| Electropolishing | Project-specific and potentially 30–60% or more |
The actual premium depends on panel size, weld quantity, required roughness, accessible surfaces, surface acceptance standard, and order volume.
The intended application affects the stainless steel grade, mesh, surface, finish, load capacity, and price. A decorative kitchen channel and a forklift-rated factory drain require different specifications.
Commercial kitchen channel grating is normally narrow, removable, easy to clean, and resistant to food acids, grease, water, and cleaning agents. Grade 304 is widely used, while 316L may be selected where salt or aggressive sanitation chemicals are present.
Plain surfaces, smooth banding, close spacing, brushed finishes, and removable lifting details can increase the price but improve hygiene and maintenance.
Food processing areas may require 304, 316, or 316L stainless steel according to product composition and cleaning procedures. Seafood, brine, dairy, meat, beverage, and vegetable processing areas can create different corrosion conditions.
Factories may require close mesh, pickling and passivation, hygienic frames, controlled weld quality, and easy removal. These requirements generally increase the cost compared with ordinary industrial grating.
Factories use channel grating around machines, production lines, tanks, pumps, washdown areas, maintenance zones, and utility trenches. The grating may carry pedestrians, loaded carts, pallet trucks, or forklifts.
For industrial applications, load capacity and frame strength can have a greater effect on price than appearance.
Chemical channel grating should be selected according to the actual chemicals, concentration, temperature, spill conditions, and cleaning process. 316L performs well in many environments but is not resistant to every chemical.
Material selection may require review by a corrosion engineer when strong acids, high chlorides, elevated temperatures, or mixed chemicals are present.
Marine and coastal channels are exposed to salt spray, humidity, wet-dry cycles, and chloride deposits. Grade 316 or 316L is normally considered before 304.
Frames, clips, bolts, and anchors should also be compatible with the environment. Using a 316L cover with carbon steel fasteners can create staining and galvanic corrosion problems.
Wastewater facilities use channel grating around pumps, tanks, clarifiers, screens, channels, and chemical dosing systems. Continuous moisture and treatment chemicals require careful grade and surface selection.
Pool drainage can expose grating to chlorinated water, salt, elevated temperature, and cleaning chemicals. Grade 316 or 316L is commonly evaluated, but water chemistry, ventilation, and cleaning conditions should be reviewed.
| Application | Common Material Direction | Main Price Drivers |
| Commercial kitchen | 304 or 316L | Close spacing, smooth finish, removable panels, and hygiene |
| Food processing plant | 304, 316, or 316L | Passivation, cleaning chemicals, salt exposure, and sanitary fabrication |
| General factory | 304 or 316 | Load capacity, bar size, serrations, frame, and panel width |
| Chemical plant | 316L or another reviewed alloy | Chemical compatibility, welding, finish, and spill conditions |
| Marine facility | 316 or 316L | Chloride exposure, passivation, compatible fasteners, and maintenance |
| Wastewater facility | 304, 316, or 316L | Continuous moisture, chemical exposure, deposits, and load |
| Swimming pool | 316 or 316L after environmental review | Chlorides, temperature, ventilation, polishing, and frame design |
Order quantity affects the unit price because material purchasing, drawing review, machine setup, welding preparation, finishing, inspection, and packing costs must be divided across the order.
Small orders have the highest price per square meter or meter. A factory may apply minimum charges for cutting, welding, passivation, polishing, documentation, and packaging even when the order contains only one or two panels.
Orders using repeated panel dimensions provide better production efficiency. Material utilization improves, and setup costs are distributed across more pieces.
Large orders may receive better material purchasing and manufacturing rates. However, a project containing hundreds of different panel shapes may not receive the same discount as an order containing identical panels.
| Order Quantity | Typical Unit Price Effect |
| Prototype or 1–2 panels | Highest unit price because of minimum production charges |
| Below 5 m² | Small-order pricing |
| 5–20 m² | Improved but limited production efficiency |
| 21–100 m² | More competitive factory pricing |
| 101–500 m² | Potential volume discount |
| More than 500 m² | Best purchasing efficiency when specifications are repeated |
Mill-finish industrial panels may be bundled on pallets. Pickled, passivated, brushed, polished, or architectural covers may require protective separators, film, corner protection, or wooden cases.
Export packaging should prevent movement, bending, surface scratching, moisture traps, salt contamination, and contact with carbon steel particles.
Stainless steel grating can be heavy. A project containing 100 square meters of medium or heavy grating may weigh several tonnes before the frames and packaging are added.
Freight quotations should therefore be based on the gross weight, package dimensions, number of packages, and delivery destination.
Air freight is normally practical only for small urgent orders. Because stainless steel grating is heavy, air freight can exceed the product value.
Sea freight is more economical for large export orders. Flat grating panels can be stacked efficiently, while welded channel frames may occupy more volume and reduce container utilization.
| Trade Term | General Price Scope |
| EXW | Product available at the factory; most transport and export costs are excluded |
| FOB | Product and export delivery to the named port are generally included |
| CIF | FOB scope plus ocean freight and insurance to the destination port |
| DAP | Delivery to the named destination, normally excluding import duty and tax |
| DDP | Delivery including the agreed import clearance, duties, and taxes |
A lower EXW quotation may produce a higher delivered cost after inland freight, export charges, ocean freight, destination fees, import duty, and local delivery are added. Buyers should compare quotations using the same delivery term.
A preliminary budget can be calculated from the channel length, finished grating width, estimated square meter rate, and additional fabrication costs.
Total grating area = total channel length × finished grating width
Basic grating cost = total grating area × estimated price per square meter
Estimated project cost = basic grating cost + banding + frame + finish + packaging + freight
| Item | Example Value |
| Total channel length | 20 meters |
| Finished grating width | 200 mm, equal to 0.20 meter |
| Total grating area | 20 × 0.20 = 4 m² |
| Estimated 304 grating rate | US$90 per m² |
| Basic grating cost | 4 × US$90 = US$360 |
| Cutting, banding, and cleaning | Approximately US$180–300 |
| Preliminary product total | Approximately US$540–660 before freight |
| Item | Example Value |
| Total channel length | 40 meters |
| Finished grating width | 300 mm, equal to 0.30 meter |
| Total grating area | 40 × 0.30 = 12 m² |
| Estimated 316L grating rate | US$145 per m² |
| Basic grating cost | 12 × US$145 = US$1,740 |
| Banding, pickling, and passivation | Approximately US$500–850 |
| Preliminary product total | Approximately US$2,240–2,590 before freight |
| Item | Example Value |
| Total channel length | 15 meters |
| Finished grating width | 500 mm, equal to 0.50 meter |
| Total grating area | 15 × 0.50 = 7.5 m² |
| Estimated heavy-duty grating rate | US$260 per m² |
| Basic grating cost | 7.5 × US$260 = US$1,950 |
| Reinforced stainless steel frame | Approximately US$1,000–1,700 |
| Locks, finish, inspection, and packaging | Approximately US$400–750 |
| Preliminary product total | Approximately US$3,350–4,400 before freight |
These calculations are budgeting examples rather than quotations. Actual bearing bar selection should be based on the load and support span before a final price is calculated.
Two suppliers may provide very different prices even when both quotations use the same general product name. The differences are often caused by specifications that are not shown in a short description.
| Possible Difference | Effect on Quotation |
| 304 instead of 316L | Lower material cost but different corrosion resistance |
| Smaller bearing bars | Lower weight, lower cost, and lower load capacity |
| Wider bearing bar spacing | Fewer bars and lower material consumption |
| Raw panel instead of finished covers | Cutting, banding, and panel identification are excluded |
| Support frame excluded | Quotation appears substantially lower |
| Mill finish instead of passivation | Post-weld surface treatment is excluded |
| Long panels instead of short removable covers | Fewer cuts and banded edges reduce fabrication cost |
| No load verification | Engineering, calculations, and testing are excluded |
| Different packaging | Basic bundles cost less than protected export cases |
| Different trade terms | Freight, duty, tax, and local delivery are treated differently |
A technically useful comparison should review material grade, weight per square meter, bearing bar size, bearing bar spacing, cross bar spacing, panel quantity, frame section, surface treatment, load basis, documentation, packaging, and delivery term.
A reliable factory quotation requires enough information to calculate material weight, fabrication time, surface treatment, packaging, and delivery. Providing only the total channel length is not sufficient.
| Required Information | Example |
| Application | Kitchen, food plant, factory floor, chemical plant, wastewater, or marine drainage |
| Total channel length | 60 linear meters |
| Clear channel width | 250 mm |
| Finished grating width | 290 mm including support seating |
| Individual panel length | 1,000 mm removable panels |
| Stainless steel grade | 304, 316, or 316L |
| Manufacturing type | Welded, press-locked, or swage-locked |
| Bearing bar size | For example, 30 × 3 mm |
| Bearing bar spacing | For example, 30 mm on center |
| Cross bar spacing | For example, 50 mm or 100 mm on center |
| Surface type | Plain or serrated |
| Clear support span | Distance between the support ledges |
| Load requirement | Pedestrian, cart, pallet truck, forklift, or vehicle |
| Frame requirement | Grating only or grating with stainless steel support frame |
| Edge treatment | Open edge, trim banding, or load banding |
| Surface finish | Mill, pickled, passivated, brushed, polished, or electropolished |
| Special fabrication | Handles, locks, cutouts, corners, curves, or anchor tabs |
| Panel quantity | Total number of individual covers |
| Documentation | Material certificate, dimensional report, PMI, weld report, or load test |
| Packaging | Pallet, protective film, wooden case, or seaworthy export packing |
| Delivery destination | City, port, and country |
| Trade term | EXW, FOB, CIF, DAP, or DDP |
A channel cross-section should show the clear opening, support ledges, frame position, cover width, floor level, grating depth, and bearing bar direction. This prevents confusion between the channel width and the finished grating width.
For industrial traffic, the supplier should know whether the channel is crossed by workers, carts, pallet trucks, forklifts, cars, or other vehicles. Wheel load, contact area, traffic direction, and impact can change the required bearing bar and frame design.
A plan drawing should show total channel length, individual panel divisions, corners, intersections, outlets, removable sections, and special-shaped pieces. Each custom panel should have a unique identification mark.
The buyer should confirm whether the quotation includes only the grating or also includes the support frame, handles, locks, clips, anchors, surface treatment, material certificates, inspection, packaging, freight, import duty, and tax.
How much does stainless steel channel grating cost?
Basic stainless steel channel grating panels generally cost approximately US$30 to US$80 per square meter. Project-ready 304 stainless steel channel grating commonly costs approximately US$55 to US$130 per square meter, while 316 or 316L products may cost approximately US$65 to US$180 per square meter. Framed, polished, close-mesh, or heavy-duty products can cost US$120 to US$500 per square meter depending on the specification.
Is 316L channel grating more expensive than 304?
Yes. Comparable 316L stainless steel channel grating is commonly around 18 to 35 percent more expensive than 304 because 316L contains molybdenum and has a controlled low carbon content. It is often selected for welded grating used in marine, coastal, chemical, salt-processing, pharmaceutical, and hygienic environments.
What information is needed to quote channel grating?
An accurate factory quotation normally requires the total channel length, clear channel width, finished grating width, panel length, stainless steel grade, bearing bar size, bar spacing, manufacturing type, plain or serrated surface, support span, design load, frame details, surface finish, individual panel quantity, delivery destination, and trade term. A channel cross-section and panel layout provide the most reliable basis for pricing.
English English
Arabic
Vietnamese
German
French
